In this category you can find Serial / parallel ports, PCI or PCI Express cards for RS232 / 485/422. If you need a PCI card for your PC or a booster or converter up to 1 km, you can find it in this category. Serial port server, converter, amplifier, isolators, PCI cards and more. Feel free to call our sales department to inquire about a specific product.
Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed (Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration
2.4GHz Omni directional antenna - dipole
for pipe montage
N-female connector
1 meter RG58 Coax cable
1 pc. RSMA - Male included
Weight: 1.4KG
Length: 45 cm
Diameter: 35mm
Break out board with DB15 female connector.
1 x DB15 female (2 rows)
2 x 8 pole screw terminal block
Not in the house
MOXA, 1-port RS-232 USB to serial adapter.
Compatible with USB 2.0 and 12 Mbps USB data rate
921.6 Kbps maximum baud rate for super fast data transfer
Drivers are provided for Windows, WinCE and Linux
DB9 male. USB2.0 with 80cm cable
LEDs for displaying USB and TxD / RxD activity
15 KV ESD protection for all serial ports
OS support: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

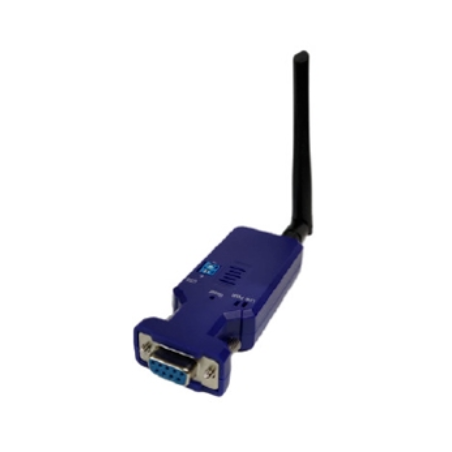

DB9 female connector
1200 to 921600 baud
Supply 5 to 24 volts via USB or screw terminals
Built-in WiFi antenna
USB adapter cable included
Få en COM-port på PC via USB porten
MOXA USB to RS232/422/485 converter.
Kompatibel med USB 2.0
Software selectable RS232, RS422, 4-wire RS485 and 2-wire RS485
Certified drivers for Windows, WinCE 5.0 and Linux
15 KV ESD protection
Supporting Win10
USB to 1 x RS422 / RS485, w./ screw terminal
Max speed up to 921.6 Kbit/s - RS422 / 485 port
Select port type from DIL switch and jumper
Default set to RS422
Supports Win7, 8/8.1, 10, 11, Server 2008 R2, Server 2012 R2, 2022
(WHQL Certified)

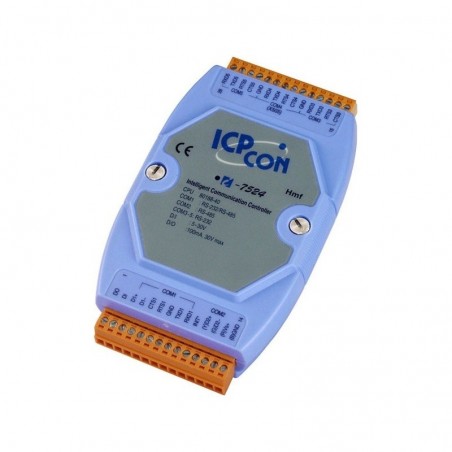

RS485 & nbsp; recoverable RS232 controller / converter
Link to 3 x RS232 units from 1 x RS485 bus
Baud speed 300 bit/s to 115,200 bit/s
10 V DC to + 30 V DC
Dual watchdog
256 KB SRAM buffer
1 x & nbsp; RS485 address per. serial interface
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting
Optoisolated RS-232 for RS485 converter
3kVDC isolation on RS232 from DC input
ESD protection for RS232 / 485
Baud rate 300 bit / s to 115,200 bit / s
Supports power inputs of +10 V DC to +30 V DC
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

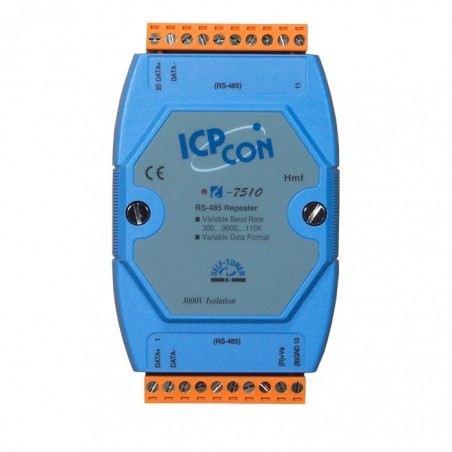

Optoisoleret RS-485 repeater
2 vejs 3000 VDC isolation
ESD-beskyttelse til RS-485
Baud-hastighed 300 bit/s til 115.200 bit/s
Understøtter effektindtag på +10 V DC til +30 V DC
Driftstemperatur: -25° til +75°C
Til DIN skinne montering

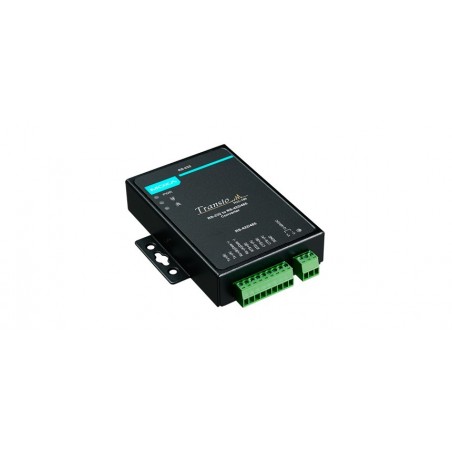

RS232-RS422/485 konverter
Hastighed: 230.4 kBit/s
RTS/CTS support
Til DIN og vægmontage
Plug-in terminal block til RS422/485

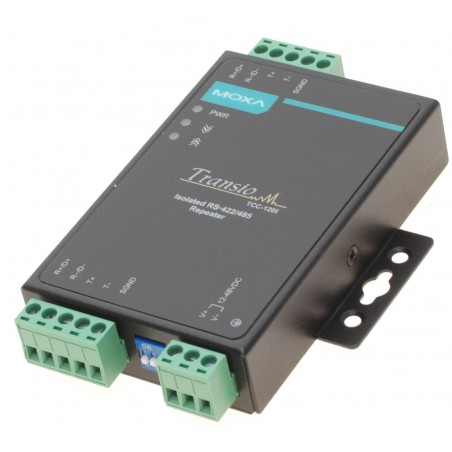

Industrial RS422/RS485 Serial Converter/Repeater with 2 KV Isolation, MOXA TCC-120i
Boost serial signal to extend transmission distance
Boost RS422 or RS485 signal, or convert RS422 to RS485
2 KV optical isolation protection
15 KV serial ESD protection
Wall or DIN-rail mounting
Terminal block for easy wiring
Power input from terminal block
DIP switch setting for built-in terminator (120 ohms)
Get a RS485 / RS422 port on the PC via the USB port
Software for choosing a fixed COM port - very useful
Compatible with USB 2.0
12 Mbps USB data rate
921.6 kbps maximum baud rate
Driver for Windows, WinCE, and Linux
Mini DB9 male for terminal block adapter
LED for indication of USB and TxD / RxD activity
15 kV ESD protection for 2 kV optical isolation
Compliance: USB 1.0/1.1 compliant, USB 2.0 compatible
12 Mbps USB data rate
Baud rate: 50 bps to 921.6 Kbps
Drivers provided for Windows, WinCE, and Linux
Serial Standards: RS-232/422/485 Connector: DB9 male
LEDs for indicating USB and TxD/RxD activity
Optical Isolation: 2 KV
OS support: See in Description
Windows 11 support
Linux Support : Linus 2.4.x, 2.6.x, 3.x
USB-32COM-RM - 32-Port RS-232 USB-to-Serial Adapter, Metal Case, Rack-Mountable.
Max. transfer rate 115 kb/s
transferred signals full RS232 - RxD, TxD, RTS, CTS, DSR, DTR, DCD, RI
optical indication RxD, TxD
max. line length 15 m
connector RS232 - PC side D - SUB 25 pin F
connector RS232 - DEVICE D - SUB 25 pin M
connector power supply 1,3mm plug
optical separation - optocouplers 2,5 kV
galvanic separation - DC/DC converter 1 kV
overvoltage (soft) protection - supply 600W 10/1000us
power supply +9 to 30V DC
input supply max. 1,2 W
dimension 91 x22 x 54 mm
With CNV232-485PW + you get an RS485 or RS422 port on the PC
Selecting RS422 or RS485 with DIL switches on the device
Super compact with DB9 female and screw terminals
Can be powered by external voltage from 9 - 12VDC / 500mA
Operating temperature: -40 - + 85 ° C

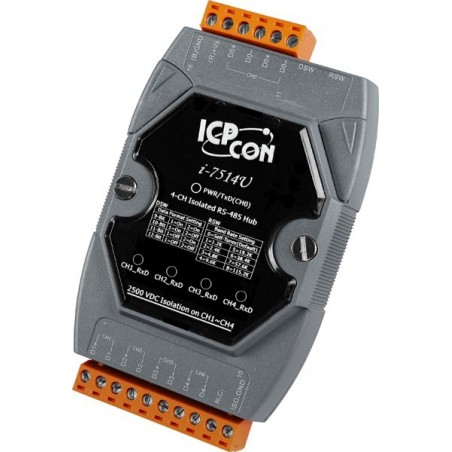

Repeater and splits an RS485 signal into 4 branches
RS485 master on input polls RS485 slaves with ID
Only asked RS485 slave responds only to master
No RS485 slave can poll the RS485 bus
2-wire RS485 - semi-duplex
Extend the star bus with more M485-REP4-I
Supply: 10 - +30VDC
Temp: -25 - +75°C
For DIN-Rail mounting
Repeater and splitter of an RS485 signal
Up to 3 branches, as a star connection
It is very IMPORTANT to avoid bus reflections.
Use M485-REP3-I if the RS485 bus is to be split out for DIN assembly

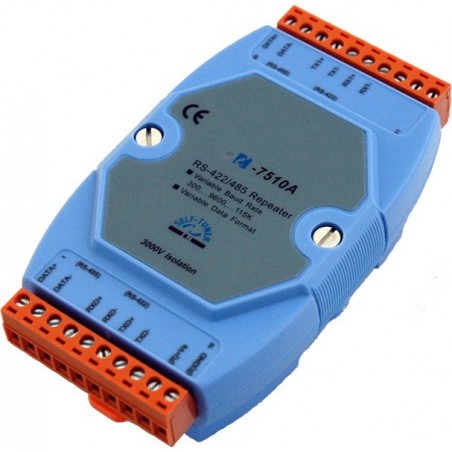

Optoisolerated RS422 / RS485 Repeater
3000vdc Glavanic isolation
2 threads RS485 is half duplex (switch-talk)
4 threads RS485 / RS422 A full duplex (both ways at the same time)
Translator from RS422 (4-wire) for RS485 (2-wire), semiduplex
automatic directional change and baud rate.
