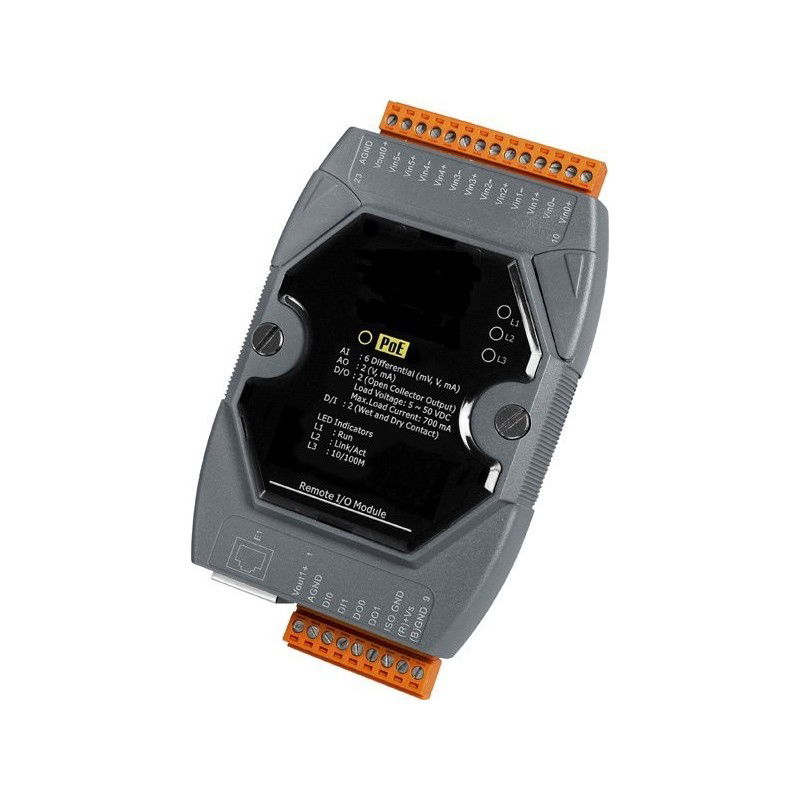

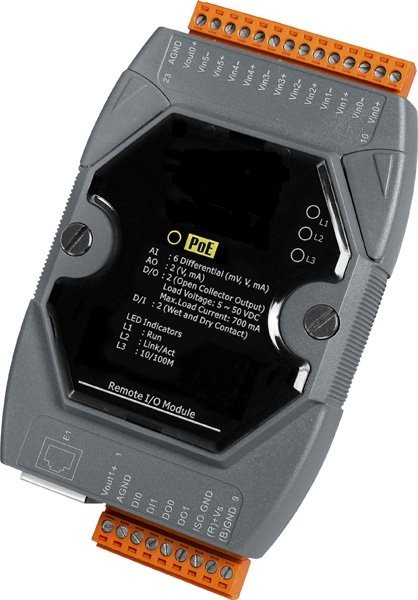

L-CON modul med digitale udgange

Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I/O module, counter, timer, email
Modbus/TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
8 x Power relay output, COM NO
Relay switch: 30VDC, 250VAC 5A, only resistive load
Supply voltage: PoE or 12 - 48VDC / 5.5Watt

2,555.00 DKK
Tax excluded
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

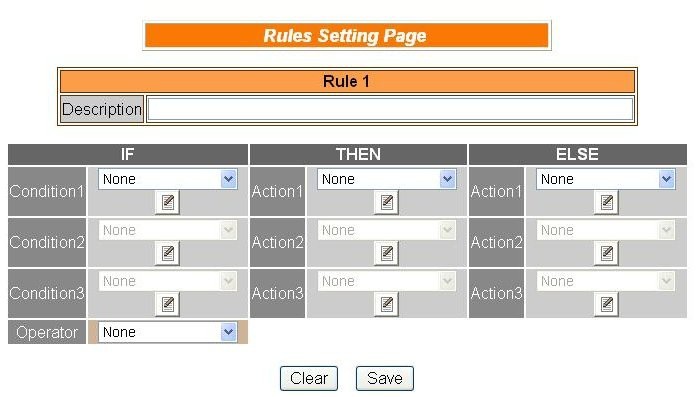

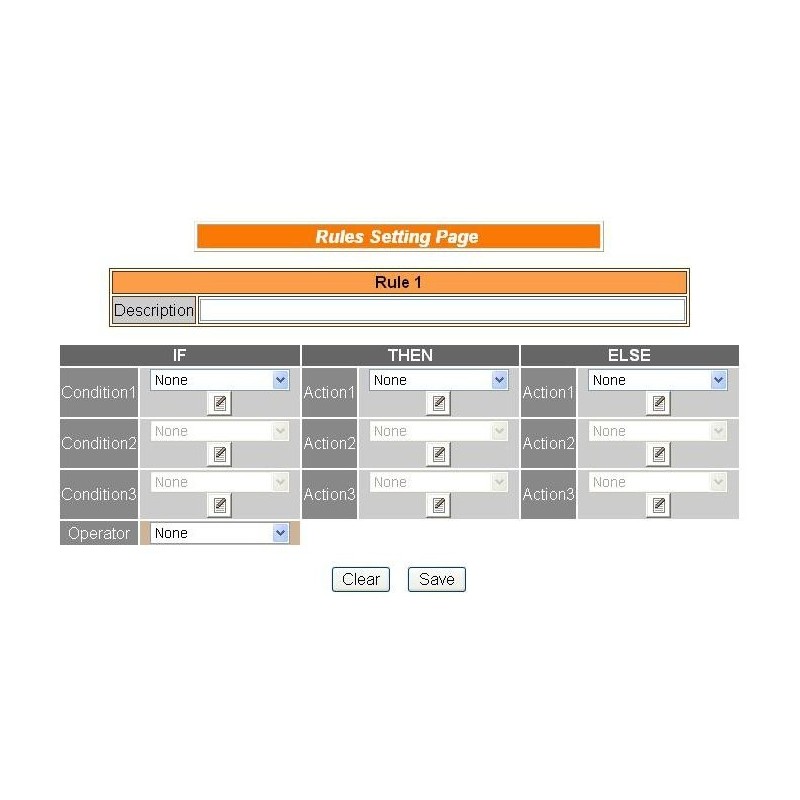

WISE (Web Inside, Smart Engine) is a product line developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and user-friendly features minimizes the learning curve, shorten time to market and reduces the effort and costs dramatically for system development.

L-CON8R follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification . It allows to receive power from the PoE-enabled network via Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency, which simplifies system design, saves space, reduces cables and eliminates the need for dedicated electrical outlets. Meanwhile, L-CON8R in case of an environment without PoE still be able to receive power from the auxiliary power sources like AC adapters or battery, etc.

This module L-CON8R supports Modbus / TCP protocol to make seamless integration with SCADA software available. It has 8-channel power relay outputs. Each power relay contact support classification as 5 A @ 250 VAC or 5 VDC 30 A @.

123 x 72 x 35 mm
- 25°C – 75°C
12 - 48 VDC via klemrække eller via PoE
Optisk 2500 VRMS til analoge og digitale ind- og udgange i forhold til strømforsyningen. Magnetisk 1500 V fra netværksinterface til strømforsyningen
10/100 Mbit m/RJ45 hunstik
Understøtter Modbus/TCP
8 stk. relæudgange type A (slutte) AC: 250 V og 5 A DC: 30 V og 5 A Lukketid er 6 ms og åbnetid er 3 ms
