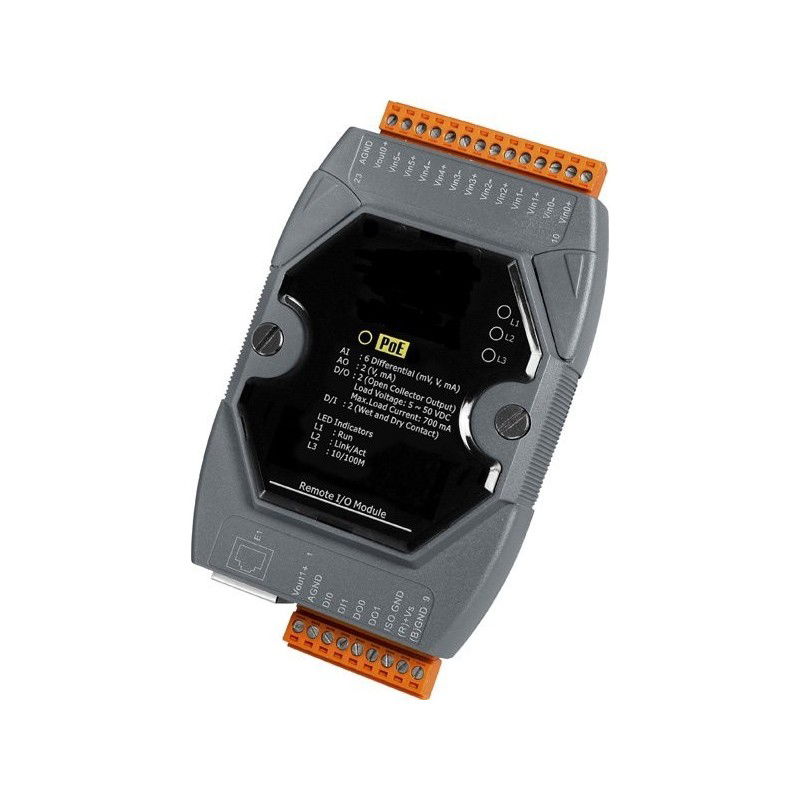

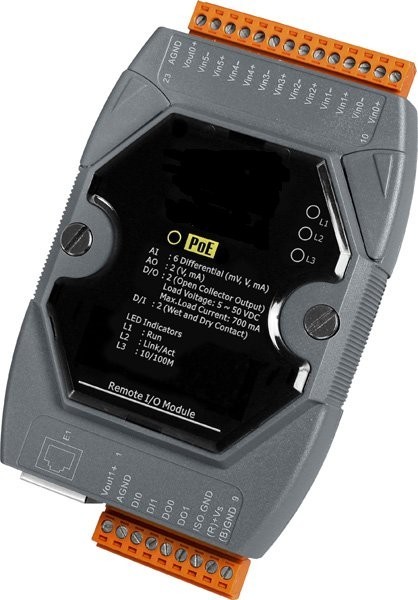

L-CON modul med digitale ind- og udgange

1 x RJ45 - 10/100 Base-TX Ethernet
Can be powered from a PoE
Integrated Web Server Setup
Logical functions with IF-THEN-ELSE
Rules, I / O, CGI counter, Timer, etc.
Email setup via Web browser
Modbus / TCP Protocol to 6 x Digital input (Wet Contact - external voltage for High)
Digital input has 16 bits counter
6 x Relay Power Output: 5A at 30VDC / 250VAC
Power over Ethernet (PoE) or an external DC power supply
Supply voltage: PoE or 12 - 48VDC / 5Watt
temperature range -25 ° C ~ + 75 DEG C

L-CON6I6R
2,011.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

WISE (Web Inside, Smart Engine) is a product line developed by ICPDAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and user-friendly features minimizes the learning curve, shorten time to market and reduces the effort and costs dramatically for system development.

L-CON6I6R follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification . It allows to receive power from the PoE-enabled network via Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency, which simplifies system design, saves space, reduces cables and eliminates the need for dedicated electrical outlets. Meanwhile, L-CON6I6R in case of an environment without PoE still be able to receive power from the auxiliary power sources like AC adapters or battery, etc.

This module L-CON6I6R supports Modbus / TCP protocol to make seamless integration with SCADA software available. 6 has the power relay outputs and 6 digital wet isolated contact inputs. Each power relay supports contact rating as 5A @ 250 VAC or 5 A @ 30 VDC, and each digital input channel supports counter input.

Another Modbus / TCP device on the network can enter values ​​in one of these records and these data can also be used in a rule. When using multiple L-CON modules can inputs on a module included in a rule in another module.

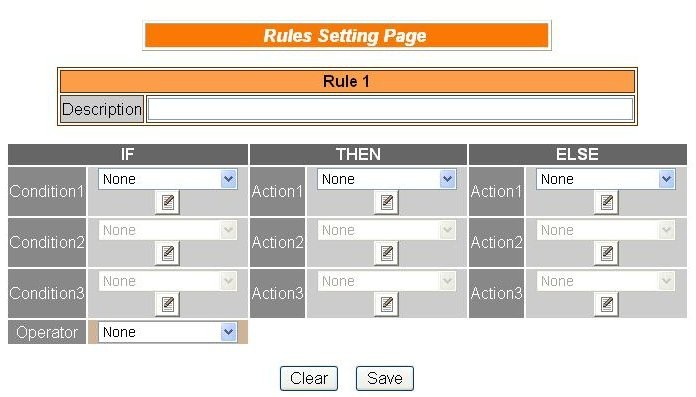

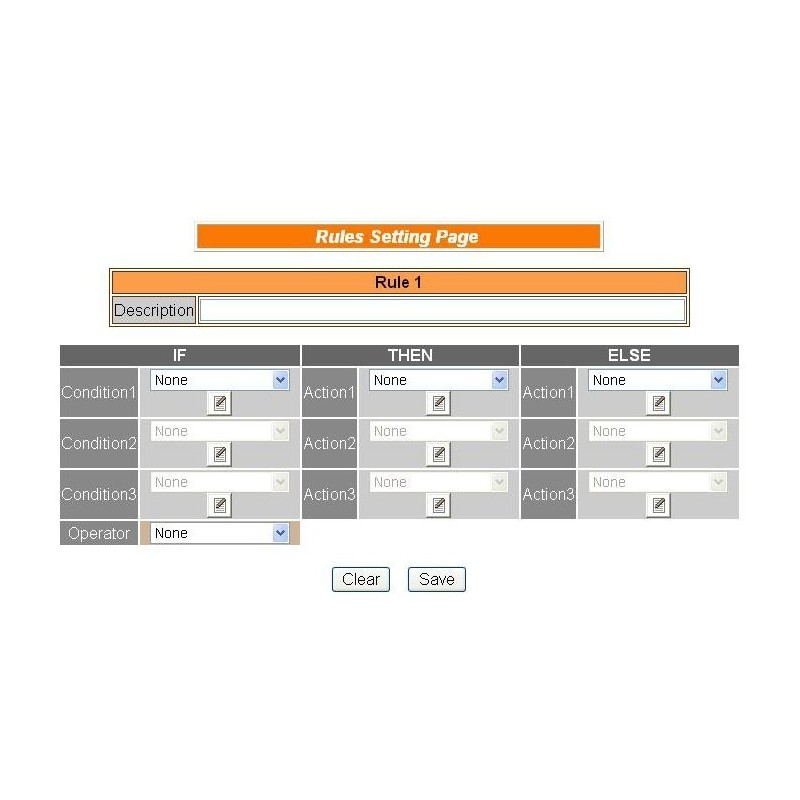

Rules set up in a web browser. Up to 12 different email messages can be configured and each can have up to five recipients.

Digitale indgange
6 stk. Kontakt indgange Logisk 0: maks. 4 V Logisk 1: 10 – 50V Med 16 bit tæller funktion maks. 50 Hz
Digitale udgange
6 stk. relæudgange type A (slutte) AC: 250 V og 5 A DC: 30 V og 5 A Skiftetider Lukke/åben 6 ms / 3 ms
Dimensioner
123 x 72 x 35 mm
Driftstemperatur
- 25°C – 75°C
Forsyning
12 - 48 VDC via klemrække eller via PoE
Isolation
Optisk 2500 VRMS til analoge og digitale ind- og udgange i forhold til strømforsyningen. Magnetisk 1500 V fra netværksinterface til strømforsyningen
Netværk
10/100 Mbit m/RJ45 hunstik
Protokoller
Understøtter Modbus/TCP
Strømforbrug
4.8 W
