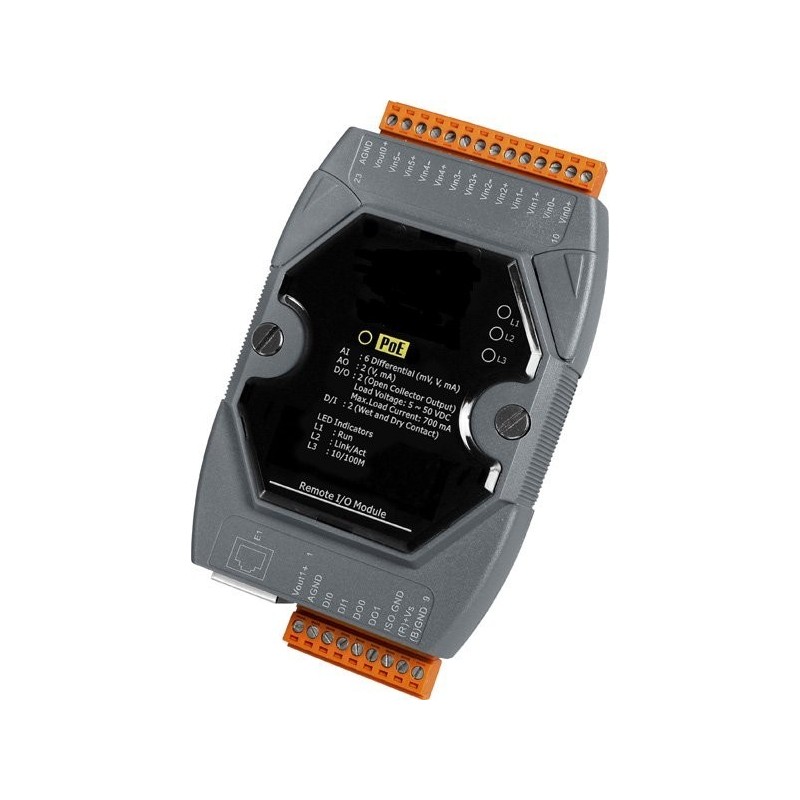

L-CON controller with 6 x Analog Input, 2 x Analog Output, 2 x Digital Input, 2 x Digital Output, 1 x RJ45, PoE

Intelligent Controller with Webserver

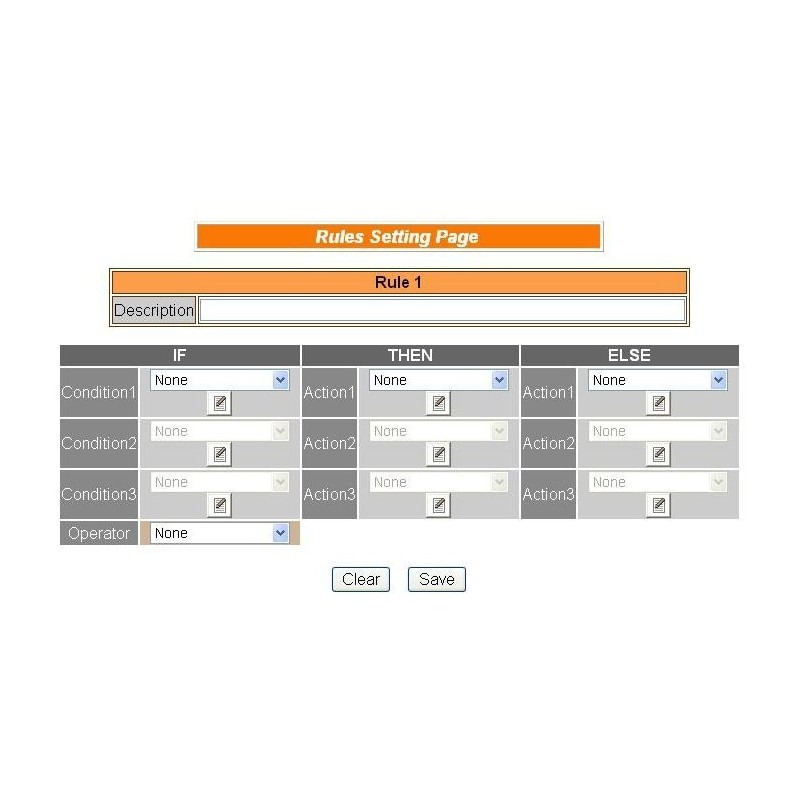

Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet to 6 x Analog input: 0 - +/- 10V, 0 - 20mA
A / L solution: 16bit
2 x Analog output: 0 - +/- 10V, 0 - 20mA
A / O resolution: 12bit
2 x Digital outputs: 0 - + 50VDC / 700mA Open Collector
2 x Digital input: Dry / Wet: 0 - + 30VDC < br> D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5Watt

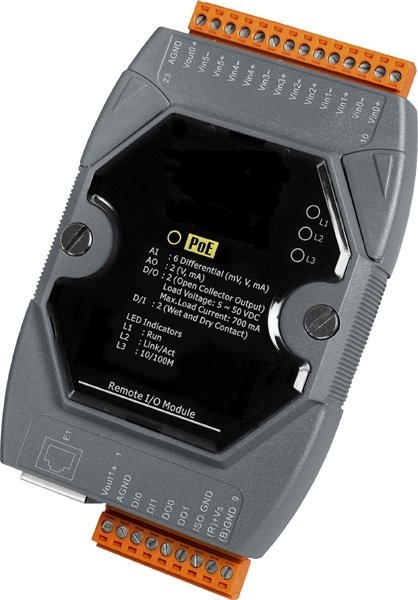

L-CON12W
3,104.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

WISE (Web Inside, Smart Engine) is a product line developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and user-friendly features minimizes the learning curve, shorten time to market and reduces the effort and costs dramatically for system development.

L-CON12W follows the IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification . It allows to receive power from the PoE-enabled network via Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency, which simplifies system design, saves space, reduces cables and eliminates the need for dedicated electrical outlets. Meanwhile, L-CON12W in the case of an environment without PoE still be able to receive power from the auxiliary power sources like AC adapters or battery, etc.

This multifunction module L-CON12W supports Modbus / TCP protocol to make seamless integration with SCADA software available. It has a 6-channel analog inputs, 2-channel analog outputs 2-channel digital inputs and 2-channel digital outputs. Each analog input channel provides 240 Vrms high overvoltage protection.

Analog indgang
6 stk. differentialindgange: ±500 mV, ±1 V, ±5 V, ±10 V, 0 - 20mA, 4 – 20mA og ±20 mA. Indgangsimpedans 2 MΩ ved spænding og 125 Ω ved strøm. Opløsning 16 bit ± 0,1 % præcision
Analog udgang
2 stk. ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V samt ±20 mA udgangs impedans 500 Ω. Opløsning 12 bit ± 0,1 % præcision
Digitale indgange
2 stk. Kan fungere på 2 måder: Som ”Dry Contact”; indgangen skifter ved at den lægges til stel eller ”Wet Contact”; Logisk 0: maks. 1 V Logisk 1: 3,5 – 30V Med 16 bit tællerfunktion maks. 50 Hz
Digitale udgange
2 stk. open collector 5 – 50 V 700mA
Dimensioner
123 x 72 x 35 mm
Driftstemperatur
- 25°C – 75°C
Forsyning
12 - 48 VDC via klemrække eller via PoE
Isolation
Optisk 2500 VRMS til analoge og digitale ind- og udgange i forhold til strømforsyningen. Magnetisk 1500 V fra netværksinterface til strømforsyningen
Netværk
10/100 Mbit m/RJ45 hunstik
Protokoller
Understøtter Modbus/TCP
