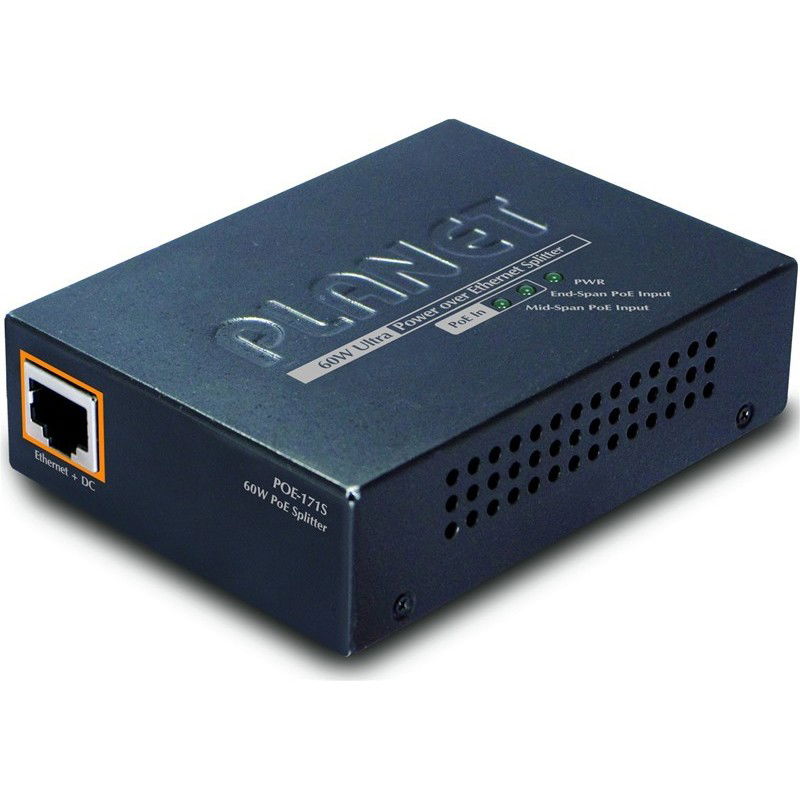

PLANET 1 port PoE-171S splitterx50 Watt. Gigabit. Output voltage 12VDC,19VDC,
PLANET 1 port PoE-171S splitterx50 Watt. Gigabit. Output voltage 12VDC,19VDC,

1 Port Poe Ultra splitter up to 50 watts. Gigabit. Output voltage 12VDC or 19VDC or 24VDC.

IEEE 802.3at / of PoE standard compliant
Compatible with all IEEE 802.3at/af PoE devices
56VDC 50pwatt PoE power
Splits 56V DC power over RJ-45 to 12VDC or 19VDC or 24VDC
External power supply up to 100 meters


600.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number ETH-POE50SPLIT
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0 – 50 °C. Luftfugtighed: 5 – 95 % ikke-kondenserende
Netværk 10/100/1000 Mbit Ethernet (10Base-T, 100Base-TX og 1000Base-T)
Standarder Understøtter PoE standarderne IEEE802.3af og IEEE802.3at
Weight 300 g
Dimensioner 26 x 70 x 95 mm

PoE splitter op til 50 W.

Forsyn "ikke-PoE" udstyr via PoE. 12, 19 eller 24 volt.

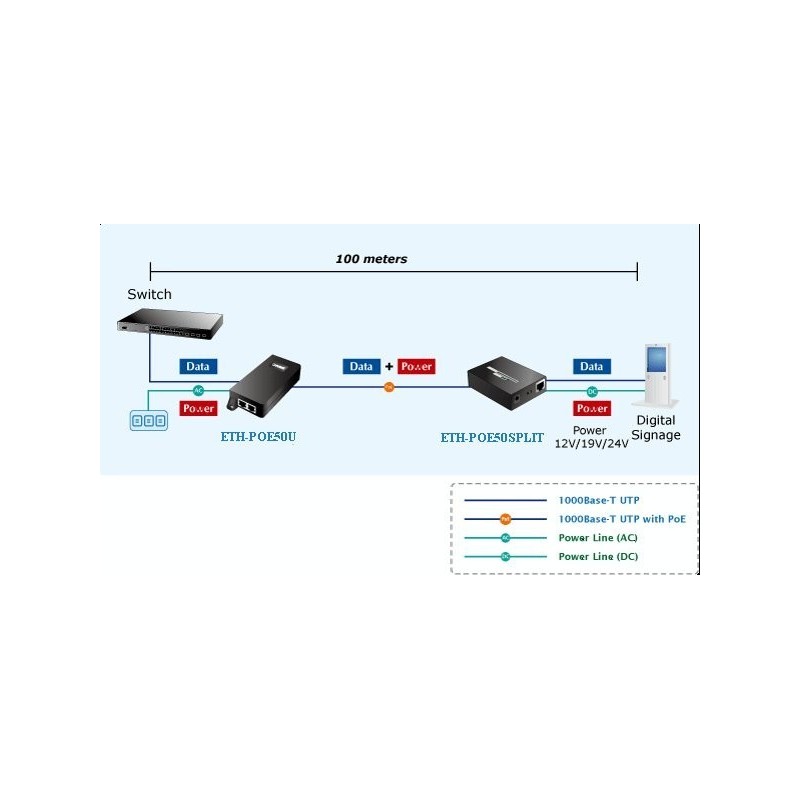

ETH-POE50SPLIT er en PoE splitter, der kan dele PoE-signalet til netværkstrafik og spænding. Dermed kan enheder der ikke understøtter PoE-standarden forsynes gennem netværkskablet.

ETH-POE50SPLIT kan levere op til 50 W ved en spænding på 12, 19 eller 24 VDC. For at kunne benytte 50 W kræver det at ETH-POE50SPLIT er forbundet til en PoE switch eller injector, der understøtter PoE-standarden IEEE802.3at. Benyt evt. ETH-POE50U.
