5-Port 10/100/1000BASE-T Gigabit Ethernet Unmanaged Switch - Bandwidth 10Gbps.

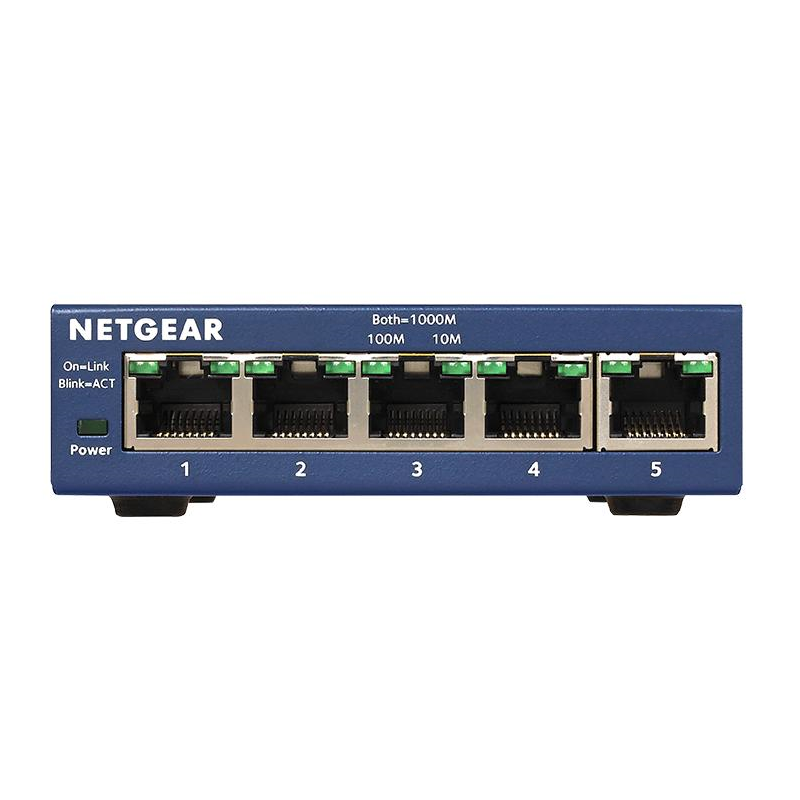

5-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Plug-and-play operation without software installation.
IEEE 802.1p and DSCP-based QoS for prioritizing critical applications.
10 Gbps bandwidth and jumbo frame support up to 9K.
Complies with the IEEE 802.3az Energy Efficient Ethernet standard and has a silent, fanless design.
Metal housing with MTBF of 52 years.
Dimensions: 94 x 100 x 27 mm
Power supply: 12V DC, 0.5A (6W)
$51.24
Excl. VAT
Quantity
Physically in stock
Product number ESW5G
Specifications
Dimensioner | 94 x 100 x 27 mm |
---|---|
Luftfugtighed | 0 - 90% |
Strømforsyning | 12V DC, 0.5A (6W) |
Weight | 0.26kg |
Operating Temperature | 0° to 50°C |
Bandwidth | 10 Gbps. |
A robust and efficient 5-port Gigabit Ethernet unmanaged switch, designed to deliver high performance and reliable network connectivity for small to medium-sized business environments.
Key Features
Offers a plug-and-play setup, which means there is no need for software installation or configuration. Simply connect your devices, and the switch will automatically adjust to network speed and cabling type.
Seamlessly integrates with existing network hardware, supporting 10/100/1000 Mbps speeds.
Supports IEEE 802.1p and DSCP-based QoS, ensuring that critical applications such as voice and video are prioritized over other traffic. This enhances the performance of latency-sensitive services.
Operates at a non-blocking rate, which means it delivers true Gigabit speed without compromising performance.
Supports a bandwidth of 10 Gbps.
Can handle jumbo frames up to 9K packet size, improving network performance by reducing the number of frames that need to be processed.
Complies with the IEEE 802.3az standard, reducing power consumption when there is low traffic or no activity on the ports.
Fanless design makes it ideal for noise-sensitive environments, such as offices and conference rooms.
Housed in a durable metal case, designed for long-lasting use.
Boasts an impressive Mean Time Between Failures (MTBF) of approximately 52 years, underscoring its reliability.
Certified under CB, CCC, CE LVD, EN 60950-1.
Compliant with Class B (CE, FCC Part 15, ICES-003, VCCI, RCM, CCC).
The 5-Port Gigabit Ethernet Unmanaged Switch is an excellent choice for expanding network capabilities with minimal setup and configuration. Its robust performance, energy efficiency, and reliability make it ideal for small offices, home offices, and other environments requiring dependable and silent network solutions. Whether you need to connect computers, printers, or network storage devices, ensures seamless, high-speed connectivity.
Andre produkter i samme kategori:
4 Ports 10/100 / 1000Mbit RJ45 + 2 Ports 100 / 1000Mbit SFP Slot, Managed Switch, 12 - 48VDC and 24Vac
Real Ring, Redundant Ring of critical network
IEEE 1588 Time Protocol, supports MEF service and synchronous Ethernet
Supports MODBUS TCP protocol
Supports IGMP Snooping to 4 x 10/100 / 1000Mbps RJ45 ports
2 x 100 / 1000Mbit SFP ports
12 - 48VDC, redundant input
24VAC supply voltage is also possible
IP30 metal housing with DIN bracket
temperature range from -40 to + 75 ° C
$520.16
Item Number: ESW4SFP2

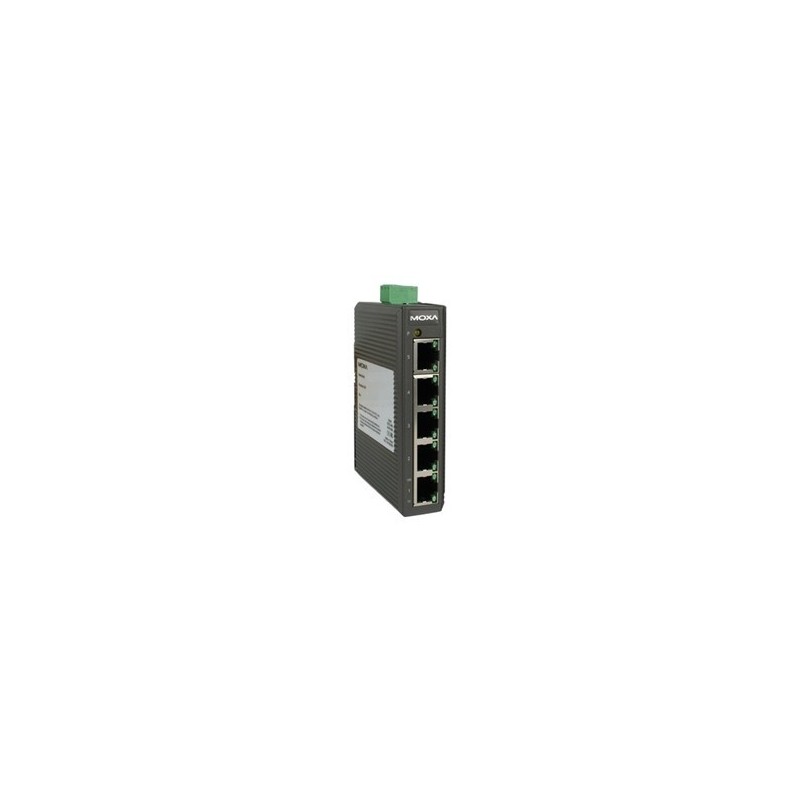

5 Port Unmanaged Industrial Switch. 5 x 10/100Mbit. -25 - +70°C. DIN rail mounting, 18-32VDC
