300 Watt ATX power supply 1 Unit industrial PCs

Input voltage: 90-264Vac
Input frequency: 47-63Hz
Input current: 115Vac @ 6A, 230Vac @ 3A
80 Plus Bronze
Internal 4 cm fan with IEC 62368 standard vents opening
Short circuit protection on all outputs
Working temperature: 0°C to 50°C
Storage temperature: -20°C to + 80°C
Efficiency: 80 Plus Bronze Working humidity: 85% RH non-condensing
Storage humidity: 95% RH non-condensing
CE, FC, Tüv, E190414
Dimension (L x W x H): 190 x 100 x 40.5 (mm)

PS300ATX1U
1,500.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This PSU is a standard 1U form factor switching power supply. The power supply comes to offer the total power capacity up to 300 Watts, which makes it to be perfectly used in an industrial environment. In addition, the power supply is ideally the best choice for  IPC controller, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide
-5V on request

Dimensioner

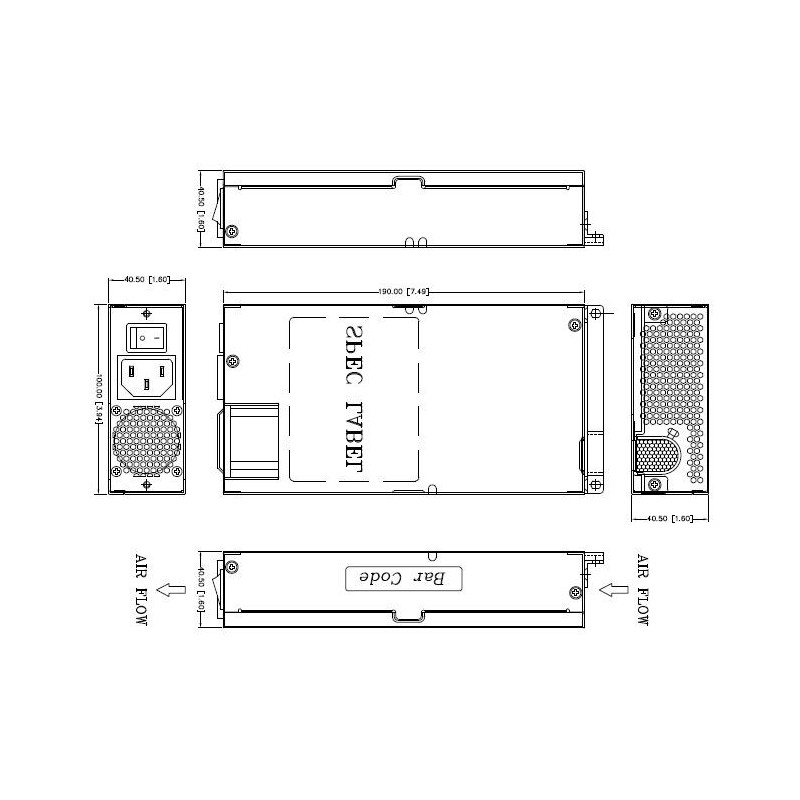

(L x W x H): 190 x 100 x 40.5 (mm) Environment 7.49 x 3.94 x 1.6 (inch)
Indgangsspænding

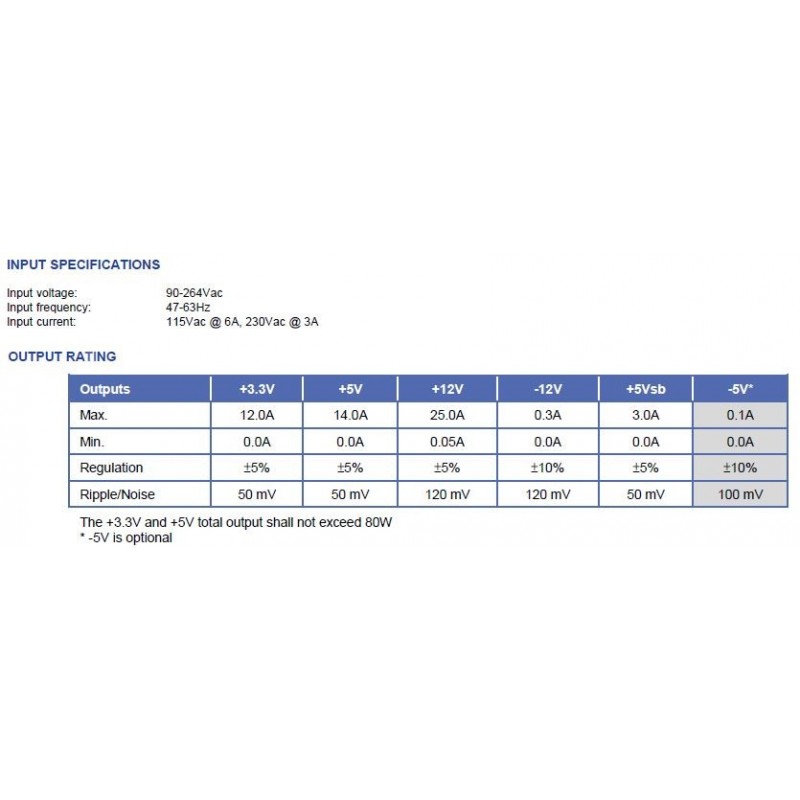

90-264Vac Input frequency: 47-63Hz Input current: 115Vac @ 6A, 230Vac @ 3A
Luftfugtighed
Working: 85% RH non-condensing Storage: 95% RH non-condensing
Maks. effekt
300 W
MTBF
100,000 Hours @ Typical
Udgangseffekt
+3.3v: 12A; +5v: 14A; +12V: 25A; -12V: 0.3A: +5Vsb: 3A. the +3.3V and +5V max total (80W). -5V on request
Operating Temperature
0°C to 50°C
