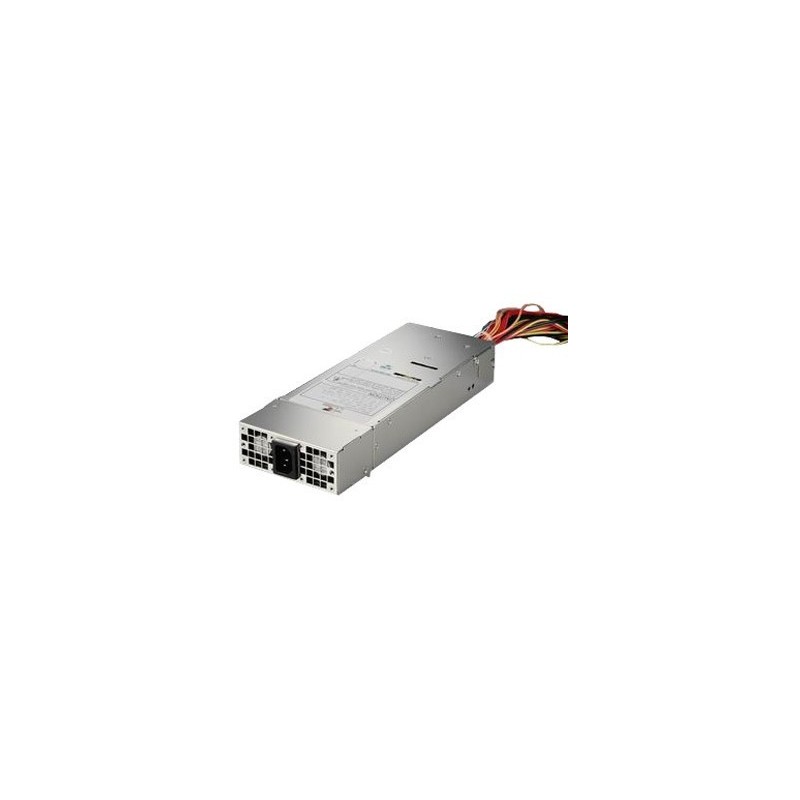

800 Watts 1U power supply

800W PSU
1 unit, 1U single power
90 ~ 264 VAC Full-Range
Output: + 5V and + 3.3V
47 ~ 63 Hz
0 ℃ -50 ℃ < br> Core filter EMI FCC Class B, CISPR22 CLASS B
Dimensions: 41 x W H 100 x D 275

PS800W1UNIT
3,600.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question


Hold up TimeE: 16 ms minimum at 115AC Input; 20ms minimum at 230 AC Input
Efficiency: Typical >80% at 115V Full load
PFC can reach the target of 95% at 115V/230VAC, Full load
Power good signal: On delay 100 ms to 500 ms, Off delay 1 ms
Over power protection: 110%~160%
Over voltage protection: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
Over current protection: +3.3V→27.5~40A, +5V→27.5~40A, +12V→52.8~72A (800W-62.7~87A)
Short circuit protection: +5V, +3.3V, +12V, -12V, +5VSB
Safety: To meet UL, CUL, TUV, CCC
EMI Noise filter: FCC CLASS B, CISPR22 CLASS B
3.5MA MAX. AT NOMINAL VOLTAGE VAC

Andet
Hold up TimeE: 16 ms minimum at 115AC Input; 20ms minimum at 230 AC Input
Dimensioner
275.00x100.00x40.50 (mm)
Driftstemperatur
Operating 0℃ - 50℃, Storage -20℃ - 80℃
Effekt
80% at 115V Full load
