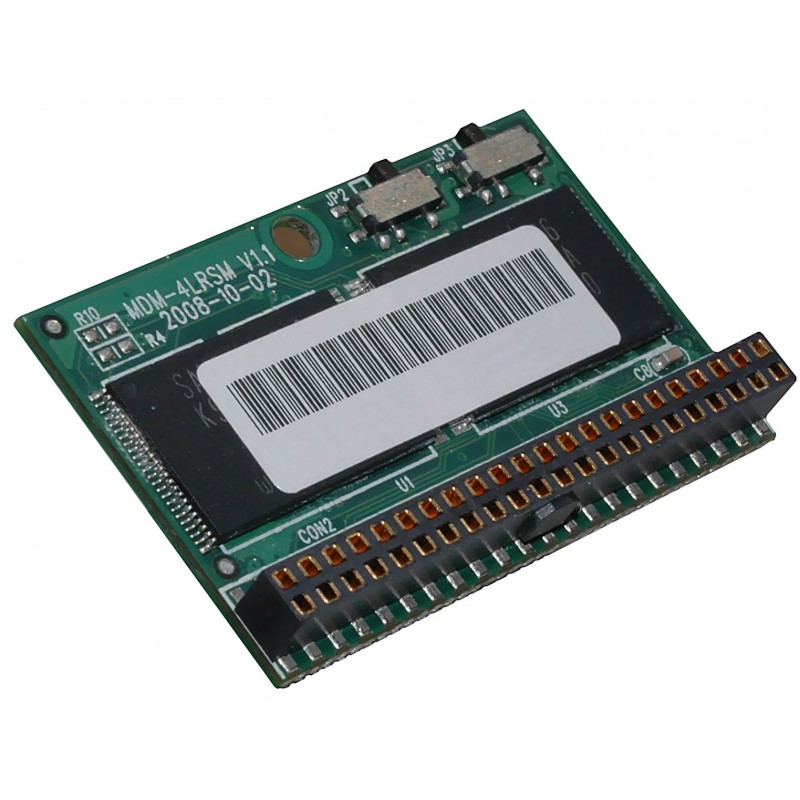

32GB DOM, 2½", 44pin, horizontal, right
32 GB, 44, Horizontal right, 32.6 mm,

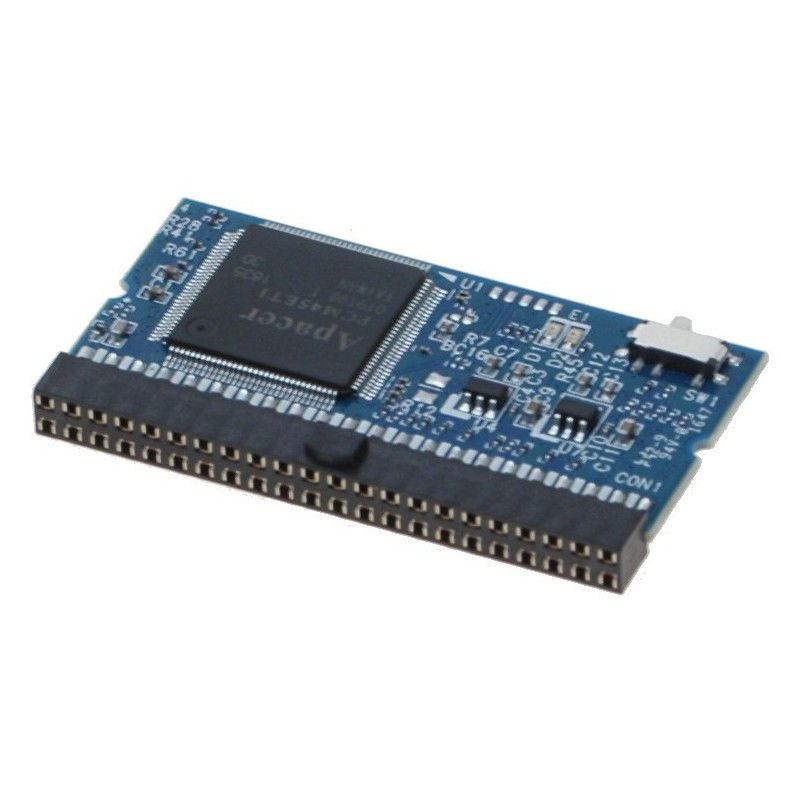

Disk on module 64 GB
Standard 44-pin IDE female connector
Interface Standard ATA/IDE
ATA Secure Erase and SMART function
72-bit per 1K bytes BCH ECC
Halogen free
3.3 V ± 5% & 5 V ± 5%
Capacity of 64 MB on the standard IDE interface appears as normal. hard drive in BIOS. Built-in ECC error control and shockproof.
Can be set to master or slave with a jumper. Supported by DOS, Windows 3.1,9x, NT, ME, 2000, XP, CE, Linux, VxWorks, p SOS, OS2, Unix and QNX. The modules with 44-pin connectors are for 2½” IDE interface connectors.
32 GB, 44, Horizontal right, 32.6 mm,

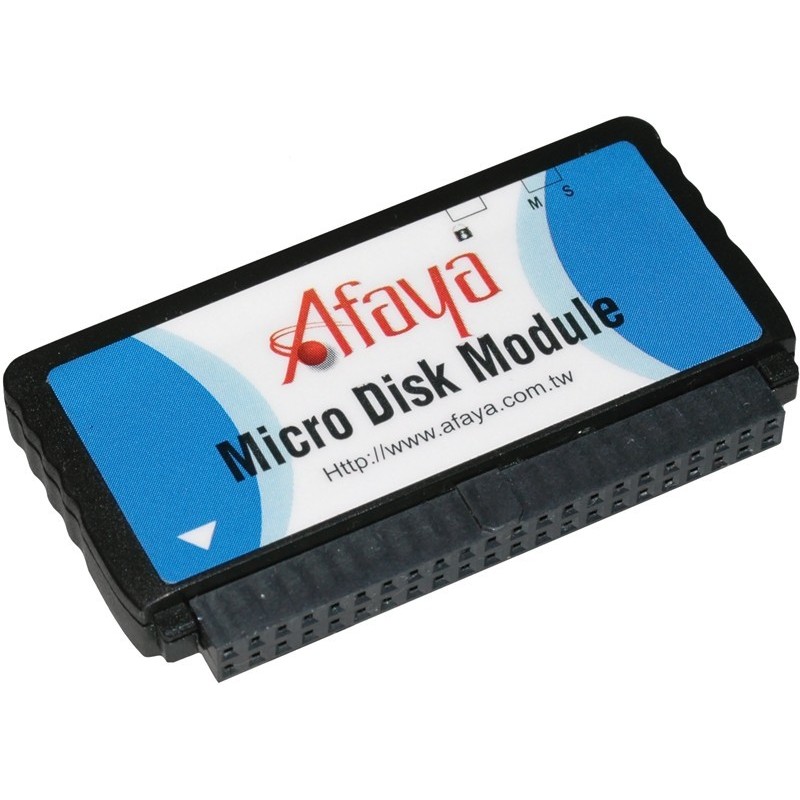

16 GB, 44, Vertical, 27.5 mm, MLC *)

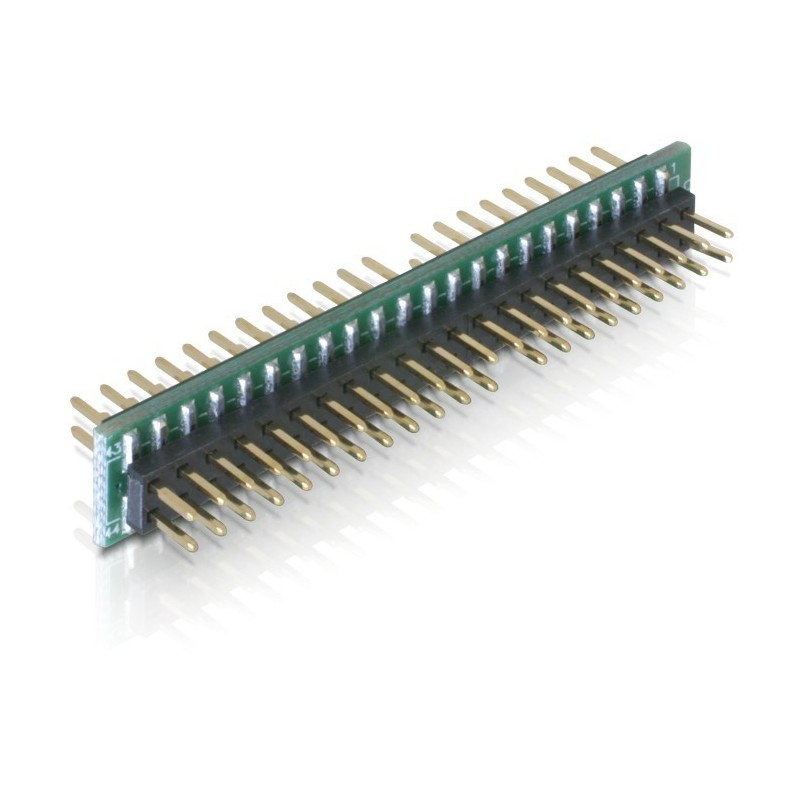

Used as an intermediate link between flat cable and DOM (both have female connectors)
44 pin IDC 2.5" male to male adapter

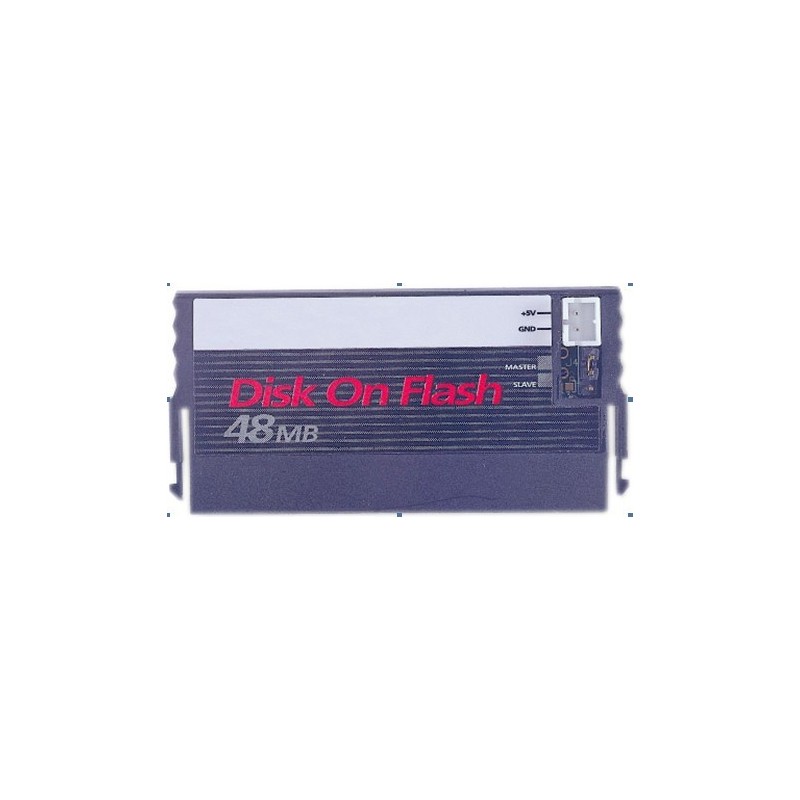

DiskOnFlash modules for 2½” IDE interface
Hard disk for direct connection on the IDE interface. No drivers required.
