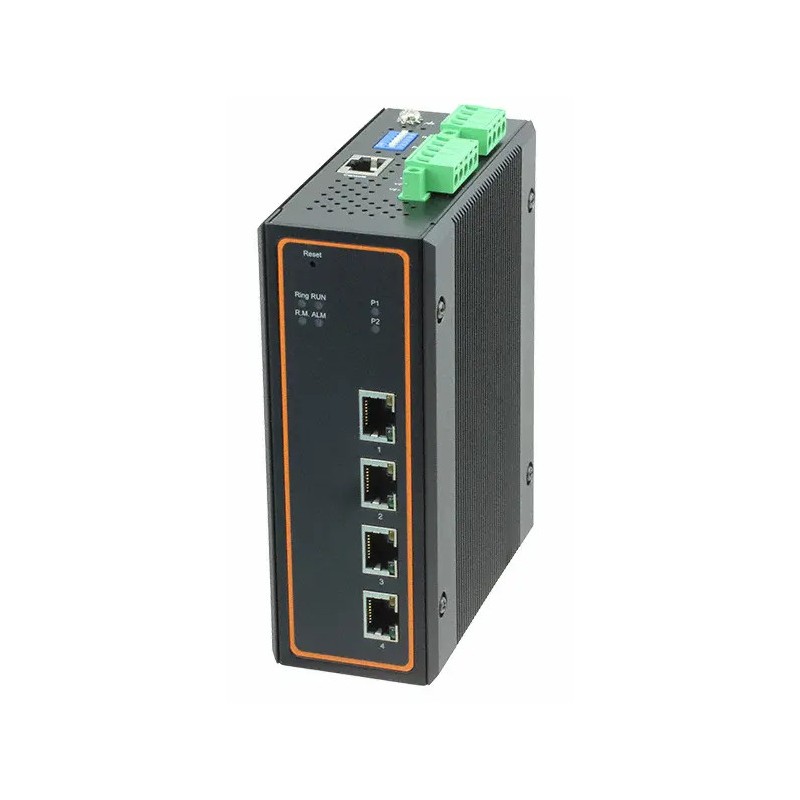

4 ports Gigabit Ethernet PoE switch 4 x 10/100 / 1000Mbit RJ45, DIN - Managed, -20- + 70 ° C

Industrial 4 Port Gigabit Ethernet PoE Switch
4 x Copper Ports - 10/100 / 1000Mbit RJ45
Managed Switch
IP30 Cabinet
DIN Rail and Wall Mounting
Supply: 45-57VDC

Operating Temp. -20- 70 ° C

$742.54
Excl. VAT
Quantity
On the way in
Product number ESW4POE-A
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Dimensioner 54 x 113 x 145 mm (W x H x D)
DIP Switch DIP Switches Ring Control and Profinet Setting
Driftstemperatur Operating Temperature Storage Temperature Ambient Relative Humidity -20°C~70°C (-4°F~158°F) -40°C~85°C (-40°F~185°F) 5%~95%, 55°C (Non-condensing)
Forsyning 45-57VDC
Interface RJ45: Up to 4 x 10/100/1000BASE-T(X) auto negotiation speed Fiber:Up to 4 1000BASE-X SFP slot Console: RS232 (RJ45 connector) Relay Output 2 relay outputs with current carrying capacity of 1A @ 24 VDC
IP-Tæthed IP30 aluminum housing
LED LED indicators: PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Montering DIN-Rail , Wall mount (optional kit)

4-port Gigabit Ethernet PoE switch

PoE support makes this switch especially suited for connecting surveillance cameras, networking equipment and VoIP phones (for internet telephony) - without a separate power supply for each device.

Standards: IEEE 802.3af / 802.3at for Power-over-Ethernet IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE -T (X) 1000BASE-IEEE 802.3x for IEEE 802.3z for IEEE 802.3d for IEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q / p for VLAN Tagging and Class of Service IEEE 8021x for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3az for Energy Efficient Ethernet

Protocols: IPv4, IPv6, IGMPv1 / v2 / v3, GARP, GMRP, GVRP, SNMPv1 / v2c / v3, SNMP Inform, ICMP, Telnet, SSH, DHCP Server / Relay / Client, DHCP Option 66/67/82, BootP, RARP, TFTP, NTP Server / Client, SNTP, SMTP , SMTP (Gmail ), RMON, HTTP, HTTPS, Syslog, MRP (Client), LLDP, IEEE 1588 PTP V1 / V2, IEEE 1588 Hardware Transparent Clock, 802.1x, EAP, RADIUS, TACACS +, Mirror port, QoS, ACL, Serial Console, U -Ring, STP, RSTP, MSTP, Redundancy Compatible Ring
