4 port KVM omskfiter DVI-D - USB - Hot Key -USB HUB sharing between PCs
4 port KVM omskfiter DVI-D - USB - Hot Key -USB HUB sharing between PCs
Previous
Next
4 port KVM omskfiter DVI-D - USB - Hot Key -USB HUB sharing between PCs
4 port KVM omskfiter DVI-D - USB - Hot Key -USB HUB sharing between PCs

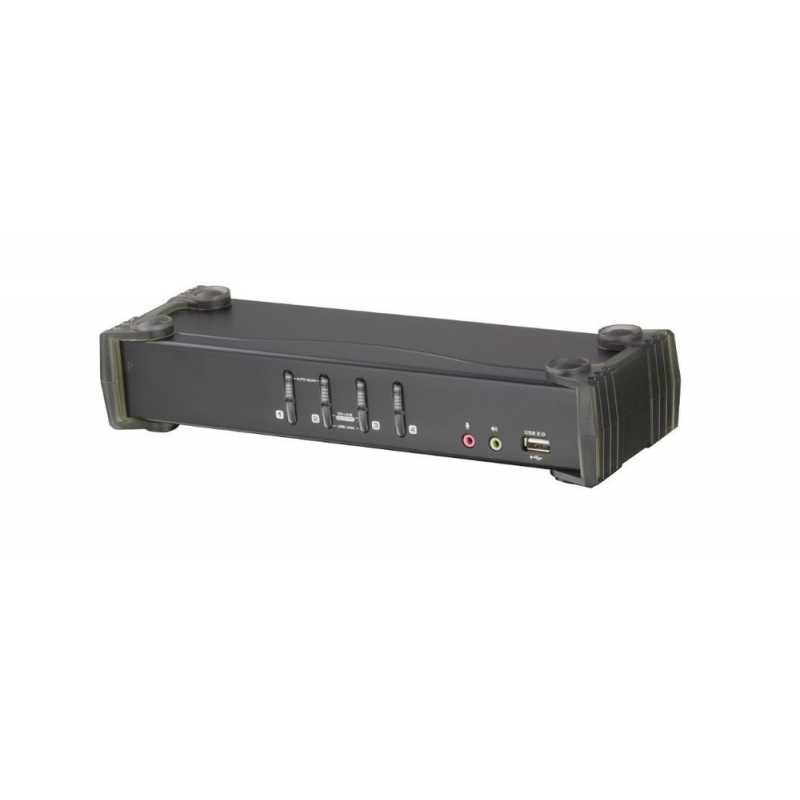

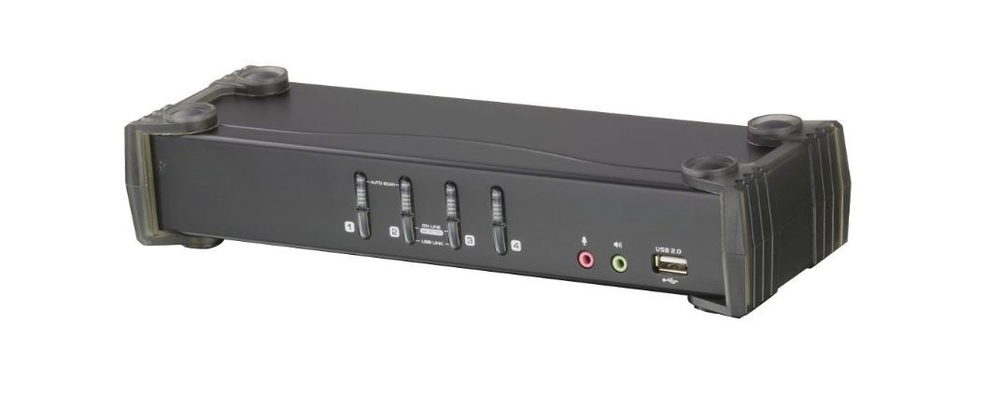

4-port KVM switch with DVI-D, audio and USB

4 port KVM switch, DVI-D, USB
2 port USB 2.0 HUB
Audio is transferred
1920x1200 60Hz DDC2B
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
EDIT
Cable purchased separately - several lengths
Hot-key / push buttons on the front
5.3V / 10.7W

2,604.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number KVM4-DVI-U-R
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Afstand Fra bruger til omskifter og fra omskifter til pc: Op til 5 meter

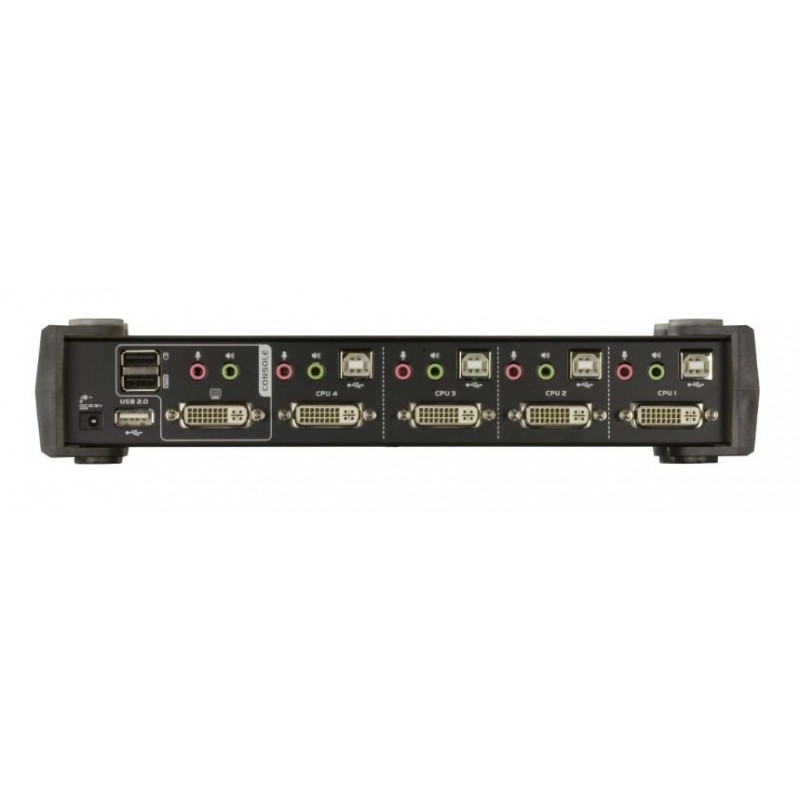

Indgang Mus og tastatur: 4 x USB B stik. Skærm: 4 x Single Link DVI-D. Lyd: 4 x mini Jack stik.
Indikatorer og kontakter Lysdiode indikerer om der er aktivitet på indgangen, anden lysdiode indikerer den aktive port
Kabel Kabler medfølger ikke, se tilbehør
Maks. opløsning 1920 x 1200 ved 60 Hz
Dimension 27x8.7x5.5 CM (LxWxH)

4 ports pc-omskifter til fælles tastatur, skærm, mus, mikrofon og højttalere (KVM-switch). Der skal benyttes USB-mus og -tastatur. Der er 2 USB-porte til deling af USB-enheder mellem pc’erne.

Der kan tilkobles USB-hub, hvis der skal tilkobles flere end 2 enheder.

USB 2.0 kabler med guldkontakter, AWG 28. A han – B han, 1,8 meterf...
USB 2.0 kabler med guldkontakter, AWG 28. A han – B han, 1,8 meter

USB kabel med USB-A han og USB-B han stik
AWG28
USB2.0
Guldbelagte stik
Grå

50.00 kr
Item Number: K-USB4AM-BM
Physically in stock
ADD TO CART
Quick view

Other products in same category:

Adder View GEM AVG4 KVM switch 4 port VGA PS/2
4 port Professional KVM switch, VGA, PS/2 Adder View AVG4, 1900 x 1440, Hot-Key

4 port KVM switch - high end product
VGA resolution up to 1900 x 1440 pixels
With PS/2 or USB via adapter
Hot-key switching or push-button or auto-scanning
Can be set to Password user access
Powered from PS/2 or optional DC5V/4A-Q

3,350.00 kr
Item Number: KVM4-VGA-PS2
Physically in stock
ADD TO CART
Quick view
4-Port HDMI KVM Switch with USB 3.0, 4K@60Hz Support
4 port KVM switch with HDMI and 4 x USB 3.0, 4K@60Hz, 1920x1080@60Hz, 5VDC

HDMI 2.0, HDCP 2.2
Resolution: 3840 x 2160 60Hz, 1920 x 1080 60Hz
Video Connector: HDMI-A interface
HDMI Cable Range: 15m max.
USB input: USB-A 3.0 female
Computer Input: USB-A 3.0 female
Power Supply Mode: USB
4 x USB3.0 cables included
Power consumption: Max 4W
video transmission speed: up to 6Gbps per channel (18Gbps in total)
Operating temperature: - 5℃ - + 70℃
Humidity: 5% - 90%
Dimensions: 178 x 77.5 x 20mm
5VDC power supply included

1,994.00 kr
Item Number: KVM4-HDMI4K+USB
Physically in stock
ADD TO CART
Quick view
DisplayPort KVM Switch, 4 x DP - USB - Audio with USB HUB
4-port KVM switch with DisplayPort, USB 2.0 and Audio. 2560 x 1600. Hotkey PC choice.

4-port KVM switch, DisplayPort, USB
2 x USB for mouse and keyboard
2 x USB to USB devices - transparent USB
Resolution up to 2560 x 1600 points
Transmits audio
Push-button Selection and HOTKEY choice of PC
Scan between PCs - choice of time
AC adapter included 12VDC / 1.5A
Can be used as DisplayPort switch - use PSU
Dimensions: 220 x 130 x 44 mm

1,950.00 kr
Item Number: KVM4-DP-U+LYD
Physically in stock
ADD TO CART
Quick view
4 port KVM switch DP, Display Port, 4K60Hz, 3 x USB2.0 Hot Keys
4K@60Hz 4 port KVM switch with DisplayPort, 3 x USB 2.0 and audio. Hotkey PC selection. 5VDC

Up to 3840x2160 @ 60Hz

Buttons / Hot-Key Switching

Built-in USB2.0 HUB

USB keyboard, mouse, USB flash drive, or a USB printer

Audio jack for microphone and speaker

Supply voltage: 5VDC

Power supply not included

Dimensions: 132 x 92 x 66 mm

1,843.00 kr
Item Number: KVM4-DP-4K
Physically in stock
ADD TO CART
Quick view
4-port manual serial switch RS232/485 to DB9 male connector. For simple test use
4-port switch manual serial RS232 / 485 to DB9 male connector. For simple test use

DB9 4 Port Switch Box
Manuel
RS232 / RS485 to 4 x DB9 male connectors
1 x DB9 female connector
two-way communication
Connector: straight through all managers

220.00 kr
Item Number: SW-DB9-4+
Physically in stock
ADD TO CART
Quick view
Rack-kit til 4 ports unit KVM i sortfor4 porte
Rack-kit til 4 ports unit KVM i

Sort tilbehør/ beslag til 4 ports KVM

263.00 kr
Item Number: SW-RACK4
Physically in stock
ADD TO CART
Quick view

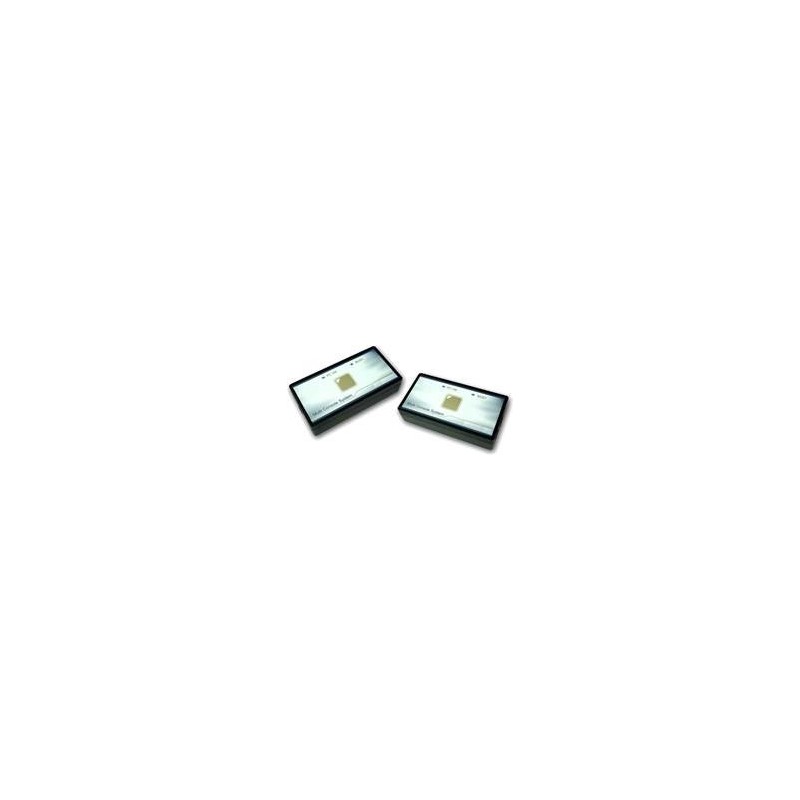

Restsalg: Del én PC mellem 9 brugereforSurplus / DEMO PRODUCTS
