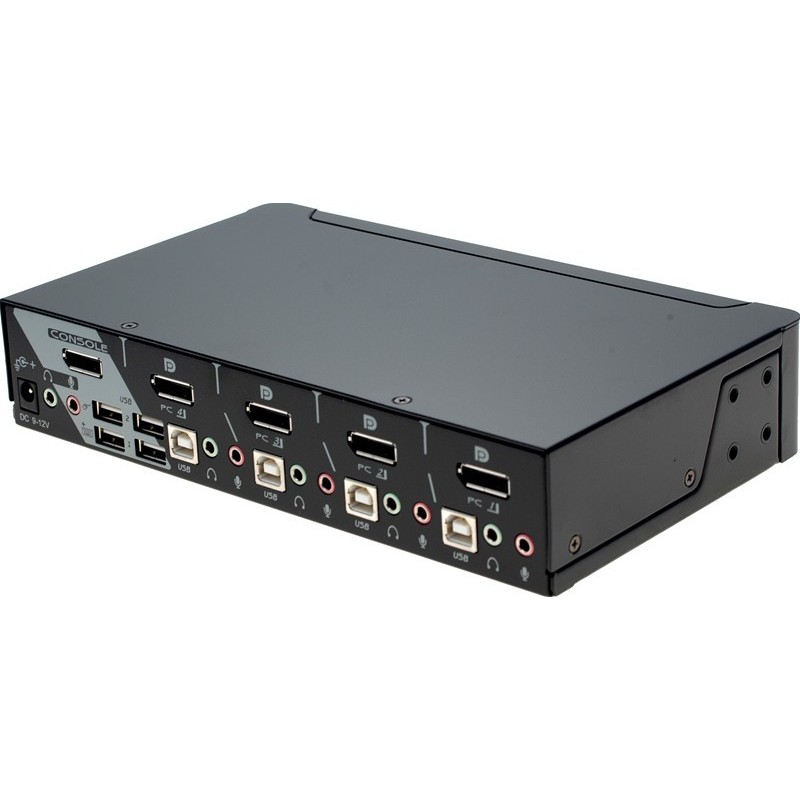

4-port KVM switch with DisplayPort, USB 2.0 and Audio. 2560 x 1600. Hotkey PC choice.
4-port KVM switch, DisplayPort, USB
2 x USB for mouse and keyboard
2 x USB to USB devices - transparent USB
Resolution up to 2560 x 1600 points
Transmits audio
Push-button Selection and HOTKEY choice of PC
Scan between PCs - choice of time
AC adapter included 12VDC / 1.5A
Can be used as DisplayPort switch - use PSU
Dimensions: 220 x 130 x 44 mm
$300.85
Ekskl. moms
Quantity
Physically in stock
Product number KVM4-DP-U+LYD
Ask a question
close
Specifications
Afstand | Fra bruger til omskifter og fra omskifter til pc: Op til 5 meter |
---|---|
Dimensioner | 44 x 220 x 130 mm (H x B x D) |
Forsyning | 230 VAC til 12 VDC 1,5 A. Medfølger. |
Indgang | Mus og tastatur: 2 x USB A porte |
Indikatorer og kontakter | Lysdiode indikerer om der er aktivitet på indgangen, anden lysdiode indikerer den aktive port |
Kabel | Kabler medfølger ikke, se tilbehør |
Kompatibilitet | Mus og tastatur: 4 x USB B stik. Skærm: 4 x DisplayPort. Lyd: 4 x 2 mini Jack stik. |
Maks. opløsning | 2560 x 1600 ved 60 Hz |
4 Port PC switch to single DisplayPort monitor, USB keyboard and mouse, microphone and speakers ( KVM switch).
There are 2 USB ports to share USB devices between PCs . A USB hub can be connected if there is to be connected to more than 2 USB devices.
Andre produkter i samme kategori:
HDMI KVM extender, 150 meters over Cat 6a / 7 RJ45 cable, or over TCP/IP, USB HID
Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm
$426.13
Item Number: BOOST-HDMI150-U+IR

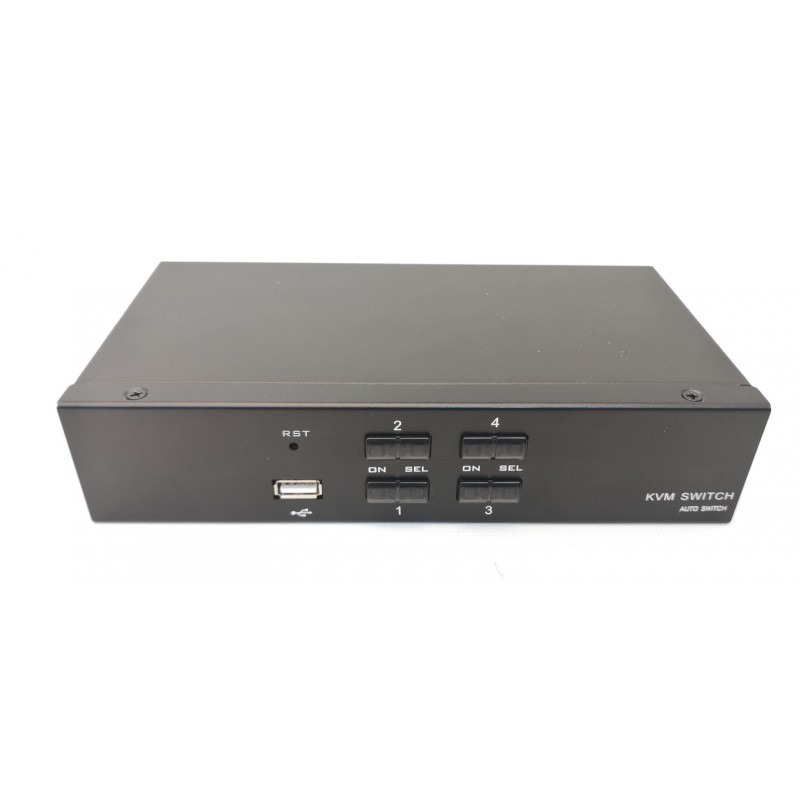

4K@60Hz 4 Ports KVM switch with DisplayPort, USB 2.0 and Audio. Hotkey PC selection. 12VDC
Up to 3840x2160 @ 60Hz
buttons / hot-key switching
built-in USB2.0 Hub
USB keyboard, mouse, USB flash drive or a USB printer
AUDIO connector for microphone and speaker
12VDC power input
Dim: 132 x 92 x 66 mm
$284.34
Item Number: KVM4-DP-4K
2 port KVM switch with DVI, USB and audio 4K @ 30Hz
2-port KVM switch
1 x DVI 1.0 inch (from each PC)
1 x USB BM 2.0 (from each PC)
3 x USB 2.0 for mouse and keyboard on the control side
Sound in and out
EDID support
Resolution up to 3840x2160 @ 30HZ (NOTE 30HZ!)
Change from button on the front
Cables must be purchased, available in several lengths
Can function as a DVI or USB switch, requires supplied power supply
$285.11
Item Number: KVM2-DVI-U-L

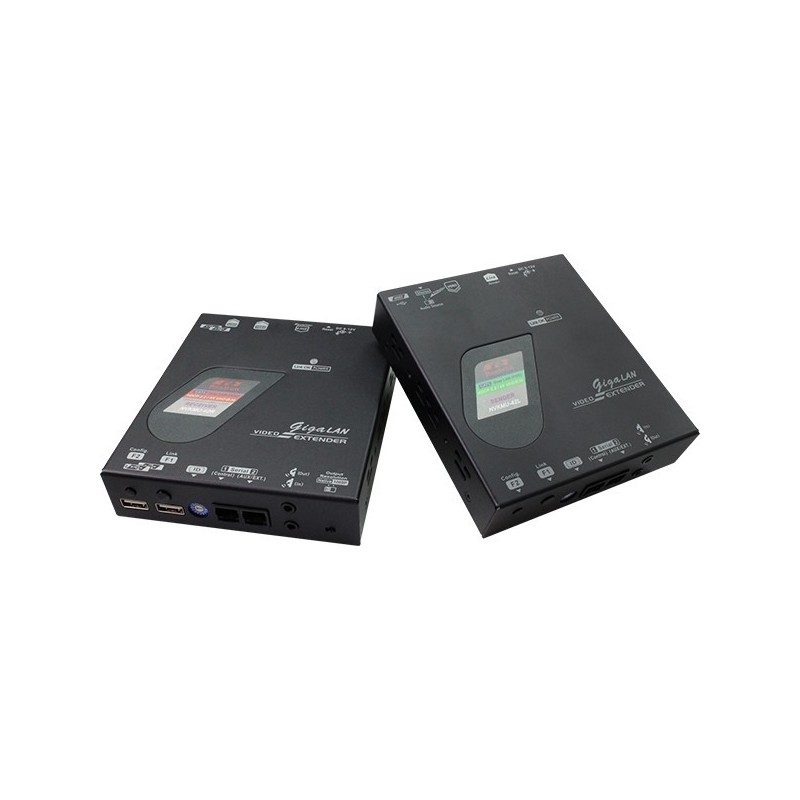

4K - KVM extender of Gigabit TCP/IP or point to point RJ45 100 meters, HDMI + USB for touch screen. Can be powered by PoE
HDMI Booster, set with 1 x transmitter, 1 x receiver
4K HDMI + USB + Serial extender of Giga LAN (POE)
Point-to-point RJ45: Up to 100 meters
Over TCP / IP LAN Extender
Video signal 4x USB 2.0 signal over LAN
Up to 16 receivers to one transmitter selection via DIP switch
Up to four pairings while the Gigabit LAN
Switch must support IGMP snooping, multi casting
Auto EDID emulation
HDMI with stereo sound
Bi-directionel IR
HDCP approved and Blu-ray ready
4K @ 30Hz, 2160p, 1080p, 1080i, 720p, 720i
Full HD, 4K UHD system
Video wall: 2 x 2, 3 x 3, 4 x 4 ... 9 x 9 display format
Dimensions: 130 x 117 x 28 mm
$1,093.87
Item Number: BOOST-HDMI100-4K

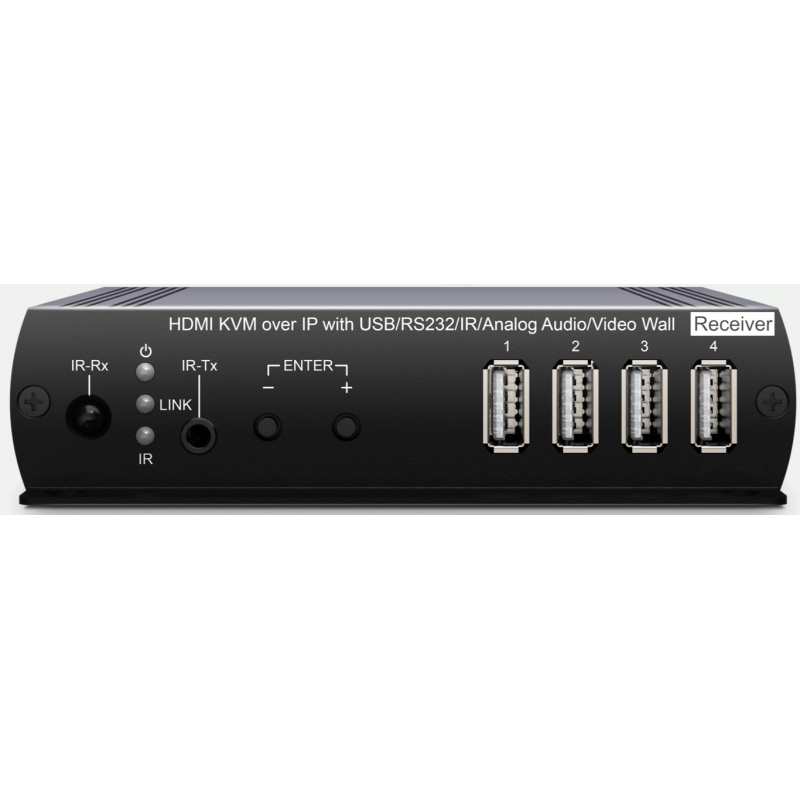

4K@30Hz 4:4:4 HDMI KVM Extender RX over IP / point to point with RJ45 (150m) or fiber (60km). 4 x USB
4K30 HDMI receiver over IP with HDMI out
4K30 HDMI receiver Point to Point with RJ45 up to 150 meters
4K30 HDMI receiver Point to Point with Fiber
For fiber connection - purchase additional SFP module
Suitable as HDMI extender (receiver) for video wall
Receives video from the selected transmitter
Receives 1 to 1 or 1 to 8x16 video wall
4 x USB 2.0 (HUB 2 x USB1.1, 2 x USB 2.0)
RS232 port (duplex)
Dimensions: 210 x 123 x 40 mm
Supply: 5VDC 600mA (PSU 5VDC/1.5A)
0 - +55°C
Free APP
$523.95
Item Number: HDMI-MULTI4K-U-RS

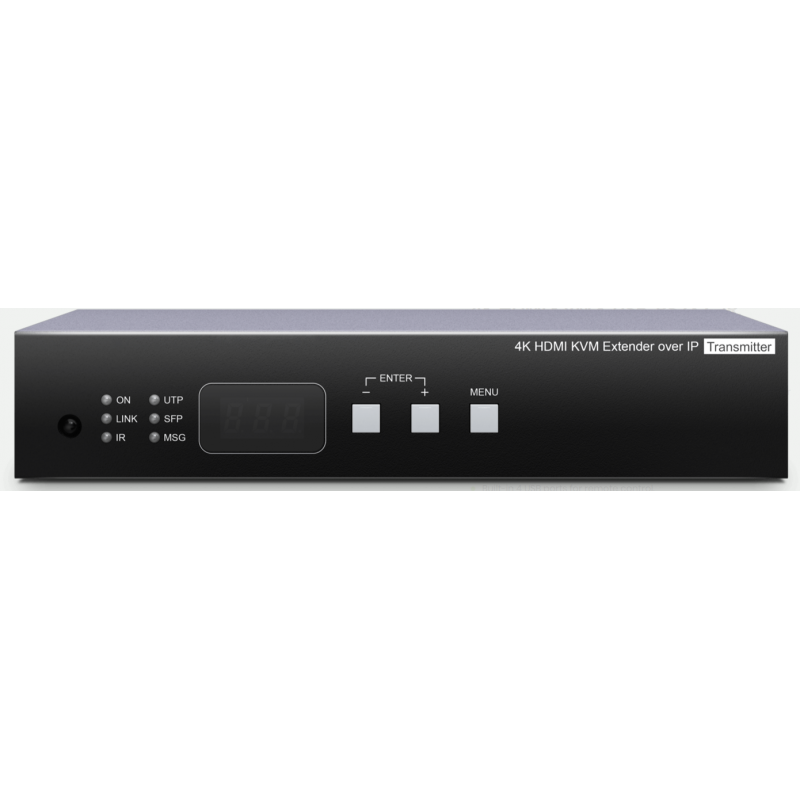

4K@30Hz 4:4:4 HDMI KVM Extender TX over IP / point to point with RJ45 (150m) or fiber (60km). 1 x usb.
