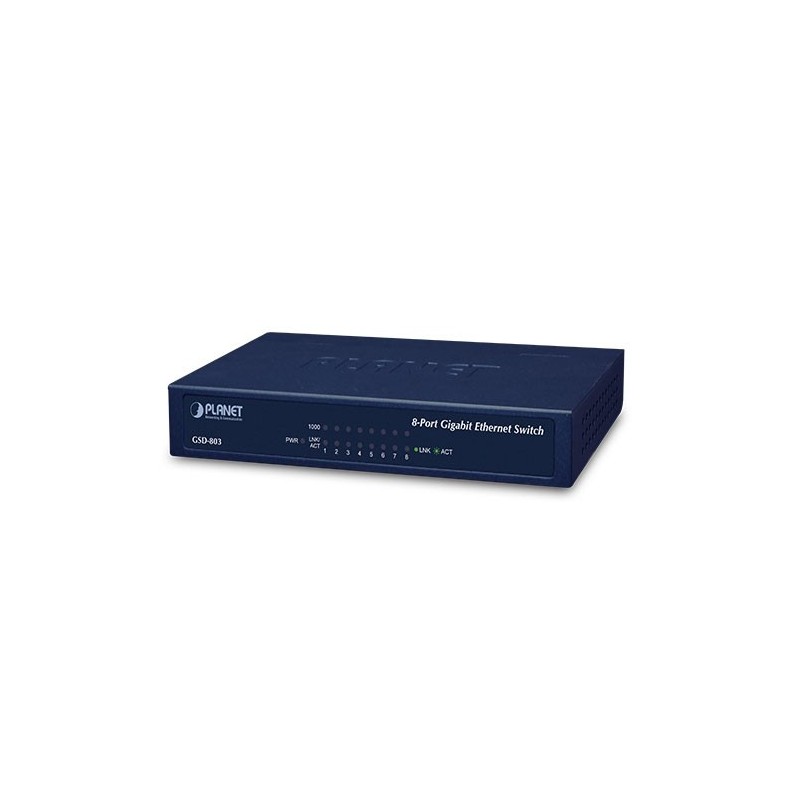

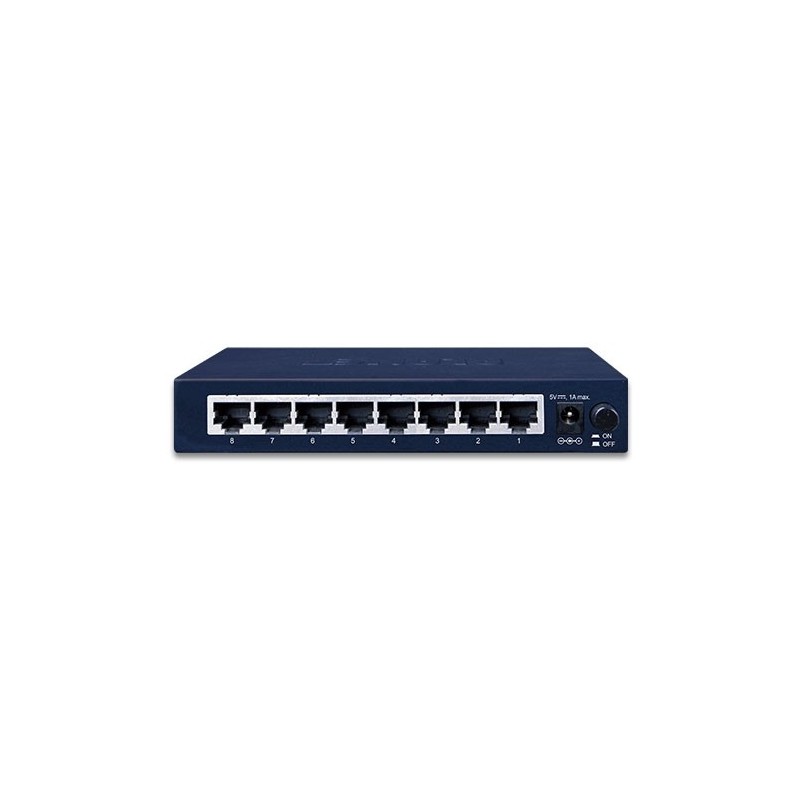

8 port 10/100/1000Mbit unmanaged switch in mini format.
Powered from PoE or 5VDC (PSU not included).
Additional purchases, if any DC5V/2A-RQ power supply.
Does NOT have PoE out.
Dimensions: 155 x 86 x 26 mm
Weight: 378g
8 port Gigabit Ethernet switch.
ESW8G-PD is a mini-format Gigabit Ethernet switch powered via PoE (does not power connected devices).
Switch mode type
100 - 240VAC to & nbsp; 5 VDC, 2 A
DC plug: 5.5 / 2.1mm
Det Norske Veritas Certified marine network switch DNV GL
Managed 8 port network switch approved for ships
8 x 10 / 100Mbit Auto-MDI / MDIX
2 x 100 / 1000Mbit SFP Single Mode or Multi Mode
Supply voltage: 12 - 60VDC, 12Watt
Polarity protection, over voltage protection at DC input
Dimensions: 162 x 123 x 50 mm
Weight: 780G
Operating temperature: -40 - +75°C
Humidity: 10 - 90% RH (non-condensing)
DIN fittings, metal enclosure
Unmanaged 8 ports 10/100/1000Mbit switch
1.5Mbits SRAM packet buffer
IP30 metal case
DIN rail and wall-mount
-40 to 75 degrees C operating temperature
12 to 48V DC input (power supply is not included)
Unmanaged 10/100Mbps switch
Det Norske Veritas Certified marine network switch DNV GL
Managed 8 port network switch approved for ships
8 x 10/100 / 1000Mbit Auto-MDI / MDIX to 4 x 1000Mbit SFP single mode or multimode
Supply voltage: 12 - 60VDC, 18Watt
Surge rotection, over voltage protection DC input
Dimensions: 162 x 122 x 50 mm
Weight: 860g
Operating temperature: -40 - +75°C
Humidity: 10 - 90% RH (non-condensing)
DIN fittings, metal enclosure
