• PCI Express x 1, 2x RS232, RS422/485
• RS485 ART (Automatic Receive Transmit control), RS485 in 3 operation modes
• optical isolation, surge protection (also in RS232), Compact board size (half-size)
• Built-in termination resistors

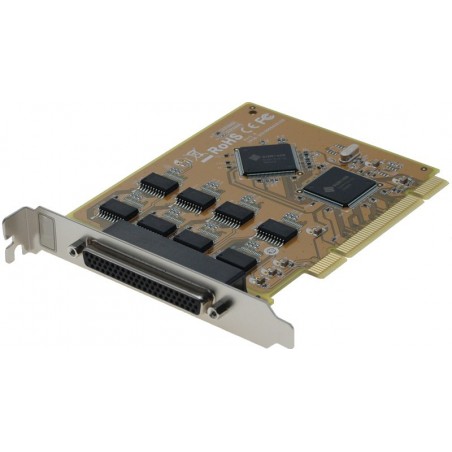

Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps.

High reliability SUN1999 16C950 compatible UART controller on-board.

Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.

Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.

On-chip hardware auto flow control to guarantee no data loss.

Built-in ± 2KV ESD protection for all serial signals.

Plug-n-Play, I/O address and IRQ assigned by BIOS.

Certified by CE, FCC, RoHS, and Microsoft WHQL approval.

Support Microsoft Windows, Linux, and DOS.

Windows ClientXP / Vista / 7 / 8.x / 10 (X86/X64) / 11Windows Server2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009LinuxLinux 2.x / 3.x / 4.x / 5.x / 6.xDOSDOS*UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris*IBM OS/2WARP 3/WARP 4

4 x RS232 porte på fuldlængde Mini PCI Express x1

Two 16550 High performance UART (RS232) serial channels
Occupies one PCI or PCIe bus slot
Low Profile PCI Form Factor
Includes Low Profile PCI & Regular size PCI two brackets
Both USB A type and USB pin header connector on board to host connection
One RS232 DB9M and one RS232 10pin RJ45 serial ports on board
Includes one 10pin RJ45 – DB9M Bridge cable for 2nd DB9M port
5VDC Power output from each DB9M Port for POS device use application
2 Jumpers Individually enable / disable 5VDC output for each DM9M Port
On Board Molex mini 4Pin Power connector for sufficient DB9M 5V bus power from PC power supply
Supports 32bit/64bit Windows 7, Vista, XP, 2000, ME, 98SE
