GSM alarm controller - Alarm to mobile phone via SMS. 4G LTE

GSM alarm controller - sends alarm SMS and calls
8 x digital inputs
Must be programmed with USB cable to PC
Microphone in, line out (listening in and conversation)
Battery back-up
Antenna with SMA male included
4G mobile network

GSM-ALARM150
2,279.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

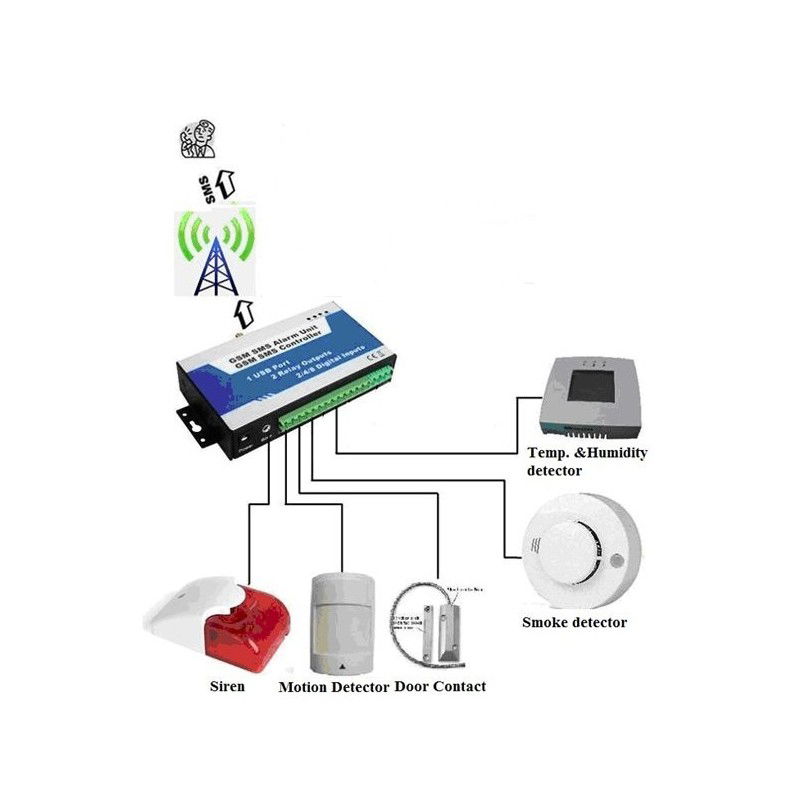

GSM controller with 8 digital inputs for "breaking contacts", which can be connected to different sensors eg. room sensor door / window switches.

With built-in microphone input and line out, a call can be made through the device.

In case of alarm, GSM-ALARM150 can send SMS or call up to 8 different telephones from a list.

The GSM-ALARM150 has a built-in battery backup so it can send information during a power outage.

Digital inputs: 8

Relay outputs: 1 alarm relay (230VAC 3A) and 1 pcs. relay which can be controlled via SMS messages (230VAC 3A)

USB port: 1 mini USB port (For setting up the device via PC software included)

Audio in: Microphone in (Monitoring the sound in a room)

Audio Out: Line Out (so that the room can be spoken from the unit)

GSM frequency: 850/900/1800/1900 MHz

Batteri
LI-batteri medfølger 3.7 VDC 900mAh (standby op til 8 timer)
Driftstemperatur
-10 – 60 0C
Forsyning
12VDC 1.5A (strømforsyning medfølger ikke)
