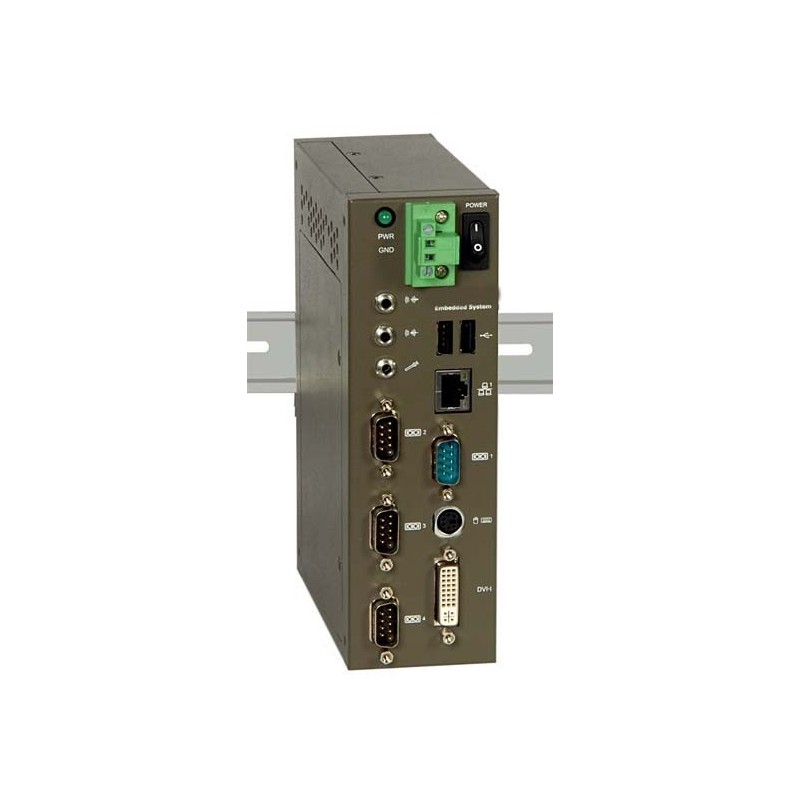

Fanless Mini PC w / 1.6GHz ATOM CPU supports win XP

Compact PCDual Core Atom 1.6 GHz CPU.
Dual Display VGA, DVI.
2GB RAM - not included.
4 x COM.
1 x RJ45 Ethernet
2 x USB

DIN mount
DOS / WIN XP / WIN 7 support - purchased

IPC-MINI-DIN
4,043.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
Intel Atom N270 1.6GHz low power
Chipset
Intel® 945GSE North & ICH 7-M South Bridge Chipset
BIOS
AMI BIOS
Audio
1 Line-in, 1 Line-out, 1 Speaker out
Arbejdstemperatur
-20° C to 45°
Digital I/O
Up to 4 D-In, 4 D-Out internal connector
Dimensioner
56.5mm (W) X 180 mm (H) X 130mm (D)
Ethernet
1 x Realtek 8111 100/1000 Mbps LAN interface with Wake-On-LAN & DMI
Grafik
Display Function 24 bit DVI-I dual display interface Supports DVI + VGA with DVI-I to DVI and VGA Y cables
Montage
DIN RAIL mount
Seriel port
RS-232/485 1 DB-9 RS-232/485 and 3 DB-9 RS-232
Storage
Disk Drive Storage 1 channel SATA interface, 1 internal CF module slot
System Memory
2GB 533MHz
Tastatur/mus
Keyboard & Mouse Supports PS/2 type keyboard and mouse interface Supports keyboard and mouse Y type cable
Watchdog
Programmable WDT from 1 to 255 seconds
