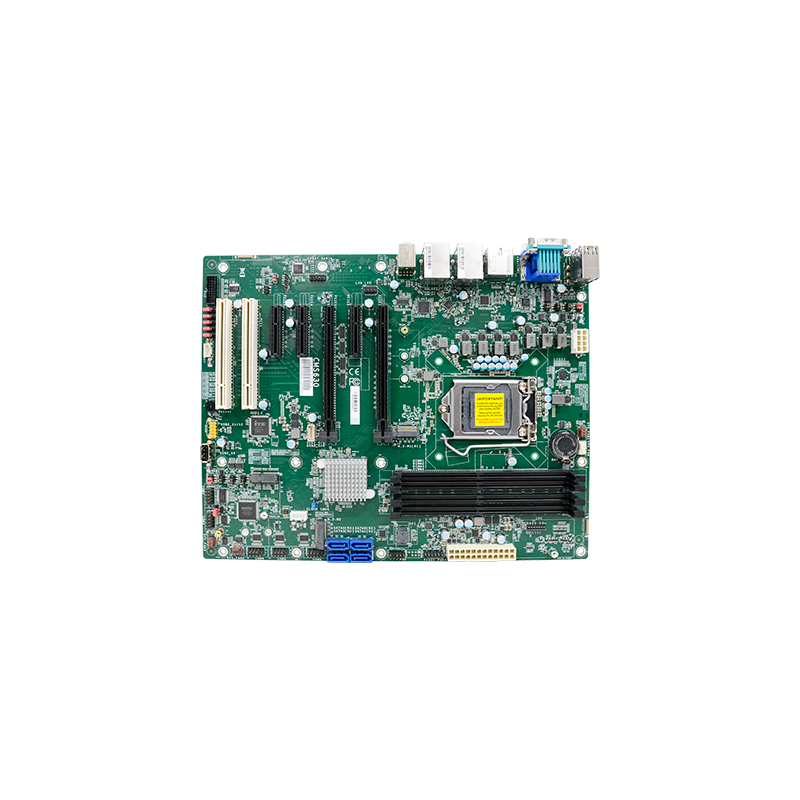

ATX motherboard, Intel 10th generation Xeon / Core I9 / I7 / I5 / I3 / Pentium / Celeron, LGA1200

10th Gen Intel® Core processors
4 DDR4 UDIMMs Up to 128 GB
1 x VGA, 1 x DP, 1 x HDMI
2 x Intel Gigabit Ethernet RJ45
4 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1 (3.0)
6 x USB 2.0
4 x Internal RS232
1 x External RS232 / 422 / 485
4 x SATA III 6 Gb/s, RAID 0/1/5/10
Supports 4K / 2K Resolution
Expansion: 1 PCIe X16, 2 PCIE X4, 1 PCIE X1, 2 PCI, 2 M.2 m Key
Size: ATX
Option: TPM 2.0
Operating temperature: -5 ~ +65°C

BK1200-ATX-GEN10
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

10th generation Intel® LGA 1200 socket processors, TDP Support up to 125W
Intel® Xeon® W-1290E (10 cores, 20m cache, up to 4.8 GHz); 95W (ECC Support on W480E SKU only)
Intel® Xeon® W-1290te (10 cores, 20m cache, up to 4.5 GHz); 35W (ECC Support On W480E SKU only)
Intel® Xeon® W-1270E (8 cores, 16m cache, up to 4.8 GHz); 80W (ECC Support on W480E SKU only)
Intel® Xeon® W-1270te (8 cores, 16m cache, up to 4.4 GHz); 35W (ECC Support on W480E SKU only)
Intel® Xeon® W-1250E (6 cores, 12m cache, up to 4.7 GHz); 80W (ECC Support on W480E SKU only)
Intel® Xeon® W-1250te (6 cores, 12m cache, up to 3.8 GHz); 35W (ECC Support On W480E SKU only)
Intel® Core ™ I9-10900E (10 cores, 20m cache, up to 4.7 GHz); 65W
Intel® Core ™ I9-10900te (10 cores, 20m cache, up to 4.5 GHz); 35W
Intel® Core ™ I7-10700E (8 cores, 16m cache, up to 4.5 GHz); 65W
Intel® Core ™ I7-10700te (8 cores, 16m cache, up to 4.4 GHz); 35W
Intel® Core ™ I5-10500E (6 cores, 12m cache, up to 4.2 GHz); 65W
Intel® Core ™ I5-10500te (6 cores, 12m cache, up to 3.7 GHz); 35W
Intel® Core ™ I3-10100E (4 cores, 6m cache, 3.8 GHz,); 65W (ECC Support on SKU W480E only)
Intel® Core ™ I3-10100te (4 cores, 6m cache, up to 3.6 GHz); 35W (ECC support only for SKU W480E)
Intel® Pentium® G6400E (2 cores, 4m cache, 3.8 GHz); 58W (not supported on W480E SKU)
Intel® Celeron® G5900E (2 cores, 2m cache, 3.2 GHz); 58W (not supported on W480E SKU)
Intel® Celeron® G5900te (2 cores, 2m cache, 3.0 GHz); 35W (not supported on W480E SKU)

CPU
Intel 10. generation Xeon / Core I9 / I7 / I5 / I3 / Pentium / Celeron, LGA1200
Dimensioner
305mm x 244mm
Driftstemperatur
-5 ~ +65°C
Ethernet
2 x Intel Gigabit Ethernet RJ45
Formfaktor
ATX
Hukommelse
4 DDR4 UDIMM Op til 128 GB
M.2
2 x M.2 2242/2260/2280 M-key (PCIe Gen3 x4 NVMe/Intel® Optane Memory and intel RST support. 1 x NVME, 1 x NVME/SATA)
OS SUPPORT
Windows 10 IoT Enterprise 64-bi,t Windows Server 2019, Linux
PCI
1 PCIe X16, 2 PCIe X4, 1 PCIe X1
PCI
2 PCI
Porte
4 x Internal RS232, 1 x External RS232 / 422 / 485
Strømtilslutning
8-pin ATX 12V power, 24-pin ATX power
USB
4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1 (3.0), 6 x USB 2.0
Video
1 x VGA, 1 x DP, 1 x HDMI
