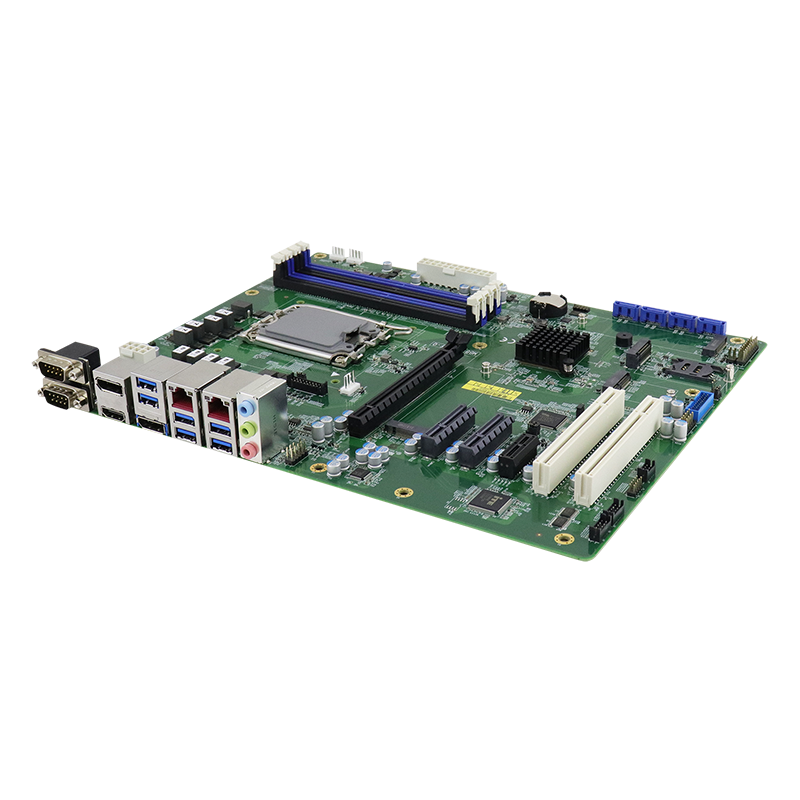

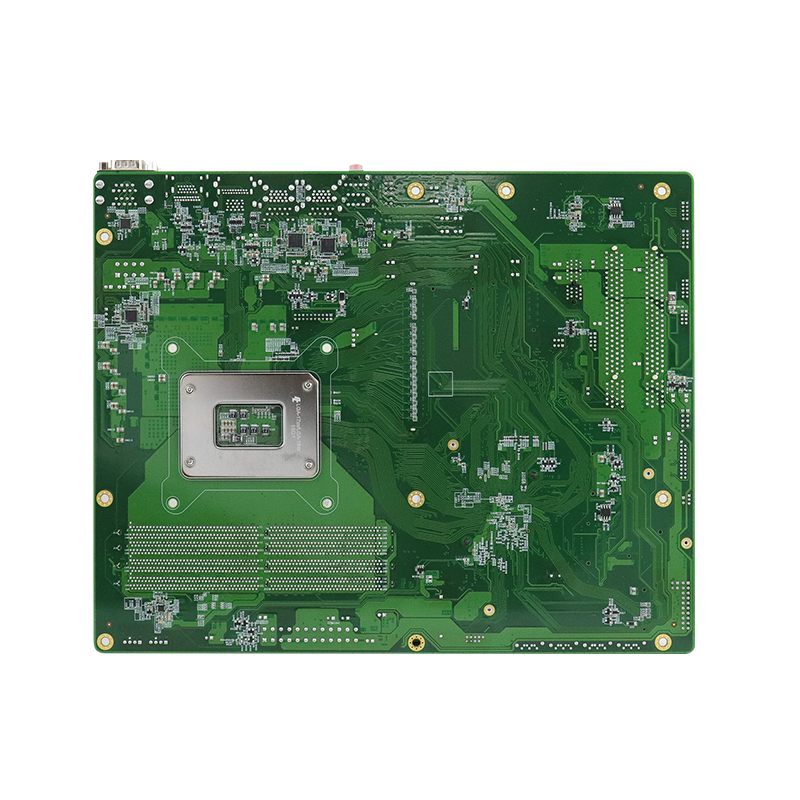

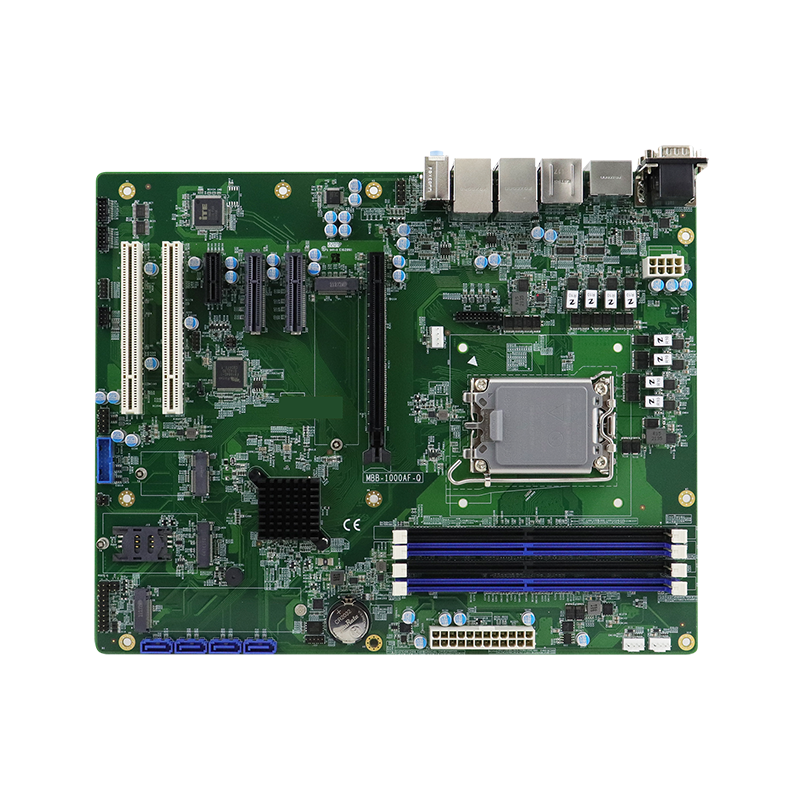

13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® with Intel® Q670E PCH ATX Motherboard

  • 13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processors
    4x DDR4 DIMM, Max.128GB
    Intel® processor integrated gaphics supports HDMI (2.0b)
    DVI-D, and DisplayPort (1.4) (DP++)
    2x Intel® 2.5G LAN
    8x USB 3.1, 2x USB 2.0
    4x SATA 3.0
    4x COM
    1x PCI-E(x16) (Gen5.0), 2x PCI-E(x4) (Gen4.0), 1x PCI-E(x1) (Gen3.0), 2x PCI
    4x M.2 (B-Key, E-Key, 2x M-Key)
    Watchdog timer
    Digital I/O, iAMT (16.1), TPM (2.0)
BK1700-Q670
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The motherboard is a 13th/12th Gen Intel® Core™ processors powered ATX motherboard. It is built with long-term reliability for graphics-intensive applications such as AIoT, digital signage, medical imaging, video surveillance and interactive kiosks.



The latest Intel processors integrate up to 8 P-cores and E-cores, drives up to 1.35x times faster in performance with enhanced Intel® Iris® Xe graphics engine. The motherboard  supports four 4K independent displays with 1x HDMI (2.0b), 1x DVI-D, and 2x DisplayPort 1.4a (DP++). It features 5G/4G/LTE connectivity with a 5G-compatible M.2 B3052 socket and discrete WiFi 6E with the new frequency band ranging from 5.925 to 7.125 GHz. The board comes with four high-speed DDR4-3200 RAM sockets with a total capacity of 128GB and extensive I/O interfaces with 2x Intel® 2.5G LAN, 10x USB ports, 4x SATA III, 4x serial ports, and multiple expansion slots including 1x PCI-E(x16), 2x PCI-E(x4), 1x PCI-E(x1), 2x PCI, and 4x M.2 slots.

CPU
Celeron;i3;i5;i7;i9
13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium®/ Celeron® processors
BIOS
AMI
Digital I/O
Fintek F81964D-I
Driftstemperatur
0°C~60°C ( 32°F~140°F)
Ethernet
2
Intel® I225LM 2.5GbE Intel® I225V 2.5GbE
SATA
4
4x SATA 3.0
Udgange
HDMI; DVI-D; DisplayPort
1x HDMI (2.0b), 1x DVI-D, 2x DisplayPort (1.4a) (DP++)
USB
6
2x USB 2.0 via pin header , 4x USB 3.1 Gen2 (10Gbps), 2x USB 3.1 Gen1 (5Gbps), 2x USB 3.1 Gen1(via box-header)
Watchdog
256 levels
Dimension
305mm x 244mm (12” x 9.6”)
Serial Porte
4
2x RS232, 2x RS232/422/485
RAM
DDR4-3200
4x DDR4-3200 MHz, Max. 128GB
