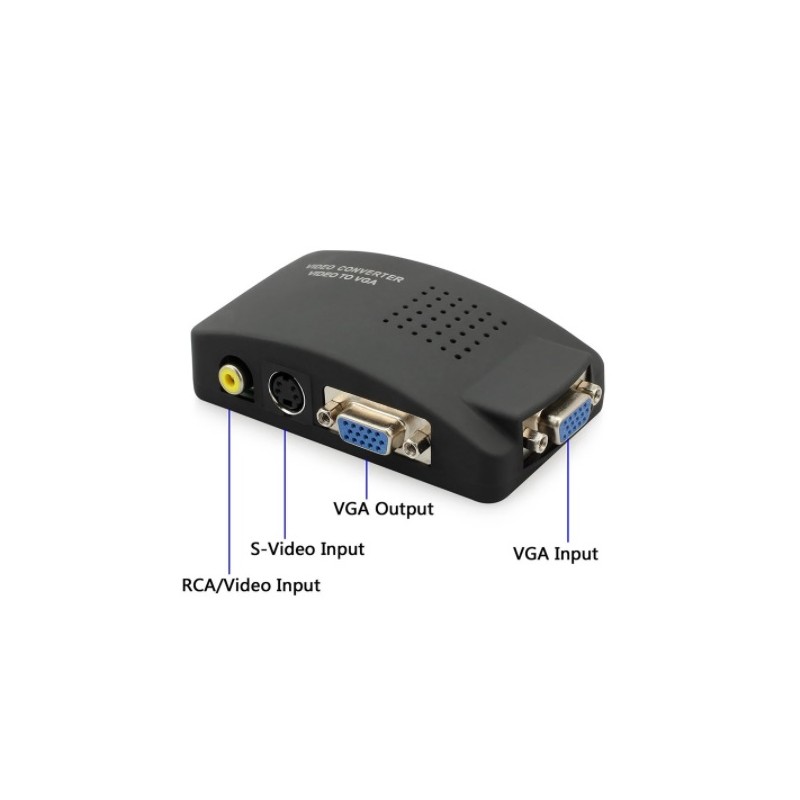

Composite and S-Video to VGA adapter. Connect the analog camera, television and video device to the VGA monitor

Composite to VGA - RCA / phono
acquisitions. BNCF phony (BNC for RCA adapter)
S-Video to VGA
Converts 50Hz to 60Hz (CRT to TFT Timing)
Resolution Up to 1600 x 1200 Points
Power Supply included 5VDC / 1A

CNV-S-VGA+
825.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Screen Type: TFT Flat Shields, CRT Picture Screens, Plasma Screens or Other Screen Types Compatible with the following screen resolutions and update frequency
input signal: PAL 3.58 or NTSC
Converting: 50/60 Hz Frame Rate conversion ensures a flawless picture
Screen resolution : 800 x 600 @ 60Hz, 800 x 600 @ 75Hz, 1024 x 768 @ 60Hz, 1280 x 1024
inputs: 1 x Composite (phonostik) 1 x S-Video
outputs: 1 x DB15HD female connector
Supply: 230 VAC AC adapter 5VDC, 1A included
Temperature: 0º ~ 40 ° C. Humidity 20 ~ 60% (non-condensing)

Dimensioner
162.6(W) x 64.5(D) x 33.5(H)
Driftstemperatur
0˚C~40˚C
Forsyningsspænding
230 VAC netadapter 5VDC, 1A medfølger
Indgange
1 x Composite (phonostik) 1 x S-Video
Luftfugtighed
20~90% RH (no condensation)
Opløsning
800 x 600@60HZ, 800 X 600@75HZ, 1024 x 768@60HZ, 1280 x 1024@HZ
Udgange
1 x DB15HD hunstik
