Industrial monitoring system | DIN

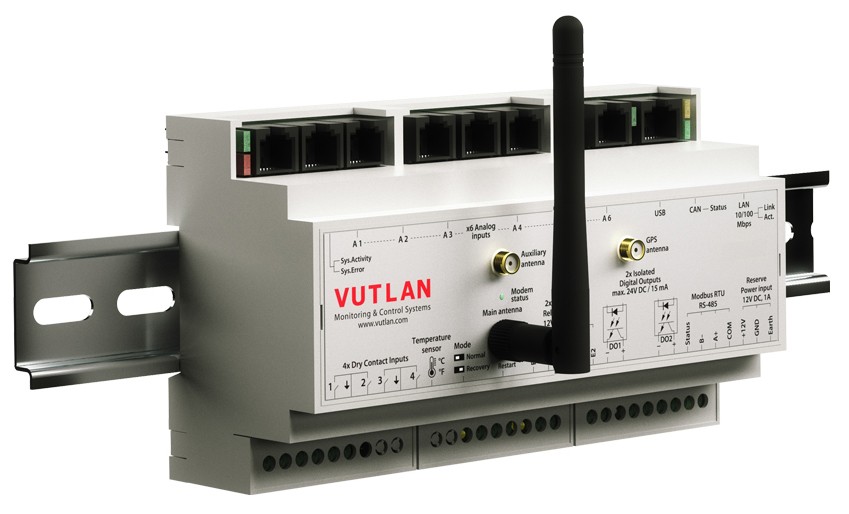

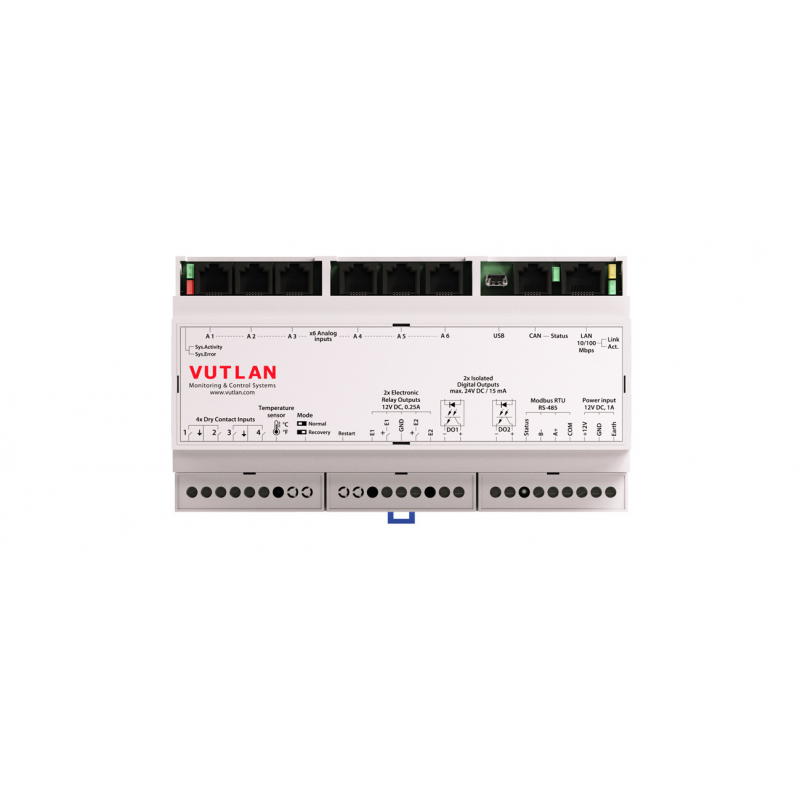

Designed for DIN rail installations, this monitoring controller offers comprehensive sensor integration
Built-in LTE modem is sold separately and can be purchased separately
Analog ports 6
Digital inputs: 4
Digital outputs: 2 isolated, max. 24VDC, 15mA
Relay outputs: 2 electromagnetic, 12VDC, 0.25A
Built-in sensors temperature (±1°C accuracy), voltage (1% accuracy)
Modbus RTU Supports up to 32 devices
Operating temperature: 0 to 70°C
Dimensions: 160 x 90 x 58 mm
Power supply: DC 12V

3,270.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number VTL100033
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

USB For USB camera, USB flash, USB hub
Operating Temp. 0 to 70 °C
Ethernet 10/100Mbps
Input x4 digital inputs
Kanaler x6 ports
Output x2 Isolated Digital outputs, max. 24VDC, 15mA
Relæ x2 Electromagnetic Relay Outputs, 12VDC, 0.25A
Sensor Temperature sensor: Accuracy +/- 1 °C, built-in & Voltage sensor: Accuracy 1%,
CAN Bus Interface Up to 8 CAN devices
Dimensioner 160 x 90 x 58 mm

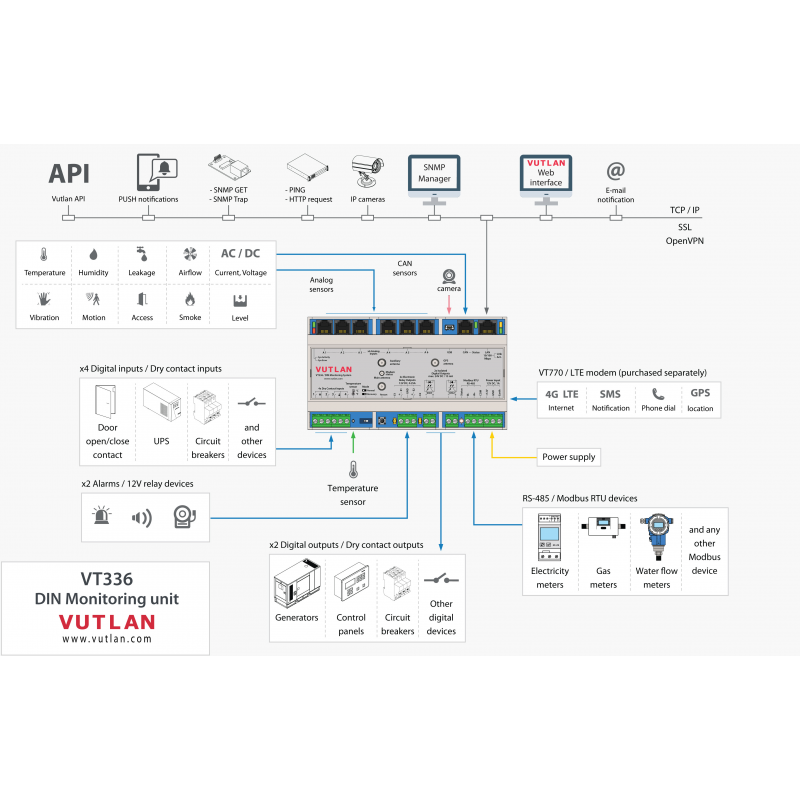

The industrial DIN monitoring and control system is specially designed for DIN-rail mounting racks. Includes x6 analog sensors, CAN sensor bus, Ethernet port, RS-485 / Modbus RTU, x4 digital inputs, x2 12V DC 0.25A relays, x2 digital outputs. Supports a full range of sensors and devices.
