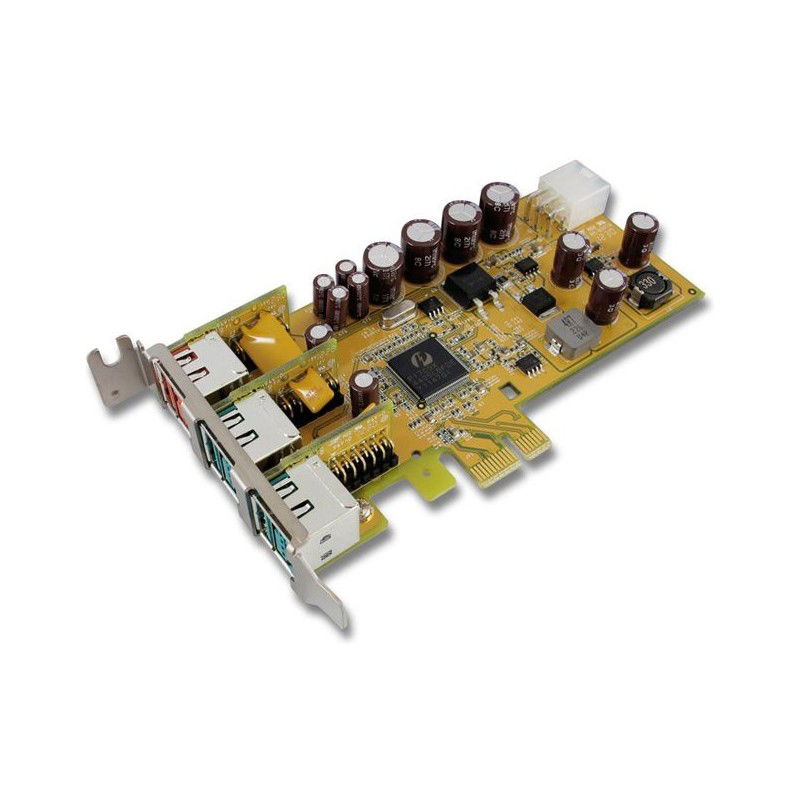

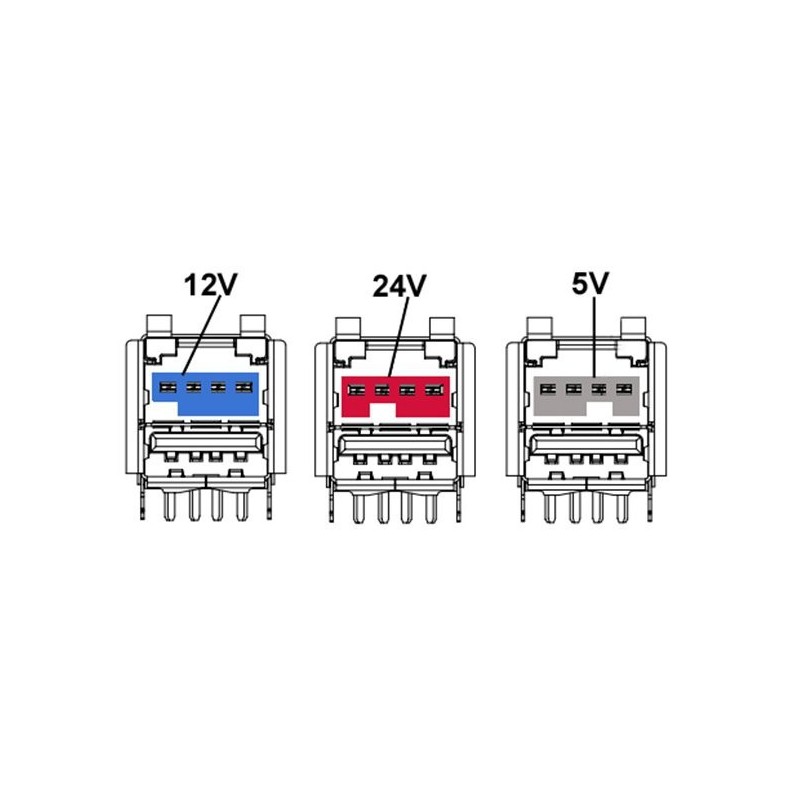

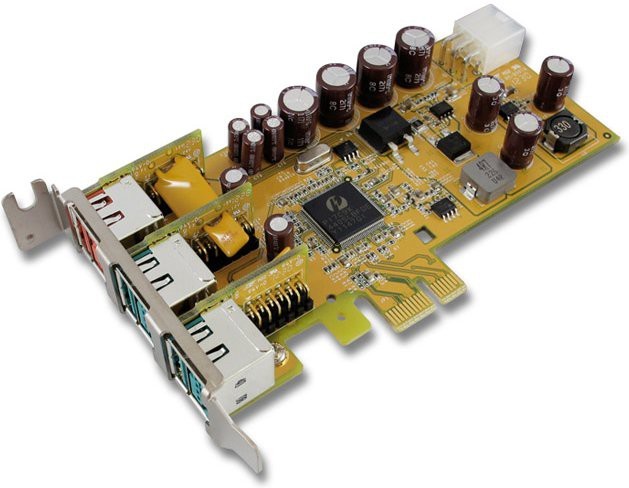

Powered USB low profile PCI Express kort, 2 x 12V,1 x 24 V
PUSB2UPCIE3L giver spænding til USB enheder der understøtter Powered USB/USB Plus Power. PoweredUSB er blandt andet populært ved kassen i forretninger, hvor det bruges til at strømforsyne stregkodelæsere og bonprintere.
PUSB2UPCIE3L forsynes via PCI-e GFx 2 x 3 polet strømstik.
Bemærk: at Powered USB ikke kan bruges med almindelige USB enheder, enhederne skal understøtte Powered USB/USB Plus Power.
PCIE to mini PCIE converter w/SIM card socket
Expands 2 RS-422/485 serial ports with communication speeds up to 921.6Kbps.
2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3.
1.5KV isolated protection for all signal and power.
With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
Designed to meet PCI Express Base Specification Revision 2.0.
RS-422 and RS-485 auto detect and switching technology – jumper and software free.
AHDC/CS™ technology for collision free communication.
On-chip hardware auto flow control to guarantee no data loss.
Ultra low power consumption design for Green Environment.
15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, VCCI, BSMI, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS OS.
XP / Vista / 7 / 8.x / 10 (X86/X64) / 11, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
windows Embedded XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
USB 3.2 Gen 2x2 USB Type-C 20 Gigabit/s.
PCI-e 3.0 X4 bus (Supports X4/8/16 slot).
Power supply: Internal 15-pin SATA.
OS Support: Windows 8/10, Linux
Include Low-Profile and Standard PCI backplane.
Intel X550 chipset
PCIe v3.0 (8.0GT/S)
Automatically negotiation between 1GbE, 2.5GbE, 5GbE and 10GbE
2 x RJ45 ports
Standard Cat 6 network cables
RJ-45 Category-6 up to 55mm, Category-6A up to 100m
Support Windows 64 bit (7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016
Linux(RHEL6.x/7.x, SUSE11.x/12.x, Ubuntu*14.x/16.X) FreeBSD
