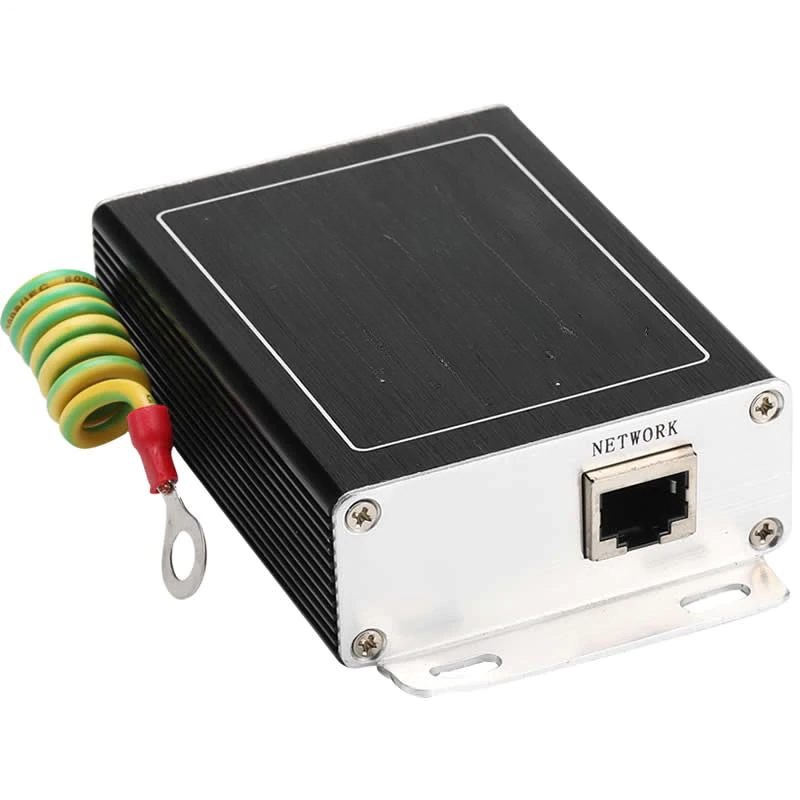

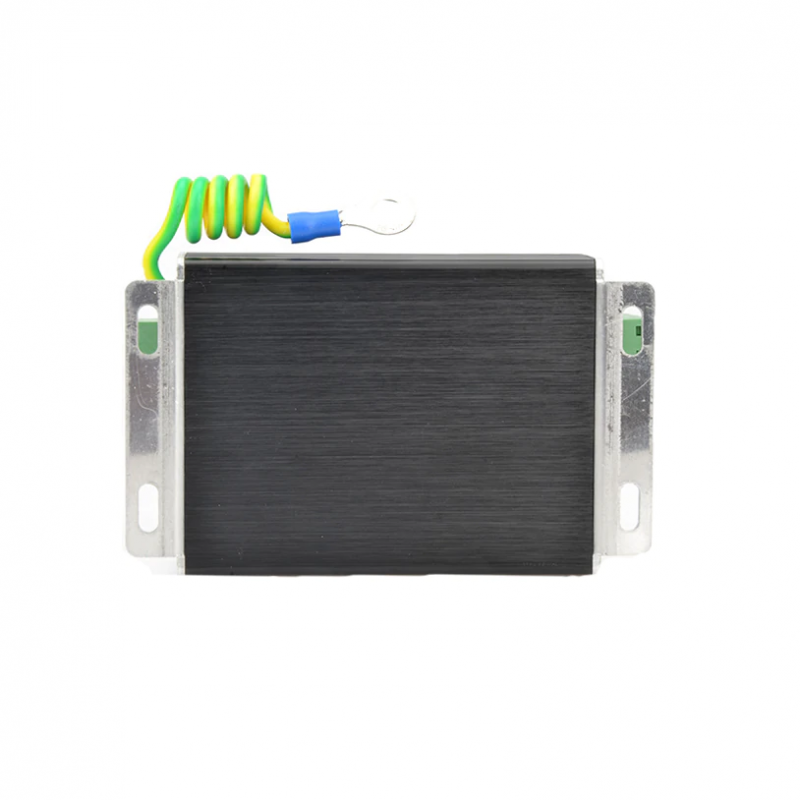

Protection for RJ45 10/100 / 1000Mbit network

Transient protection for 10/100/1000 Mbit networks

10kV to ground.

2 x RJ45 female.

Ground wire should be connected.

350.00 kr
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number PROT-RJ45SUR1000
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Hastighed 10/100/1000 Mbit
Stik 2 x RJ45 hun stik
Transientbeskyttelse 10 kA til jord

Ideal for protecting network equipment such as serial port servers. Easy installation - inserted between two network cables and connected to ground via the loose wire.
