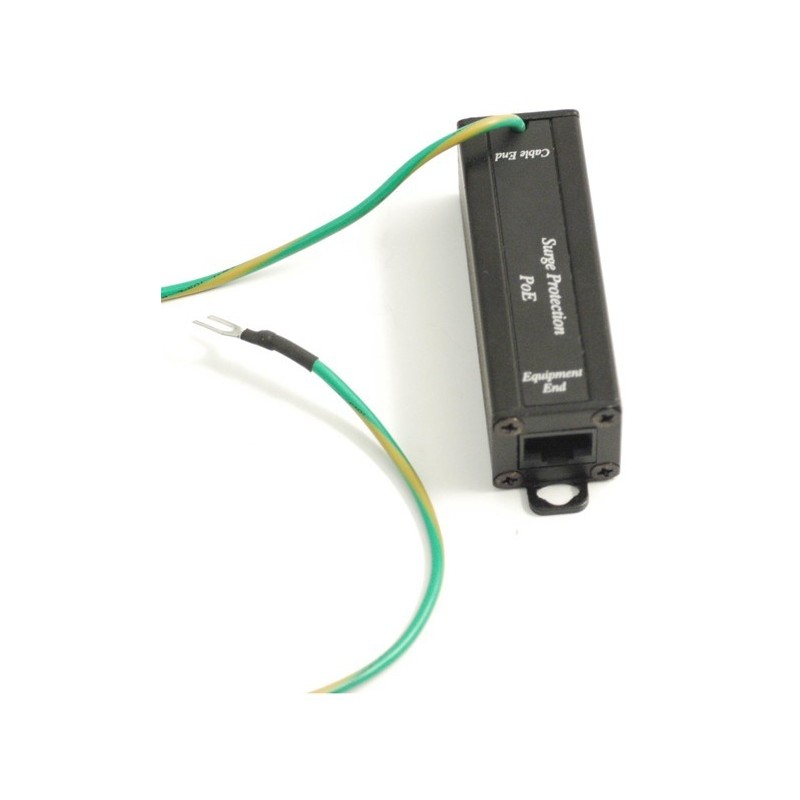

Protection for RJ45 network - transmits PoE

Transient protection for 10 / 100Mbit Network. 4kV to ground.

Transfer PoE voltage.

2 x RJ45 female.

Ground wire is to be connected.

PROT-RJ45SUR-POE
938.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Ideal for protection of network equipment, such as. serial port servers. Easy installation - is inserted between two network cables and connected to ground via the loose wire.

Hastighed
10/100 Mbit
PoE
IEEE 802.3af PoE kompatibe
Stik
2 x RJ45 hun stik
Transientbeskyttelse
4 kV til jord
