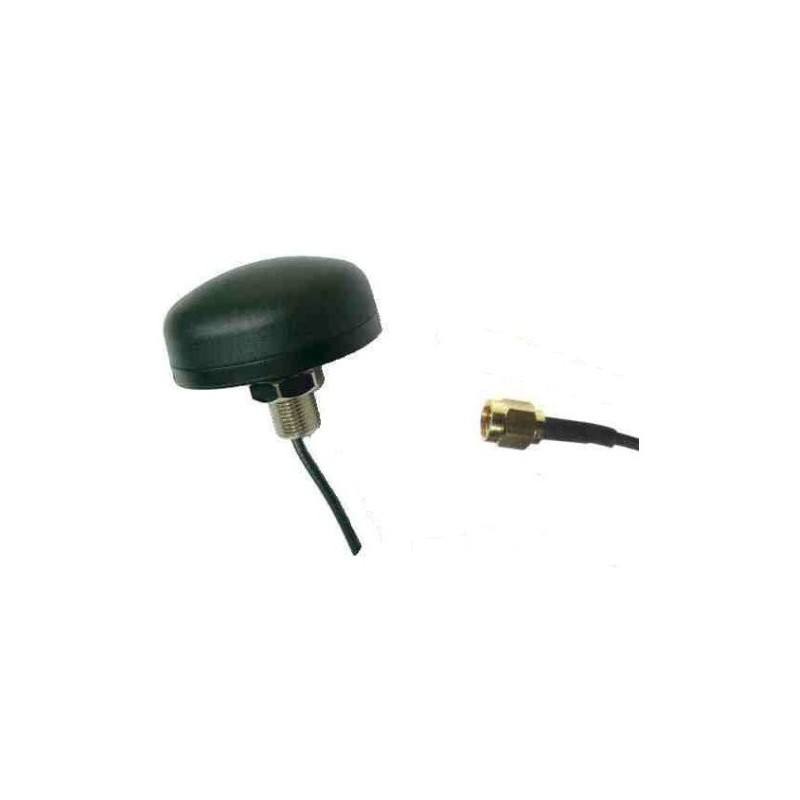

Outdoor Quad Band Antenna 850/900/1800/1900 / 2170MHz 2.5 dBi antenna dome, vandal proof round jet, 2.5m cable with SMA he

Vandal secure GSM dome dome antenna for hollow mounting
Quad band - 850/900/1800/1900 / 2170MHz
With 2.5 meters RG 174U cable - SMA he
ABS plastic - with rubber seal Ø47 x 15mm, M10 thread, 12mm
bandwidth ± 90/280 MHz
Gain 2,5dBi
vertical
Max wind speed 200km/h

GSM-ANT2V
167.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ANT2V GSM to GSM / CDMA / UMTS. Suitable for mounting on the car roof, so to enhance cell phone signal while driving. Made of ABS thermoplastic and comes with rubber gasket.

Mounting: M10 thread, 12mm long

Båndbredde
±90/280 MHz
Chok/Vibration
Sine sweep 1g(0-p), 10~50~10Hz each axis
Dimensioner
Size Φ47×14mm Weight ＜250g
Driftstemperatur
-40℃~+85℃
Frekvens
850/900/1800/1900/2170MHz
Gain
3.0dBi
Indgangsimpedans
50 OHM
Kabel
2.5m RG174, RG316, LMR100
Luftfugtighed
95%~100%RH
Maks. effekt
Max Input power(W) 50
Compositions
Black ABS
Montering
Screw
