LTE 4G 3G 2G GSM antenna with magnetic base and 3.4 m cable - IP65 sealed
Previous
Next
LTE 4G 3G 2G GSM antenna with magnetic base and 3.4 m cable - IP65 sealed

3.5 dBi GSM - LTE 3G antenna, IP65, magnetic base, 600-2700MHz, 3.5m cable, SMA male

LTE 3G 2G GSM antenna on magnetic base
3.5 dBi
Waterproof - IP65 tight
SMA male connector (sleeve + pin)
3.5m cable
600 - 900 / 1700 - 2600
Dimensions: height 110 mm, foot diameter 30 mm

245.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number GSM-ANT-MAG-LTE
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Antenne Gummi Pisk med magnetfod
Frekvens 600 - 2700MHz
Gain 3,5 dBi
Kabel 3,5m
Stik SMA (m)
Dimensioner 110 mm, fod 30 mm

LTE, GSM rubber antenna with magnetic base. SMA male connector, 3 meter cable

Other products in same category:

Outdoor vandal proof dome-antenna to GSM - with 1.5 meter cable and SMA male
GSM antenna vandal-proof, Omni, 0dBi, 1.5m cable with SMA male

Vandal-proof GSM dome antenna for metal roof mounting
850-960 / 1770 - 2100 MHz
with 1.5 meter RG 174 Cable
SMA male (rounder + tap)
ABS plastic - With rubber gaskets
Thread hole Ø12 mm

333.00 kr
Item Number: GSM-ANT-P
On the way in
ADD TO CART
Quick view
7dBi 4G LTE Omni beam Antenna for mast and wall mounting
7DBI GSM Omni antenna, N female, fiber tube - for pipe mounting

7 dBi outdoor omni antenna with N-type female plug
800-900/1800-2100MHz
Length is 76cm
N female connector
For mounting on pipe
For wall mounting
Mounting bracket included

900.00 kr
Item Number: GSM-ANT7OMNI-W
On the way in
ADD TO CART
Quick view
7dBi 4G / LTE Omni antenna for outdoor mounting. Fiberglass
7dBi LTEOmni antenna, N female, Wall mount and pipe, 76cm

7 DBI outdoor Omni antenna with N-type female socket
Horizontal: 360 degrees
Vertical: 9 degrees at ½ power
700-900 / 1800-2170 / 2300-2690MHz
Length is 76cm
n She connector
for mounting on pipes
for mounting on wall
Wind resistant Over 250km / h
Weight: 400g
Max. Effect: 50W
Impredance: 50 Ohm
mounting brackets included
glass fiber, copper inside, stainless steel Feature

1,280.00 kr
Item Number: GSM-ANT7OMNI-GF
On the way in
ADD TO CART
Quick view
12 dBi Omni LTE antenna with magnetic base and articulated joints, SMA male.
12 DBI LTE Omni whip antenna with magnetic feet, 700 - 2700MHz. 3 meter cable with SMA male 32cm

Gain: 12dBi
Frequency range: 700~2700MHz
2G, 3G, 4G, LTE
Magnetic foot
3M cable RG174 (diameter 2.8 mm)
Impedance: 50 Ohms
Connector SMA internal screw internal needle/TS9 male head/CRC9 male head
Height: 32 cm



309.00 kr
Item Number: GSM-ANT12OMNI+
Physically in stock
ADD TO CART
Quick view
3 dBi GSM antenna 3G and 2G, FME. With magnetic foot
3 dBi GSM antenna 2/3G with FME connector, Magnetic base, 9cm high, 2.5m cable

GSM antenna
3 dBi
3G/ 2G
FME
IP66 tight
2.5 m cable
Magnetic foot
Dimensions: 9.0 cm x 2.5 cm (H x foot diameter)

318.00 kr
Item Number: GSM-ANT2-FME
Physically in stock
ADD TO CART
Quick view
Quad Band Dome antenna 850/900 / 1800/1900 / 2170MHz. GSM Vandalsproof antenna, super robust, GSM / GPRS / AMPS / LTE
Outdoor Quad Band Antenna 850/900/1800/1900 / 2170MHz 2.5 dBi antenna dome, vandal proof round jet, 2.5m cable with SMA he

Vandal secure GSM dome dome antenna for hollow mounting
Quad band - 850/900/1800/1900 / 2170MHz
With 2.5 meters RG 174U cable - SMA he
ABS plastic - with rubber seal Ø47 x 15mm, M10 thread, 12mm
bandwidth ± 90/280 MHz
Gain 2,5dBi
vertical
Max wind speed 200km/h

167.00 kr
Item Number: GSM-ANT2V
Physically in stock
ADD TO CART
Quick view
5 dBi GSM LTE Omni antenna with magnetic base and SMA male connector
5 dBi GSM LTE Omni antenna, magnetic, 2.5M cable with SMA male connector

GSM Antenna to 5 dBi
Magnetic
2.5M cable
SMA male connector
antenna, from the foot 23 cm
Operating temperature: -40 ° to + 85 °

372.00 kr
Item Number: GSM-ANT5OMNI
On the way in
ADD TO CART
Quick view

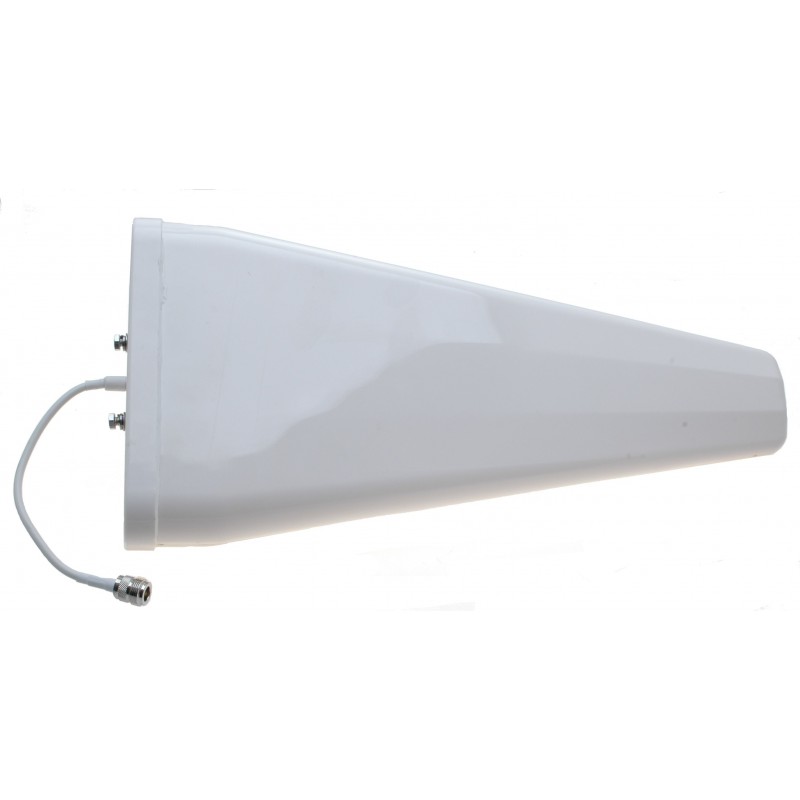

YAGI GSM / LTE antenna in the plastics dome (20 cm cable with N M) - Danbit A / S
GSM, LTE 11dBi logic YAGI antenna in plastic dome, 20 cm cable with N female, mastebeslag

Directional antenna - Yagi Type
2 bands 800-960 / 1700-2500MHz
angle: Horizontal 65 °, Vertical 55 °
11 DBI Outdoor logperiodisk
20 cm COAX cable with N- Type He
Dim: 446 x 210 x 65 mm
Weight: 900g
Max. Wind speed: 60 m / second
DC Ground - Transient Protection
Material: ABS
Masters with angle adjustment included

900.00 kr
Item Number: GSM-ANT11LOG
On the way in
ADD TO CART
Quick view
