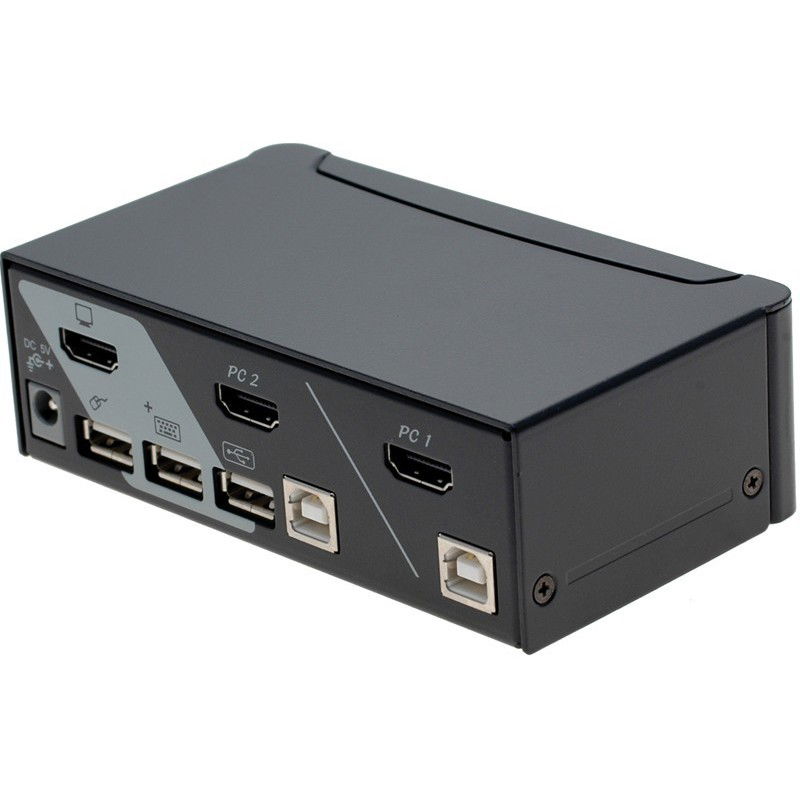

2 ports KVM omskifter med HDMI og USB

2 ports KVM switch, HDMI og USB
2 x USB til mus og keyboard
1 x USB til USB-enhed - transparant USB
Opløsning op til 1900 x 1200
Hot-key omskiftning eller med knapper på fronten
Kan anvendes som HDMI omskifter - her skal anvendes 5VDC/1A strømforsyning

$87.84
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number KVM2-HDMI-U-T
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Afstand Fra bruger til omskifter: op til 3 meter Fra omskifter til pc: op til 3 meter
Bemærk Nogle få musetyper kan have problemer med omskifterbokse på grund af manglende kompatibilitet. F.eks. kan der være problemer med Logitech trådløse mus og tastaturer. Skærmbillede kan forringes ved lange kabler, kombineret med høj opløsning.
Dimensioner 44 x 130 x 75 mm
Forsyning Ekstern strømforsyning er ikke nødvendig; forsynes gennem USB-porten på pc’en.
Kabel Kabler medfølger ikke, se tilbehør
Skærm Maks. skærmopløsning: 1920 x 1200 ved 60 Hz
Stik Mus, tastatur: 4x USB 2.0. Skærm: 2x HDMI
Type

Der skiftes mellem indgangene ved at benytte knapperne på fronten eller ved at benytte ”Hot Keys”. Omskifteren har desuden automatisk omskiftning, der kan indstilles til at kunne skifte til en anden pc, såfremt den nuværende ikke har haft aktivitet i valgte interval.
