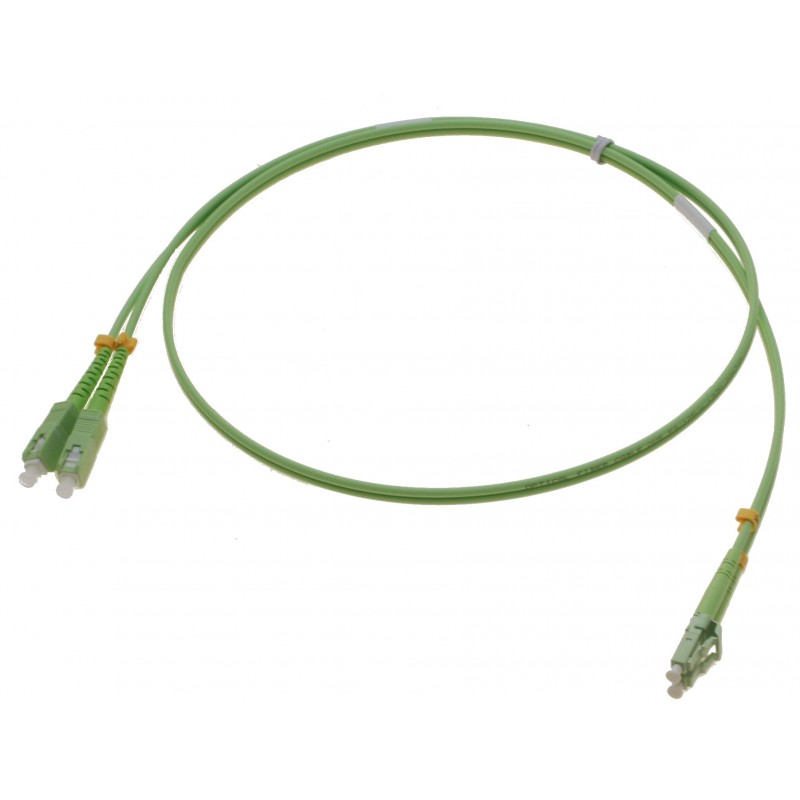

LC / SC fiber optic patch cable, multimode, duplex, LSZH, OM5, 3m
LC-SC fiber cable
Multimode
Duplex
2 x LC and 2 x SC plug, 50 / 125μm
OM5
LSZH
Lime
3m
$20.50
Excl. VAT
Quantity
On the way in
close
Specifications
| Farve | Green |
|---|---|
| Diameter | Core 50/125my |
| Kabel | 3m |
| Fibermode | Multimode |
| Fibertype | OM5 |
The OM5 Multi Mode fiber cable is at very high speeds of up to 550 meters.
OM5 fiber cables have a core of 50m and have a bandwidth of 4700MHz at 850nm.
Increasingly, Greater requirements for fiber speeds that are solved with better fiber cables. OM5 fiber cables are also called Wide Band Multi Mode Fiber. The OM5 generation of Multi Mode fiber cables works with wavelengths from 850nm to 950nm and supports Shortwave Wavelength Division Multiplexing (SWDM), which means that the utilization of fiber accounts is optimal. > Speed versus max. Length:
10Gbit / s up to 550meter
40Gbit / s up to 440meter
100Gbit / s up to 150meter.
To fully utilize the OM5 fiber cable, the SFP fiber-optic transceiver are equipped with a Vertical-Cavity-Surface-Emitting-Laser (VCSEL) laser.
