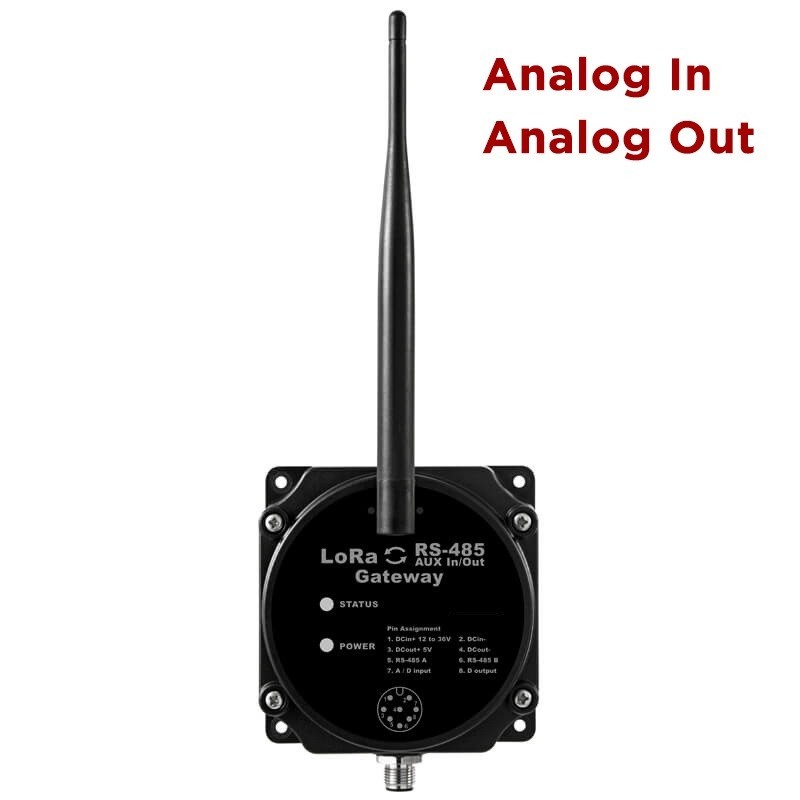

Industrial LoRa Wireless Gateway with RS-485 MODBUS RTU and analog/digital I/O

LoRaWan with stable connection to IoT units
Dual Band WiFi - 2 antennas with RSMA male
3 x 10/100/1000Base-T RJ45 LAN ports
1 x 10/100/1000Base-T RJ45 Wan-Port
1 x LoRa Antenne - 2DBI with SMA male
2 x DI / DO and 1 serial port (RS485) for Modbus applications
to EU 868MHz (SUB 1G) Frequency
8 Programmable Parallel Demodulation Roads
Static IP / PPPoE / DHCP Client for WAN
DHCP Server / NTP Client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm

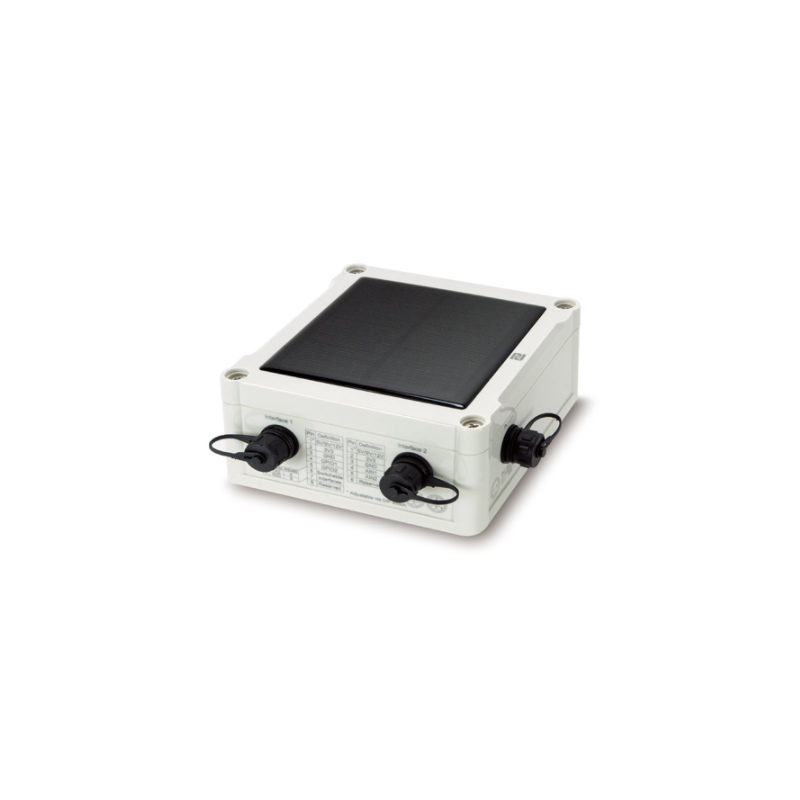

LoRaWan transceiver with 2 x digital inputs
LoRaWan transceiver with 2 x analog inputs 4-20mA / 0-10V
LoRaWan transceiver with relay output (SPDT)
Supports LoRa Class C protocol
Serial port: RS232 or RS485 (Transparent data)
Collect data sent to Lora-Gateway Controller
Frequency: 868MHz - Range Up to 10 km
Configuration Port: Micro USB
Operating temperature: -40 - +70°C
Supply voltage: 5 - 24VDC
Dim: 120 x 120 x 56 mm

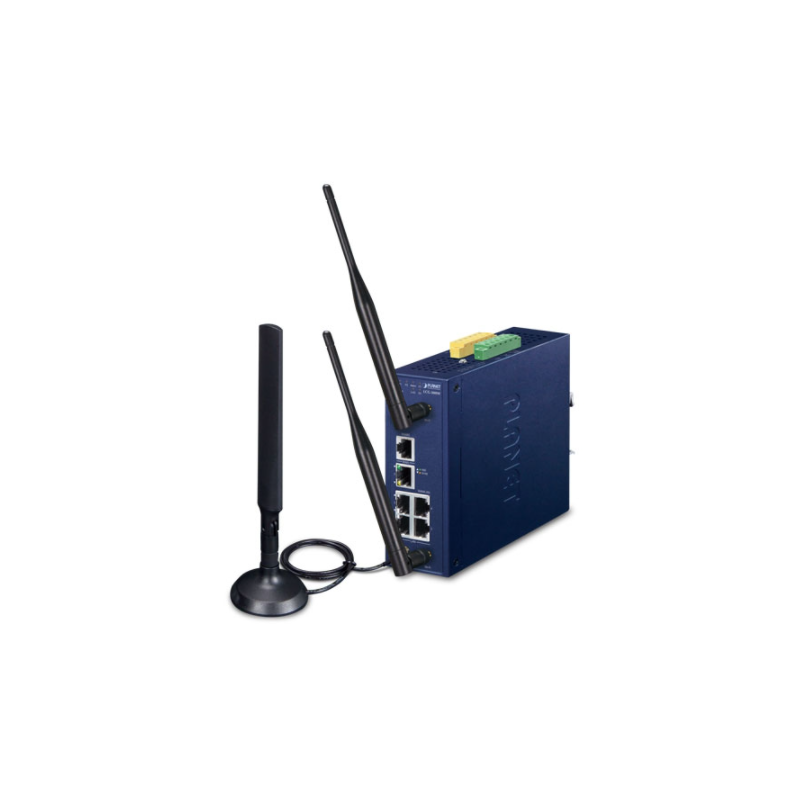

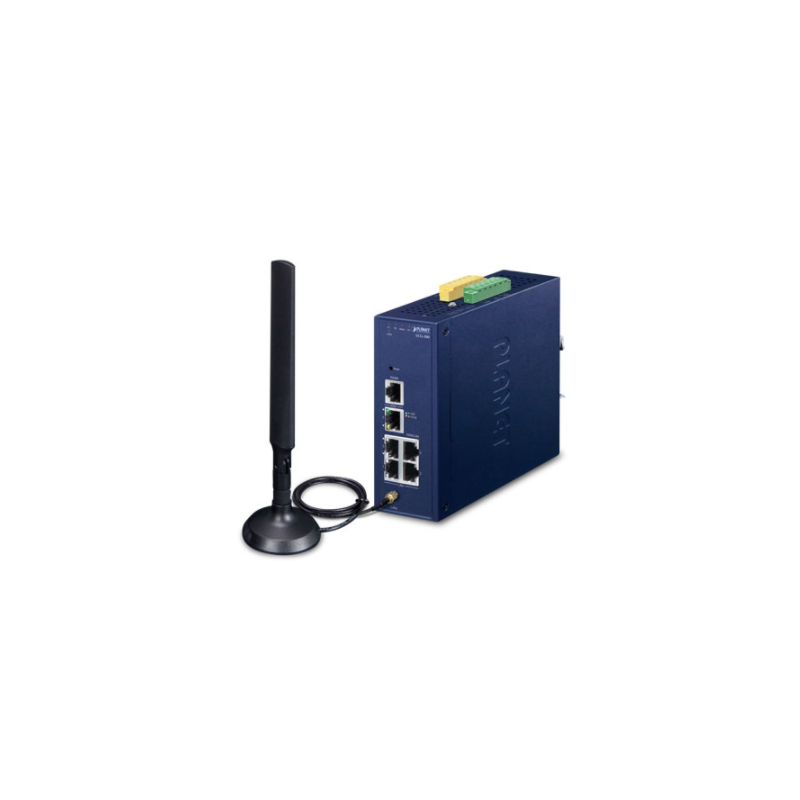

LoRaWan with stable connection to IoT units
4 x 10/100 / 1000Base-T RJ45 LAN ports
1 x 10/100 / 1000Base-T RJ45 WAN port
1 x LoRa antenna - 2DBI with SMA male
1 x Serial console Port (RS485)
2 x DI / DO and 1 serial port (RS485) for Modbus applications
For EU 868MHz (SUB 1G) Frequency
8 Programmable parallel demodulation paths
static IP / PPPoE / DHCP client for WAN
DHCP server / NTP client for LAN
Protocols: TCP / IP, UDP, ARP, IPv4, IPv6
port forwarding; Qos; DMZ; IGMP; UPnP; SNMPv1, V2C, V3
Dim: 135 x 135 x 50 mm
