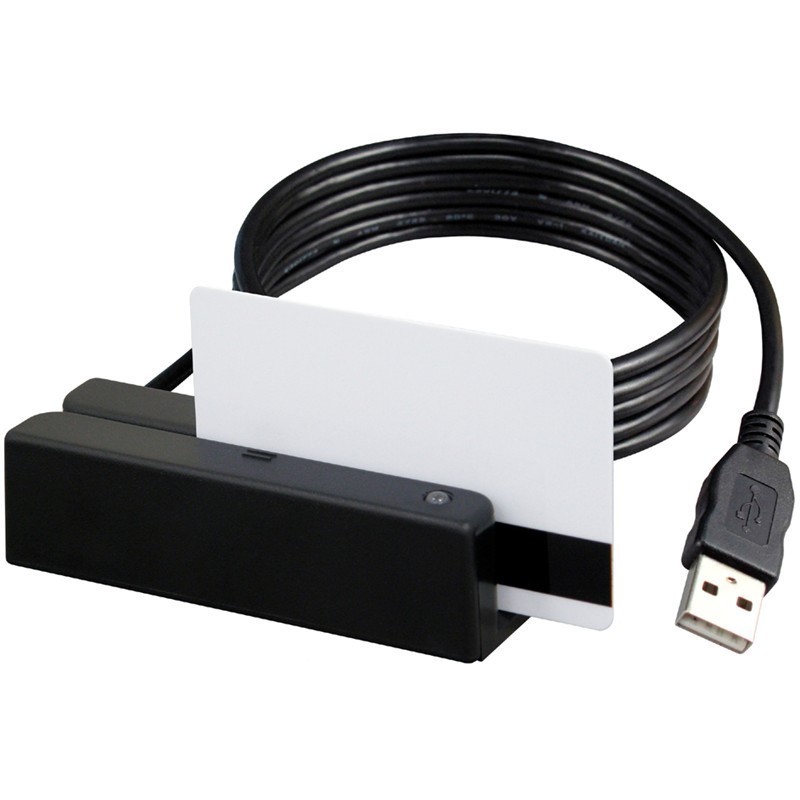

Reads tracks 1, 2, 3 To USB. 2 read heads. HID. Black
Can read maps where the magnetic strip turned toward or away from the user
HID - keyboard wedge
Connects to the USB port - but emulates a serial port, suitable for older software and newer PCs
MCR123S USB + connected to a free USB port and is seen by the operating system as a serial device. The device is automatically assigned an available COM port number, for example. COM3. Al Communications Option with the device then takes place using COM3.
Drivers manual and configuration software included.
Programs written for magnetic card readers for the serial port will function with this reader without changing software . Ideal for use of existing software on new PCs that are not provided with serial ports
Can read maps where the magnetic strip turned toward or away from the user
HID - keyboard wedge
ISO magnetic card with High Coat magnetic stripe.
Can be delivered with color printing for extra payment.
Cards with the same print for quantities of 25 or more. and up.
Price is per piece.
Reader/Writing Tracks 1, 2 and 3
Standards IBM, ISO, ANSI, DIN
USB With Emulation of COM Port
Dimensions 65mm × 215mm × 58mm
Supports only ASCII (no special signs)
Supported with 24VDC 2.2A power supply
Reads ISO tracks 1, 2 and 3
USB interface
Emulates a USB keyboard (HID)
Powered by the USB port
Reads e.g. health insurance card/health card - with æ, ø, å
Optional reading of tracks is possible with inserted end character
Omitting text in tracks is not possible.
Dimensions: L 137 x W 49 x H 50 mm
