Insert the DB9 female to RJ45 she
RJ45 PIN Assignments - colors:
1 Blue
2 Orange
3 Black
4 Red
5 Green
6 yellow
8 Brown
8 White

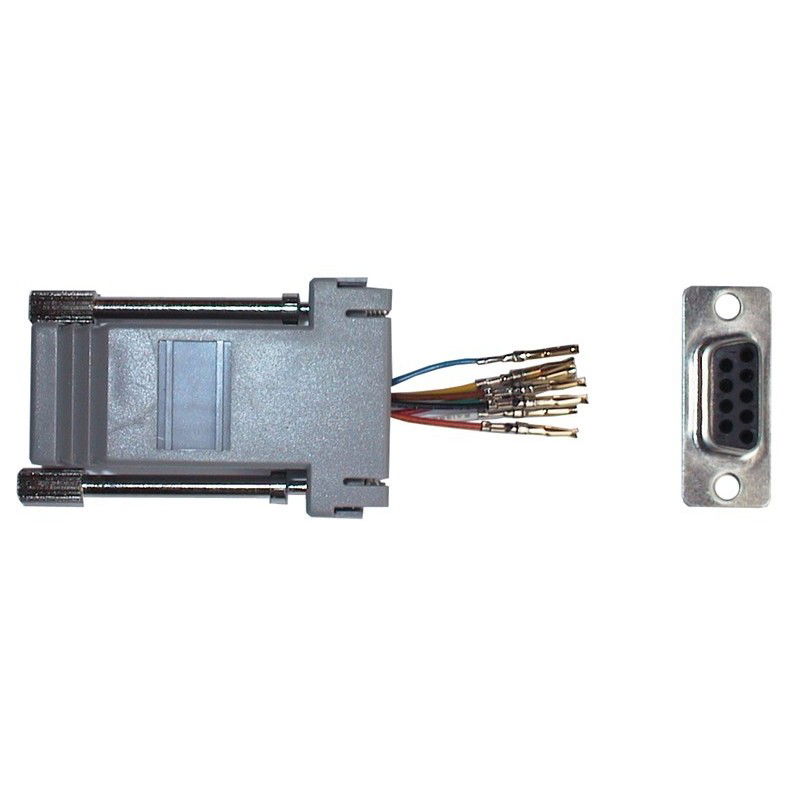

Konfigurérbart stik der har DB9 i den ene ende og RJ45 i den anden ende.
Med ledninger monteres de ønskede forbindelser i DB9 stikket. Ledningerne har påmonteret stik, så de bare skal sættes i de rigtige ’huller’.
