DB9 female to RJ45 female modular alignment connector with optional pinforbindelse
Insert the DB9 female to RJ45 she
RJ45 PIN Assignments - colors:
1 Blue
2 Orange
3 Black
4 Red
5 Green
6 yellow
8 Brown
8 White

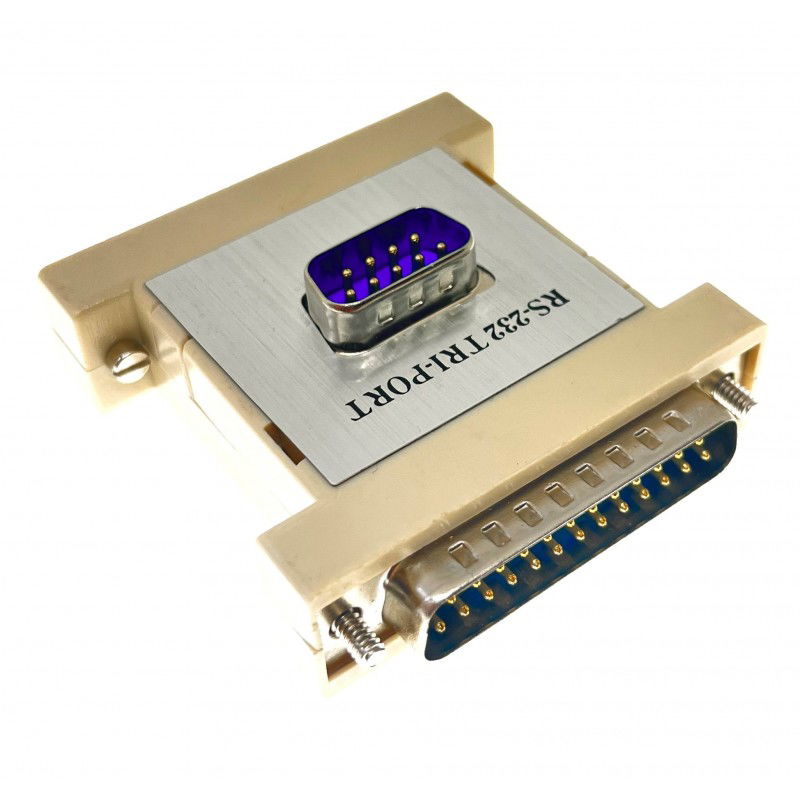

Sniffer for RS232 serial communication
With 1 x DB25 male and 1 x DB25 female - 1:1 review
Pick up from 1 x DB9 male connector
No analysis software included - additional 3rd party program
Passive intermediate adapter for e.g. to monitor communication on a serial connection.

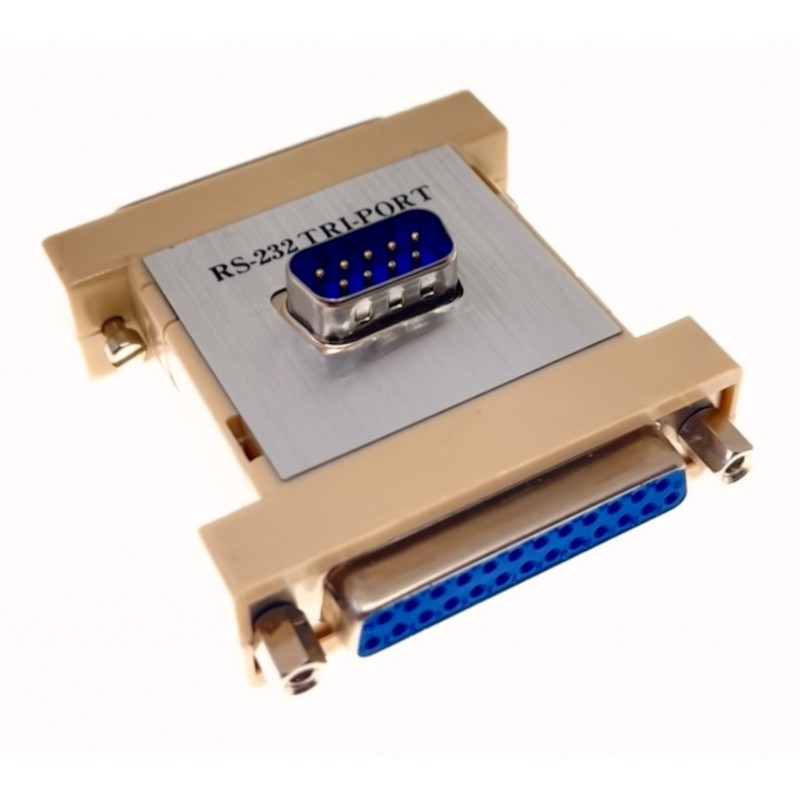

The unit consists of 1 x DB25 female connector to 1 x DB25 male connector with the possibility of analysis via 1 x DB9 male connector.
Insert the DB9 female to RJ45 she
RJ45 PIN Assignments - colors:
1 Blue
2 Orange
3 Black
4 Red
5 Green
6 yellow
8 Brown
8 White
Converts a DB9 male connector to a DB25 female connector and vice versa
Configurable DB9 HAN connector
RJ45 connector female to DB9 male
RJ45 pin connections - colors:
1 Blue
2 Orange
3 Black
4 Red
5 Green
6 Yellow
7 Brown
8 White
