Supports a PCI Express x1, Plug and Play (PCIe-7256)
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID

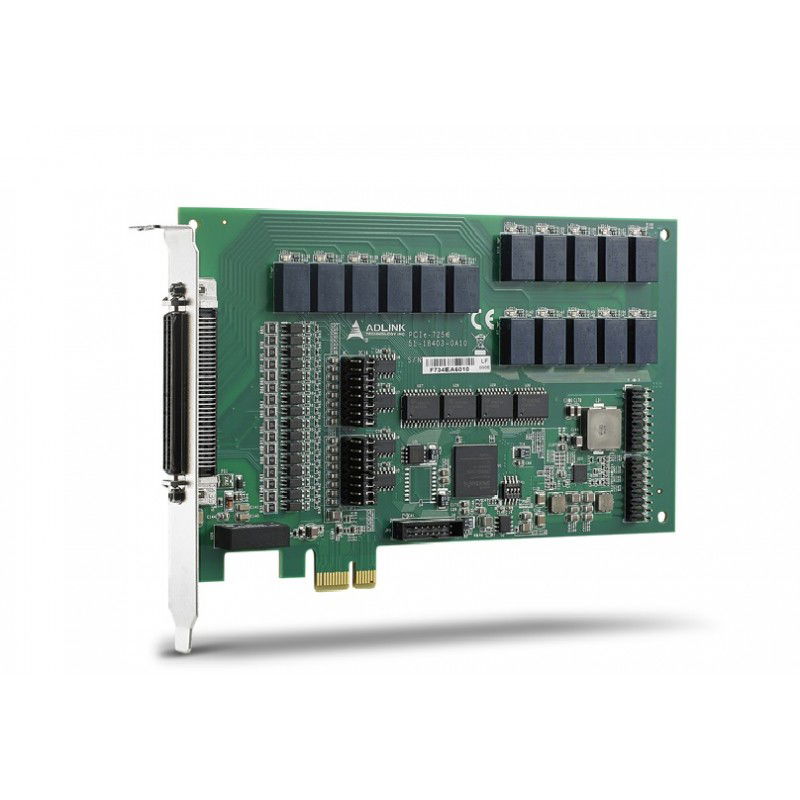

ADLINK's PCI/PCIe-7256 features all Form C type relays, ideal for device connection with on/off control. With latching relays, the PCI/PCIe-7256 further provides operating power conservation, while the status of each latching relay output is indicated by onboard LED. When the relay is in SET, its corresponding LED lights. Latching relays also feature unchanged status even when the system powered off, making the PCI/PCIe-7256 suitable for critical applications requiring output status to be maintained even under fault conditions. All digital input channels are non-polar and optically isolated, and may be set for optional use of RC filter. The PCI/PCIe-7256 also features a change-of-state (COS) function generating interrupt when any digital input changes state.
4-Port 10/100 / 1000T 802.3at PCI Express
PoE + (120W)
Intel I350 Controller to 4 x RJ45
Dimensions: 169 x 121 x 18 mm | weight 251 g
Operating temperature: -10 ~ 60 C
PCI Express card with 96 TTL I/O channels and 3 counters
X1 PCI Express interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Support Windows 7/8 X64/X86 and Windows 2008 R2
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCIe Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
