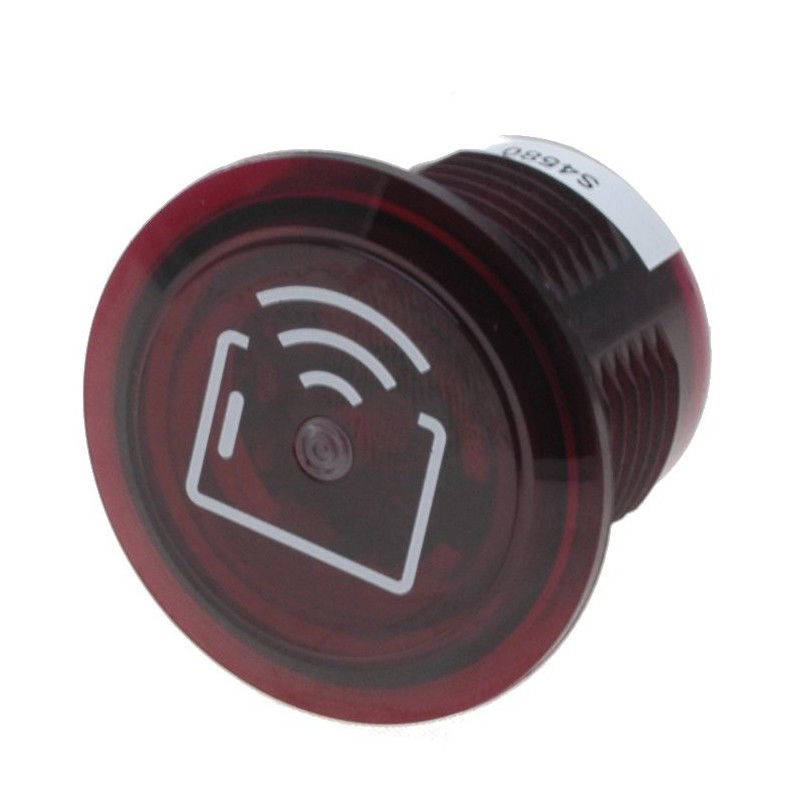

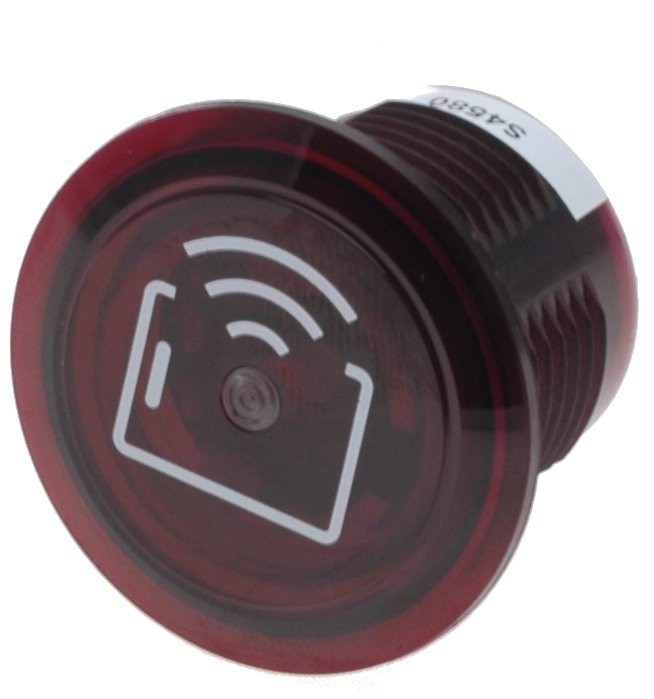

RFID Reader 125kHz EM Round, 40bit HEX, RS232, code is sent to the COM Port Register. 9 - 12VDC.

RFID 125kHz reader with RS232
EM 4xxx Standard Tag (40 bit HEX)
Mounting in Ø 31 mm Hole
Length from Resess: 27 mm
Resess Width: 40 mm
RS232 , 9600, N, 8, 1
9 - 12VDC / 50mA
Temperature: -10 - + 70 ° C
Material: PBC
IP54 from front

RFID-R4
534.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Attention: Not suitable for mounting on metal plate. Metal close to the reading coil decreases reading distance.
Tag ID code is placed in the COM port register

Montering
Skruehul og kabel ud på bagsiden
Rækkevidde
4 cm
