RFID EM-Marin and QR code reader
125kHz EM4100/4200
Reading as facing right
Built-in buzzer for sound notification
Can read multiple formats
With CPU watchdog
Power supply: 12V DC
Wiegand 26/34 bits

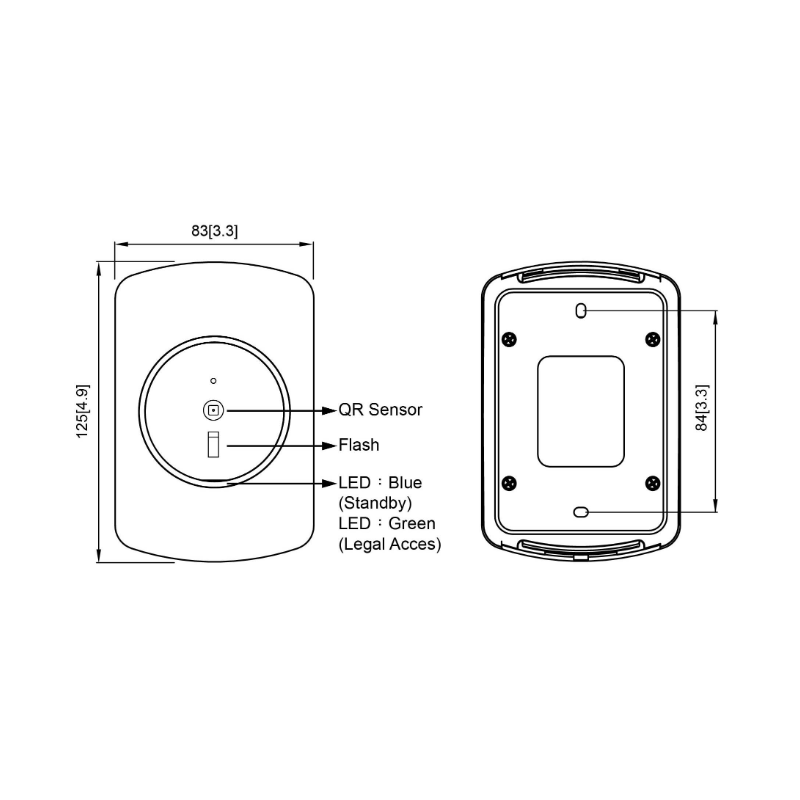

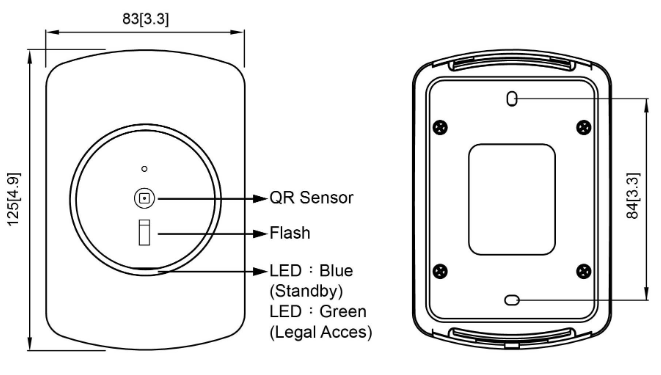

Dimensions: 125 x 83 x 30 mm

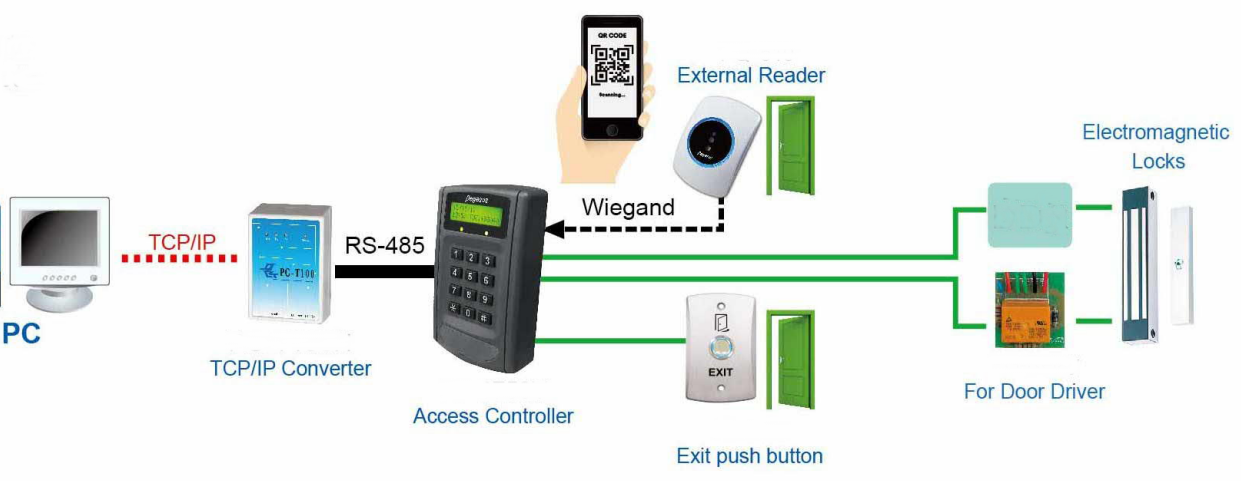

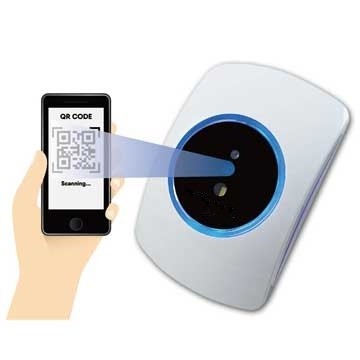

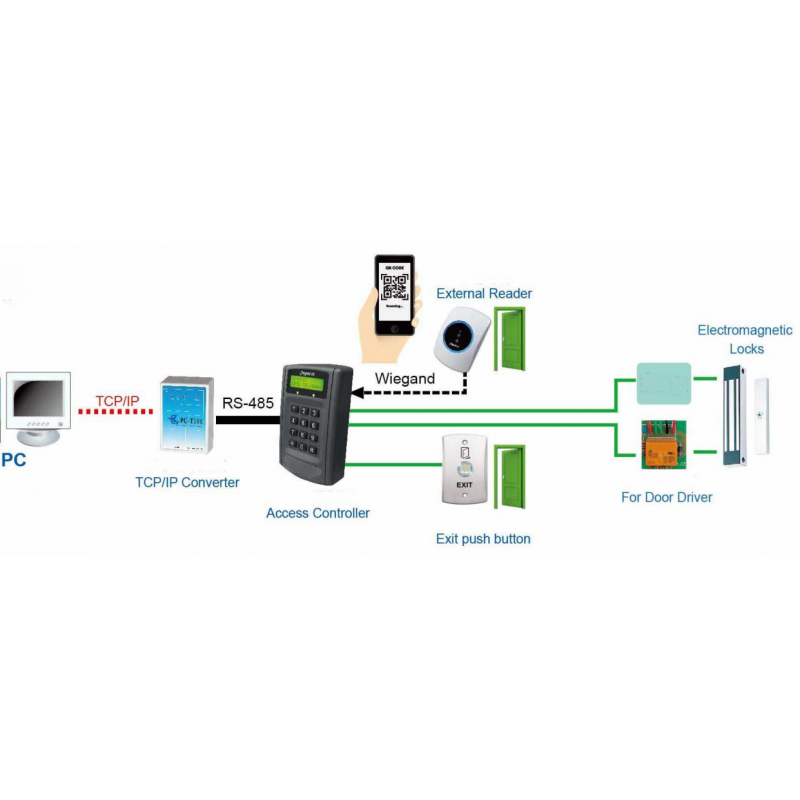

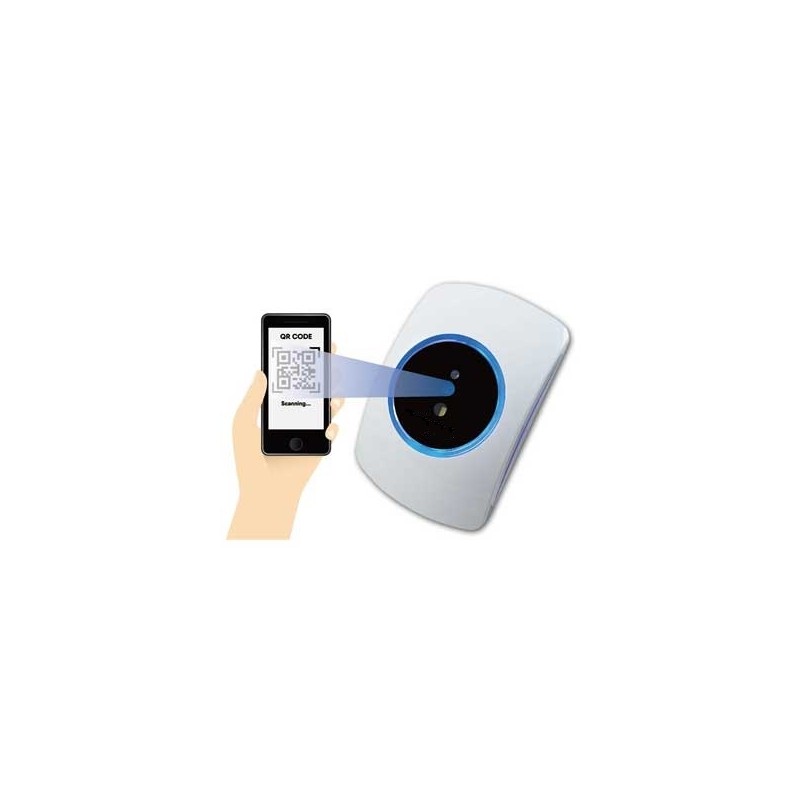

It can be connected to offline and online access control. Scan the QR code to register access permission. Built-in buzzer for audio notification. Used with EM-Marin card / QR code.
Tamper switch.
Specification
RFID frequency: 125kHz
Applicable map: EM-Marin
Output format (interface): Wiegand 2634bits
Mounting: Surface mounting
Power input: DC 12V
Farvebånd til 200 kort (til PRINT-ID/PRINT-ID-MAG)
Evolis R3011 color ribbon
Magnetic card 1/2/3 Tracks reader
RFID 13.56MHz reader / writer
IC Cards reader / writer
NFC reader
Does not support special characters like æ,å,ø...
Dimensions 160mm x 45mm x 45mm
SDK examples for developing applications
Win10, Win7, Vista, Win2000, XP, Linux
Opsætnings softwaren virker kun på en Windows XP pc der har en PS2 keyboard port
20 pcs. Mifare Transponder / TAG to Keychain
Mifare Classic 1K RFID TAG
Reading distance: 0 - 5 cm
ISO14443A
1 kilobyte Memory
768 byte free in 16 sectors / 4 blocks / 16 bytes
UID code is factory programmed
Gray key ring
Frequency: 13.56MHz
Material: ABS, IP68
