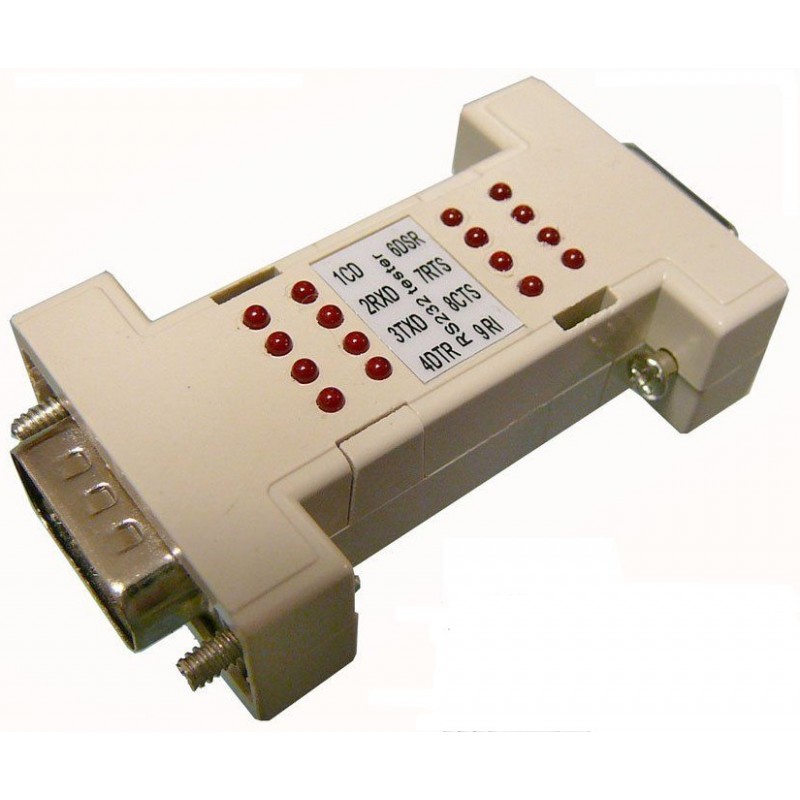

RS232 tester with LEDs for visual control of RX/TX and control signals

RS232 signal tester
DB9 male/female connector
Tests: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS and RI
Standard RS232 DTE and DCE connection
Does not require power supply

TEST-RS232+9
762.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Simple tester for troubleshooting RS232 devices. The tester is inserted into the cable between two devices.
LEDs – one for each signal – are used to analyze the connection.
RS232 tester with green / red LEDs. Color indication of the status of the signal lines.
Standard RS232 DTE and DCE connection.
DB9 female connector and DB9 male connector connection.
Tests: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS and RI.
Powered by the RS232 signal. Requires no power supply
