Optoisolated 3 x RS485 repeater, 1 to 3 RS485 bus splitter - 2-wire semi-duplex. Shares RS485 in 3 directions, DIN rail

Repeater and splitter of an RS485 signal
Up to 3 branches, as a star connection
It is very IMPORTANT to avoid bus reflections.
Use M485-REP3-I if the RS485 bus is to be split out for DIN assembly

M485-REP3-I
1,253.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

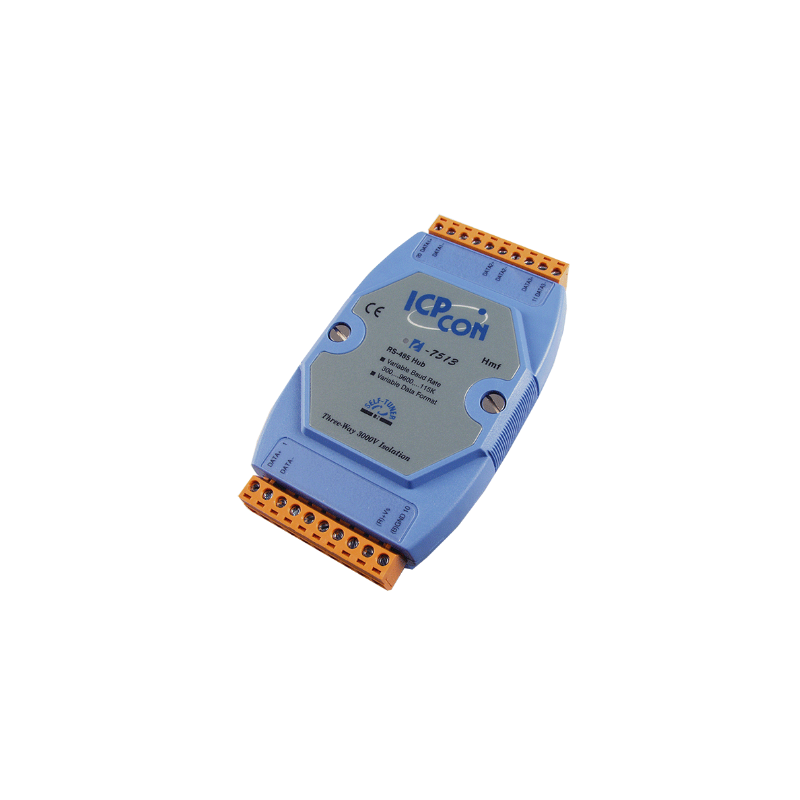

The I-7513 is a 3-ch RS-485 Active Star Wiring Hub.
The unit has 3 independent RS-485 output channels, each with their own driver, which can transmit signals across 1200 m of 2-wire pair-twisted cable on each channel

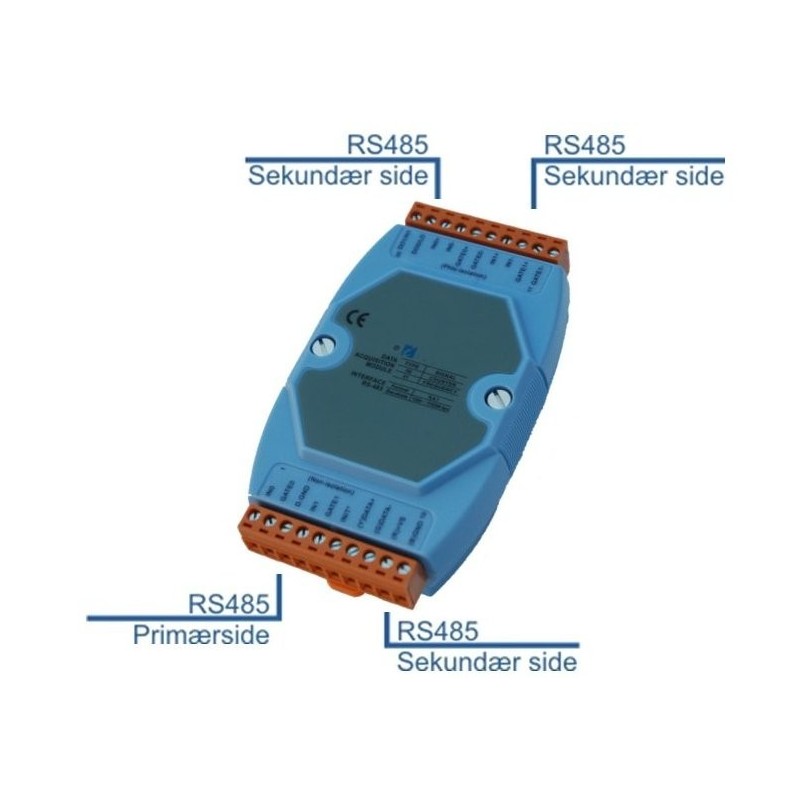

The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub
The isolation site of the I-7513 is located in the input and output interface circuit.
In other words, the I-7513 is a three-way isolation module.

Afstand
Op til 1,2 km
Forsyning
10 - 30 VDC, 2,2 W
Isolation
3000 VDC
Maks. hastighed
1,2 til 115,2 kbit/sek.
Stik
Skrueterminaler
