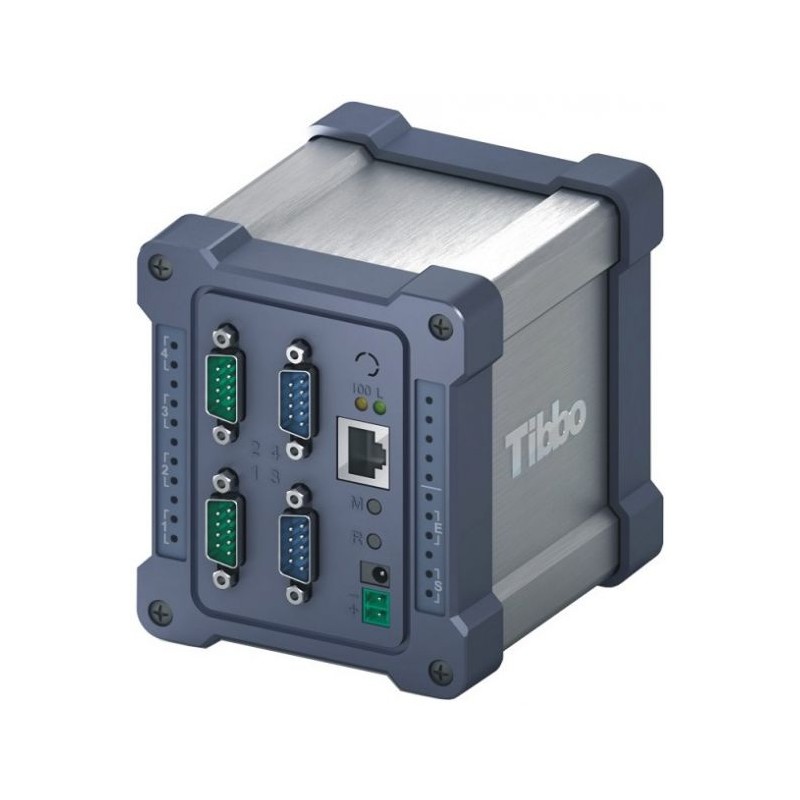

Industrial controller with four serial ports and development software.
With the ETH-SER4T , many different functions can be built, e.g. baud rate conversion between 2 serial ports, or collection of data from 4 serial ports, which is then forwarded via the network. Many examples and demo programs are included, which make it easier to write your own programs. The device is programmed via the network. It is also easy to update multiple devices from the same physical location.
There is a debug function, which i.a. allows program execution by stepping through the source text step by step.
If you have experience with Visual Basic or just BASIC, you can quickly use the supplied 'BASIC' programming language. It is created for the development of event-driven applications. The EPC-SER4T can be mounted on a DIN rail and has a front cover so that the connectors are protected against dust and liquid.
CPU:
88 MHz based on EM1000
RAM:
20 kilobytes
Flash frame
1MB
Network:
1 x 100 Mbit Ethernet
Serial ports:
4 x RS232 serial ports (max. 920 Kbit/sec.),
supports the handshake signals RTS, CTS, DTR and DSR
Software:
Software kit for developing own programs under Windows, 2000/XP and Vista
The package includes, among other things, objects for handling:
- TCP/UDP connections
- Serial communication
- Flash disk routines with "flash file system"
- I/O lines and ports
Web server:
Integrated web server that supports html files
Supply:
9 – 25 V DC max. 500 mA. 12 V DC power supply is included, the power can also be connected via screw terminals
Operating temperature:
0 - 40 o C, 10 - 90% humidity non-condensing
Goal:
104 x 90 x 100 mm (H x W x D) excl. DIN rail mount and dustproof front
Weight:
1.5 kg
