DOM 3½" IDE 40PIN, solid state disk for direct connection to the IDE port.
Capacities from 256 MB to 32 GB on the standard IDE interface appear as normal. hard drive in BIOS.
Fanless
Support VESA mounting hole
Compact Flash Slot
On-board 10/100Mbps LAN
PXE diskless boot
Ultra Low Power (15 Watts)

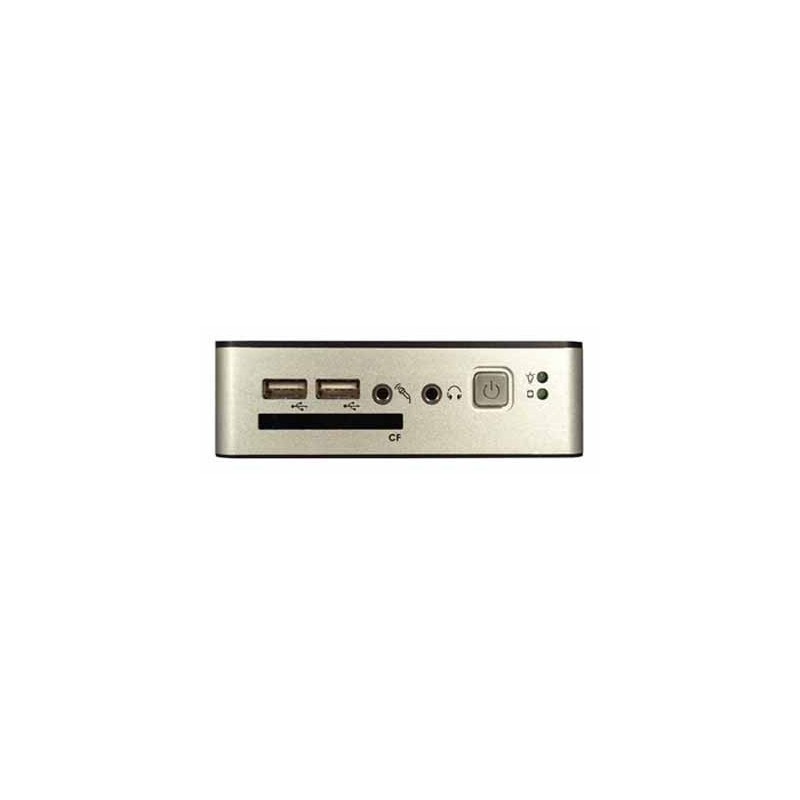

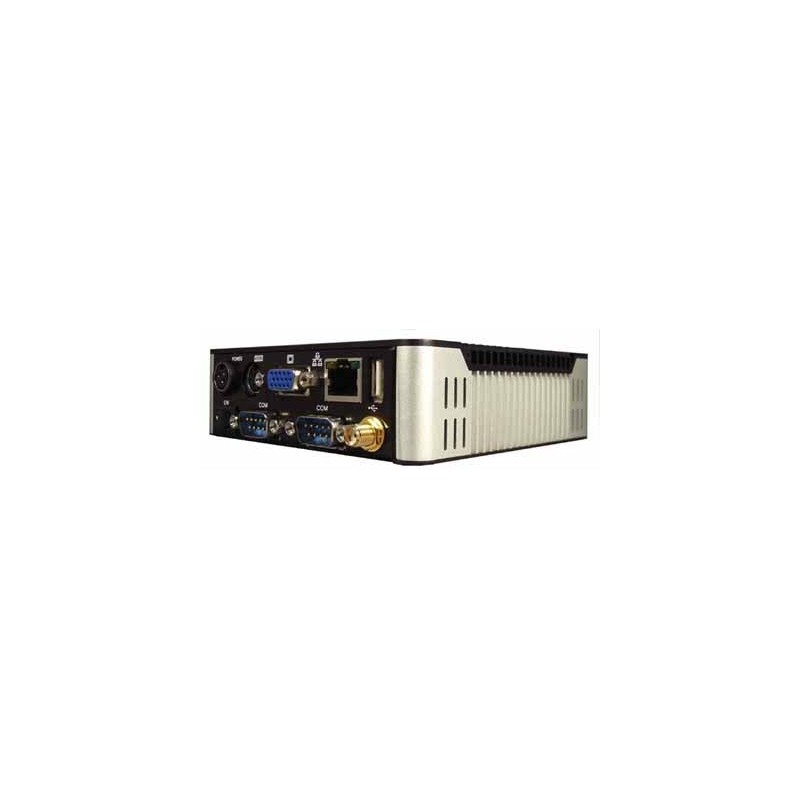

EBOX 2300
Processor
Vortex86 SoC-200MHz (Fanless)
Memory
128MB SDRAM onboard
Flash Memory
Support EmbedDsik 32MB to 2GB
VGA
Shared System Memory Area 8 MB
External 15-pin D-type female VGA connector
Ethernet Interface
Realtek 8100B single chip x 1 Throughput: 10/100 Mbps
IN ISLAND
Enhanced IDE interface, 44pin box header x 1
Type I/II Compact Flash Slot x 1
Mini PCI Socket x 1 (Optional)
RS-232 Port x 2 (Optional)
RJ-45 Ethernet Connector
External 6-pin Mini DIN for PS2 Keyboard
External 6-pin Mini DIN for PS2 Mouse
Audio
AC97 CODEC, Fully Compliant with AC97 V2.1
Phone Jack for MIC-in and Line-Out
USB
3 connectors (USB 1.1) (2 on Front)
Power Requirements & Management
Power Push Button x 1
Single Voltage +5V @2A, w/ ACPI function Support
Dimensions
115 x 115 x 35 mm
Weight
505g
Operating Temperature
0 ~ +60°C operating temperature
Certificate
CE, FCC
Capacities from 256 MB to 32 GB on the standard IDE interface appear as normal. hard drive in BIOS.
AT bus
500 VDC photo-isolation protection
one channel strain gauge input channel
Built-in 1 KB FIFO
voltage for loadcell : 12 V, 50 mA
Maximum gain up to 40,000
Programmable 12-bit resolution ,DC offset voltage (0 ~ 5 V)
Second order low pass filter build-in
Direct connection to strain gauge type loadcell
8-channel 12 ~ 24 V isolated digital input
7-channel isolated open-collector digital output
Programmable 8-bit LED indicator.
Command set programming
Rest storage
1/2 "
CS lens,
6 mm
