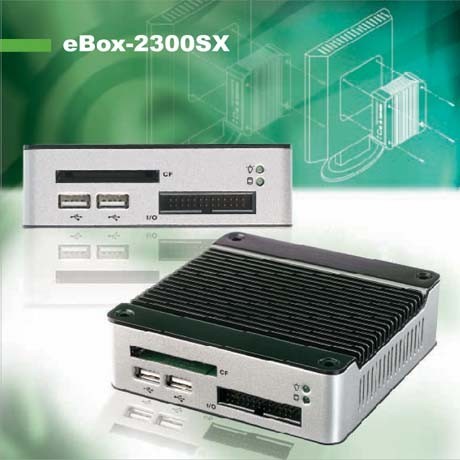

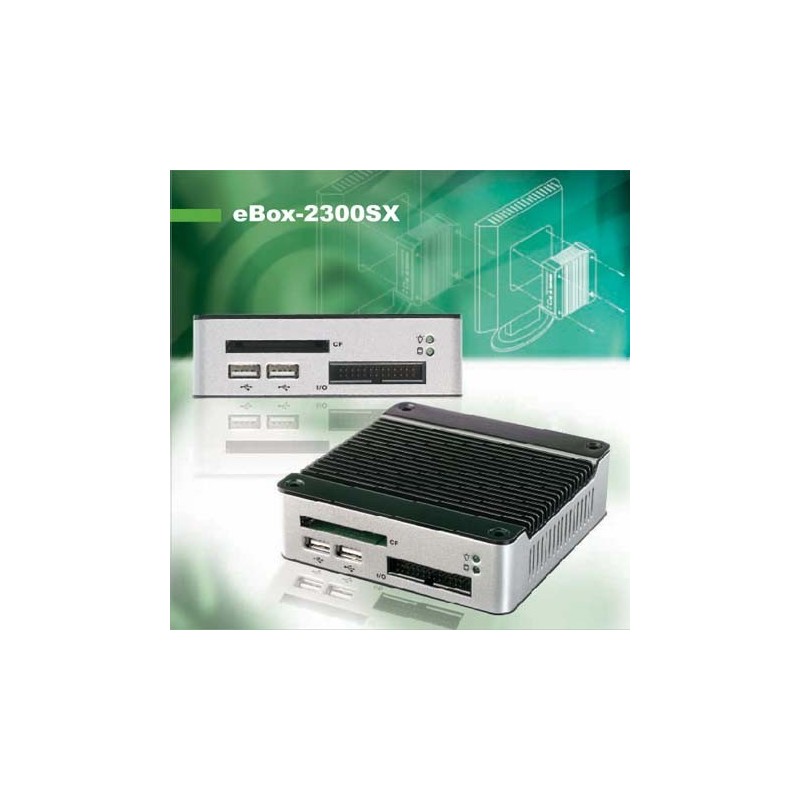

EBOX-2300SX-LS Stock: Embedded PC with Linux RDP client
EBOX-2300SX-LS
Processor
MSTI PSX-300 SoC (Fanless)
Memory
128MB DDR2 onboard
VGA
XGI Z9S with 32MB DDR2
External 15-pin D-type female VGA connector
Ethernet Interface
Integrated 10/100 Mbps LAN
I/O
Enhanced IDE interface, 44pin box header x 1
Type I/II Compact Flash Slot x 1
Mini PCI Socket x 1 (optional)
RS-232 Port x 2 (optional)
24-bit GPIO (optional)
RJ-45 Ethernet Connector
External 6-pin Mini DIN for PS2 Keyboard and Mouse
USB
3 connectors (USB 2.0) (2 on Front)
Power Requirement
Single Voltage +5V @ 2A
Dimensions
115 x 115 x 35 mm
Weight
505g
Operating Termperaturet
+5 ~ +50°C operating temperature
Certificate
CE,FCC
