GPIB - IEEE488 interface card ISA - Remaining stock
Axiom AX5488
IEEE-488 (GP-IB) interface card (IEEE-488.1)
NEC-chip PD7210
21 firmware commands
over 300kByte/s
DMA 1-3
IRQ2-7
with Basic, C, Pascal
Windows driver

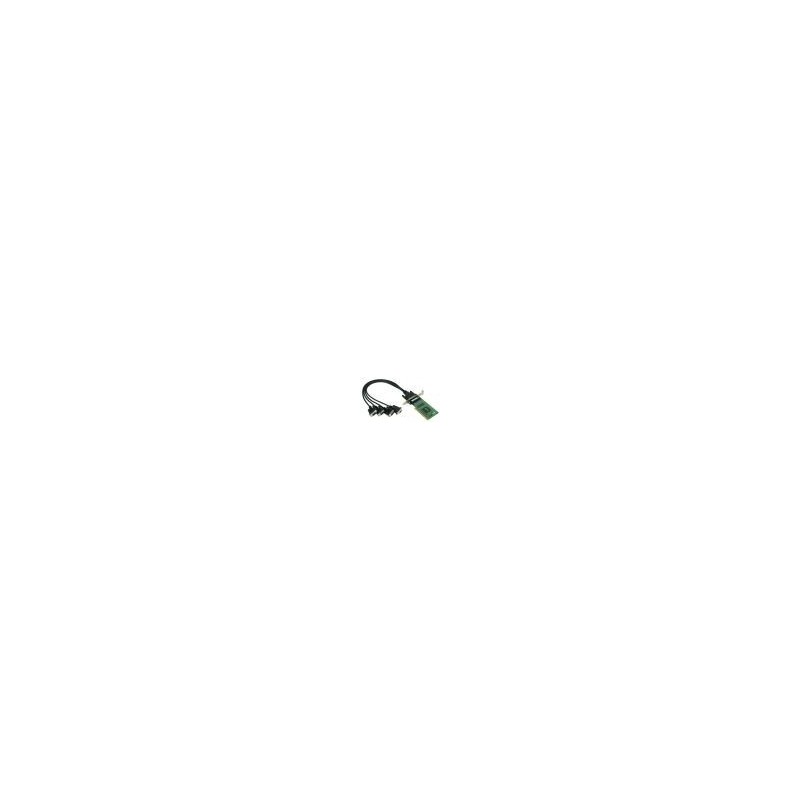

Moxa: CP104UL-DB9
Hardware
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connectors CP-104UL: DB44 female
CP-104JU: RJ45 x 4
Serial Interface
Number of Ports 4
Serial Standards RS-232
Max. No. of Boards per PC 4
Serial Line Protection
ESD Protection 15 KV on the board
Performance
Baudrate 50 bps to 921.6 Kbps
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
I/O Address Assigned by BIOS
IRQ Assigned by BIOS
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Driver Support
Operating Systems Windows 9X/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 x86/x64, FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7, Solaris 10 x86/x64
Note Please refer to Moxa's website for the latest driver support information.
Physical Characteristics
Dimensions CP-104UL: 64.4 x 120 mm (2.53 x 4.72 in)
Power Requirements
Power Consumption CP-104UL: 120 mA @ +5 V
Axiom AX5488
IEEE-488 (GP-IB) interface card (IEEE-488.1)
NEC-chip PD7210
21 firmware commands
over 300kByte/s
DMA 1-3
IRQ2-7
with Basic, C, Pascal
Windows driver
8-ports managed switch
DSL / Cable VPN Router
IEEE 802.3, IEEE802.3u
4 x 10 / 100M Ethernet RJ-45 ports
1 x 10 / 100M WAN RJ-45 port
1 x RS 232 dial-up backup port
DDNS, UPnP
Up to 32 IPSec VPN tunnels
Supply: 12V DC, 1.2A
AD konverter, 2 AD Kanaler 12 bitars til parallell
