4 Ports KVM switch
built-in Ethernet 10 / 100Mb
2048 x 1536 resolution
Controlled via hot key
2 x USB A, W (F) - console | 1 x HDB- 15, blue (she) - console
1 x mini stereo jack, green (female) - console
1 x mini stereo jack, pink (female) - console to 4 x SPHD-15, green (she ) - KVM ports to 4 x mini stereo jack, green (female) - KVM ports to 4 x mini stereo jack, pink (female) - KVM ports
2 x USB A white (female) - USB hub
1 x RJ11 (black) - firmware to 4 x Push buttons for switching ports
Supply voltage: 5.3V DC
Operating temperature: 0-50 degrees
Dimensions: 27.00 x 8.80 x 5.55 cm
must be used USB mouse and keyboard. There are two USB ports for sharing USB devices between PCs. There can be connected to the USB hub if to be coupled more than two units.
is built 3- or 5-port 10/100 Ethernet HUB.
Display Max . Screen resolution: 2048 x 1536 at 60 Hz

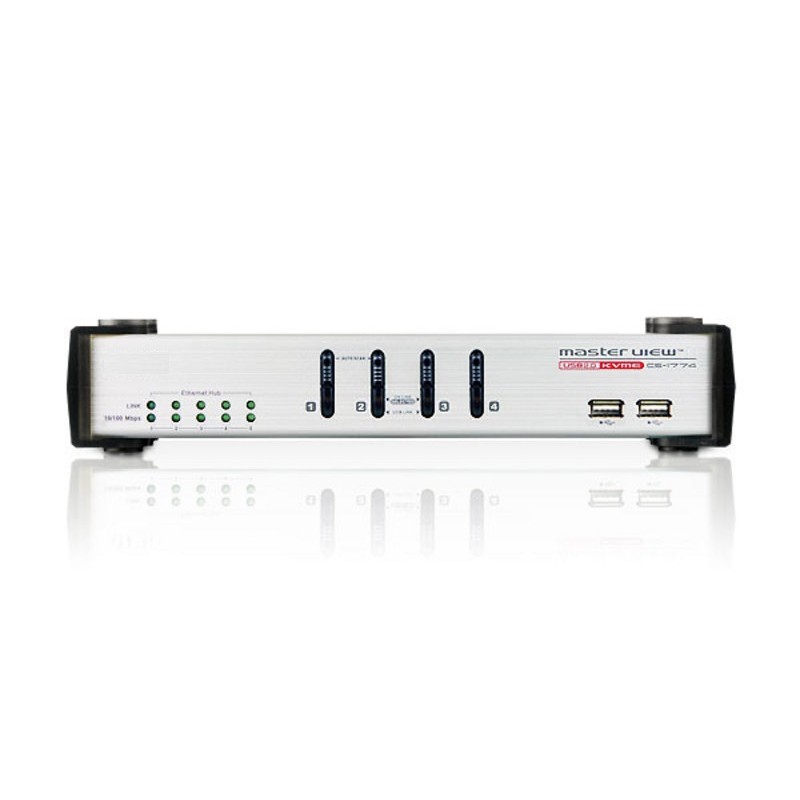

Other: Switching between inputs using the buttons on the front or the 'Hot Keys'.
USB KVM and Audio can be switched independently from eachother; For example. used KVM from a PC and USB from another.
Note: A few mouse types may have trouble switch boxes because of lack of compatibility. Eg. there may be problems with Logitech wireless mouse and keyboard.
Distance: From the user to switch and from switch to PC: Up to 5 meters

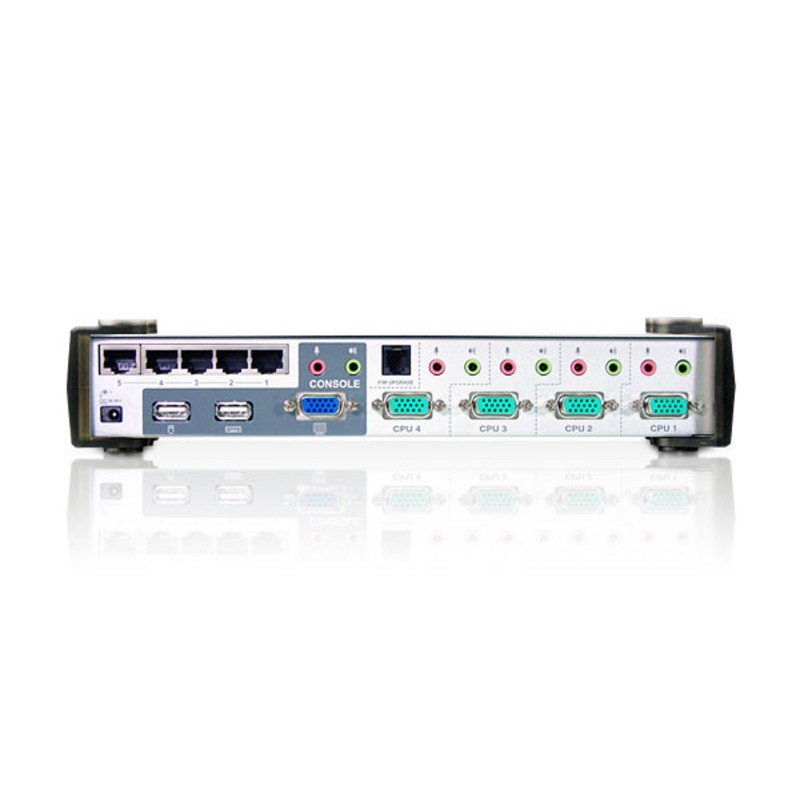

Connectors :
User Input: Mouse, keyboard: 2 x USB type A
Monitors: 1 x DB15HDM
Audio: 2 x mini Jack
USB devices: 2 x USB type A
PC inputs: Mouse, keyboard, display: 4 x DB15HDM for octopus cable +
Audio: 4 x mini Jack 10/100 Ethernet hub: 3 or 5 x 10/100 Ethernet HUB
Power supply: 230 VDC - 5.3 VDC 2,4 A Power supply included.
target: 55 x 270 x 85 mm (H x W x D)
