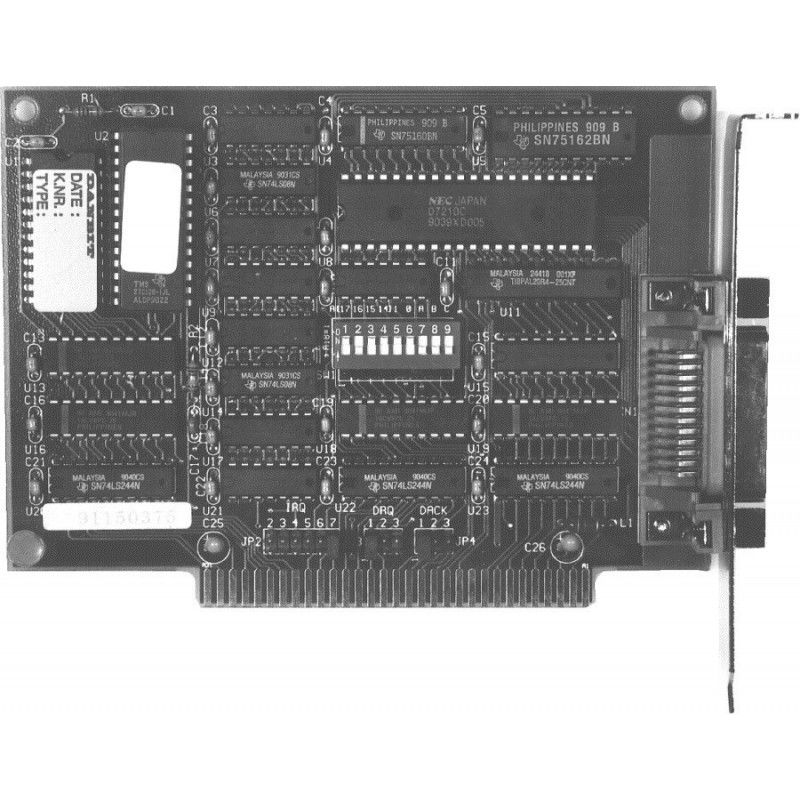

GPIB - IEEE488 interface card ISA - Remaining stock

Axiom AX5488

IEEE-488 (GP-IB) interface card (IEEE-488.1)
NEC-chip PD7210
21 firmware commands
over 300kByte/s
DMA 1-3
IRQ2-7
with Basic, C, Pascal
Windows driver

GPIB2
3,843.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Onboard firmware ROM callable for user´s application program

Complete Listerner/Talker/Controller (LTC) capacity ising NEC uPD7210 GPIB TLC chip

Data trasfer rates 300K bytes/sec

Half-sized board

Choise of 6 interrupts enabling/disabling

6 interrupt leverls

3 DMA channels

Dimension: 127x107 mm
