Axiomtek AX10424 PC104 with 24bit DIO and 3 CTC EOL Brand new in stock
AXIOM AX10424

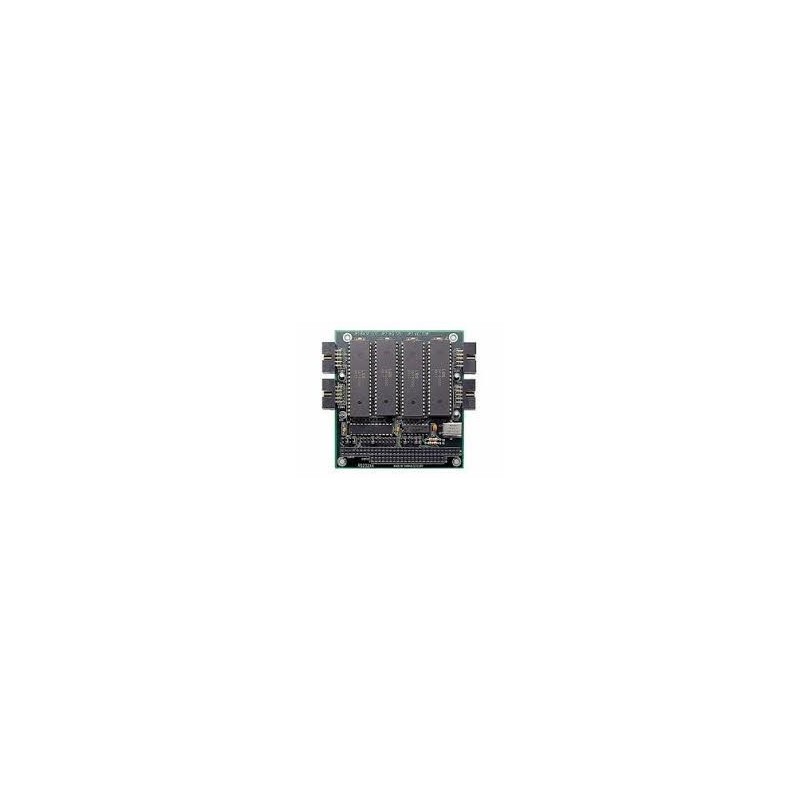

4 RS232 ports for PC/104, with 16550 UARTs, ICOP-1800
4 RS232C asynchronous ports with 4 16550 UART
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD
IRQ : 2,3,4,5,7
I/O address : 100H to 300H
Max Baud rate: 115.2Kbps
Supplied without cables (10-pin to RS232 port)
Current consumption : 250mA @ 5V
Dimensions: 90 (L) x 96 (W) mm.
Weight: 80g
Operating temperature: -20 - +55°C
AXIOM AX10424
1U Rackmount Server Chassis for full size PICMG 1.0 Single Board Computer, 2 PCI Slots, LCD Module, ATX Power Supply, Black, RoHS
Chipset: Embedde Vortex86 166MHz System-on-Chip CPU, Real Time Clock with lithium battery backup
BIOS: AMI BIOS
Enhanced IDE interface
I/O: IrDA pin-header for wireless communication
Parallel Port x 1
RAM Socket: 144 pin SODIMM Socket supports PC133 SODIM up to 128MB.
RS232 port x 1
USB ports x 3
Last stock product is EOL!
