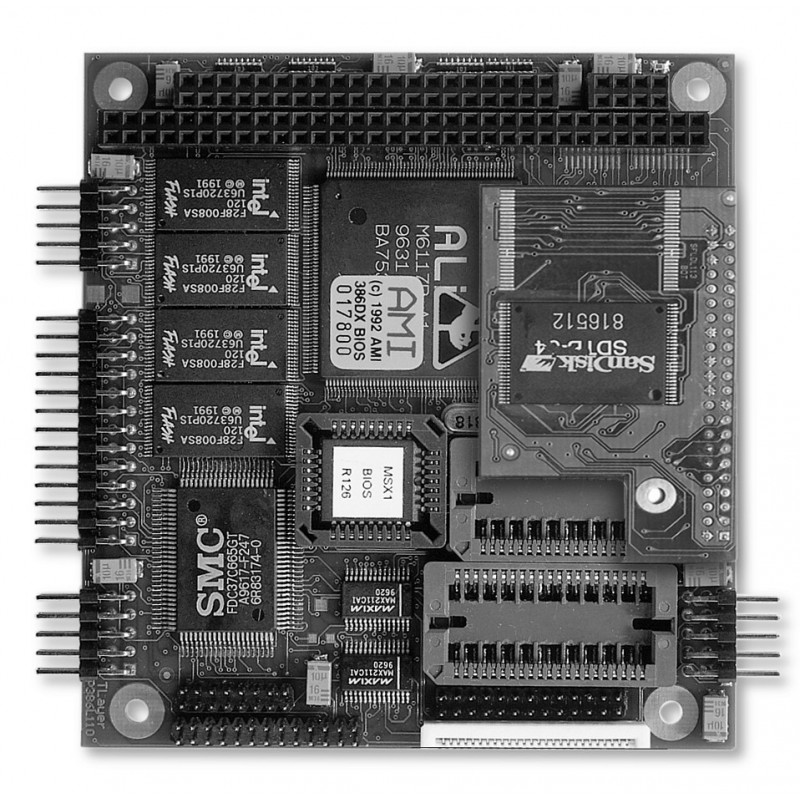

386SX module with flash disk, Jumptec: 01003-0100-24-0
With 80386SX-24
AMI Bios and "setup data" in FLASH memory
DRAM from 1 to 8 MB using standard ZIP modules soldered into the module
All standard I/O functions for:
AT keyboard, floppy disk, IDE hard disk, 2xRS232 with FIFO, bidirectional printer port, clock and calendar with battery backup.
Cyris87SLC co-processor is optional
Extended temperature range 0-60 C
(OK ram installed)
EBOX-2300SX-LS
Kan benyttes hvor den ordinære netspænding (230V AC) ikke
er tilgængelig f.eks. i biler eller på skibe.
Moxa 8-32 port ISA RS232 intelligent serial board with DB25F ports
4-port RS232 PCI/ISA card
Bus: PCI ver. 2.1 (32-bit
Up to 921.6 Kbps
Splitter cable not included!
DB37 can be used for 4xDB9M or 4xDB25
EOL no longer in production! last pcs in stock
