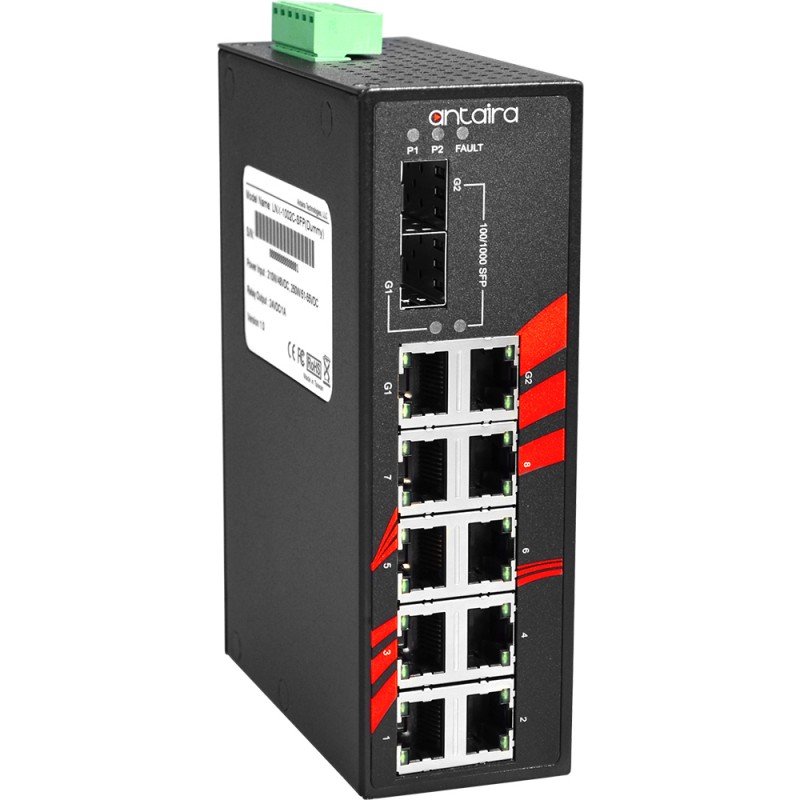

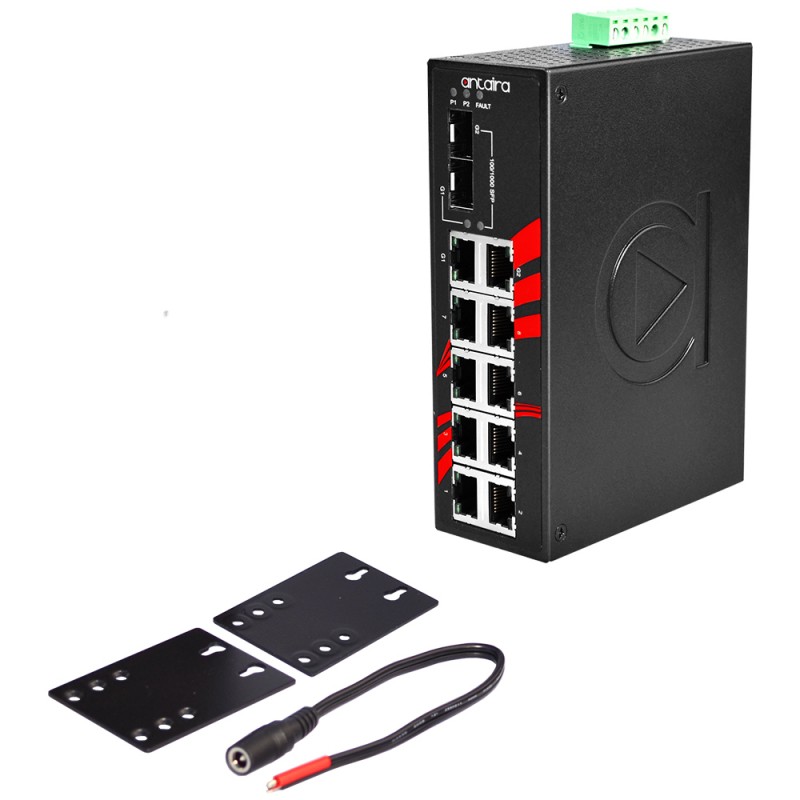

10-Port Industrial Unmannaged Switch, 2 FTP Ports

Supporter 8-Port 10 / 100Tx
2 Gigabit Combo Ports
6 x RJ45 Port 10 / 100Tx
2 x 10/100/100 RJ45
2 x 100/1000 SFP Slots
Supporter Auto MDI / MDI-X
Non-Blocking Switching Fabric
8K MAC Address
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Redundant Power Input Design: 12 ~ 48VDC
1 x built-in relay Output for Power Failure warning
IP30 Rugged Metal Case Design

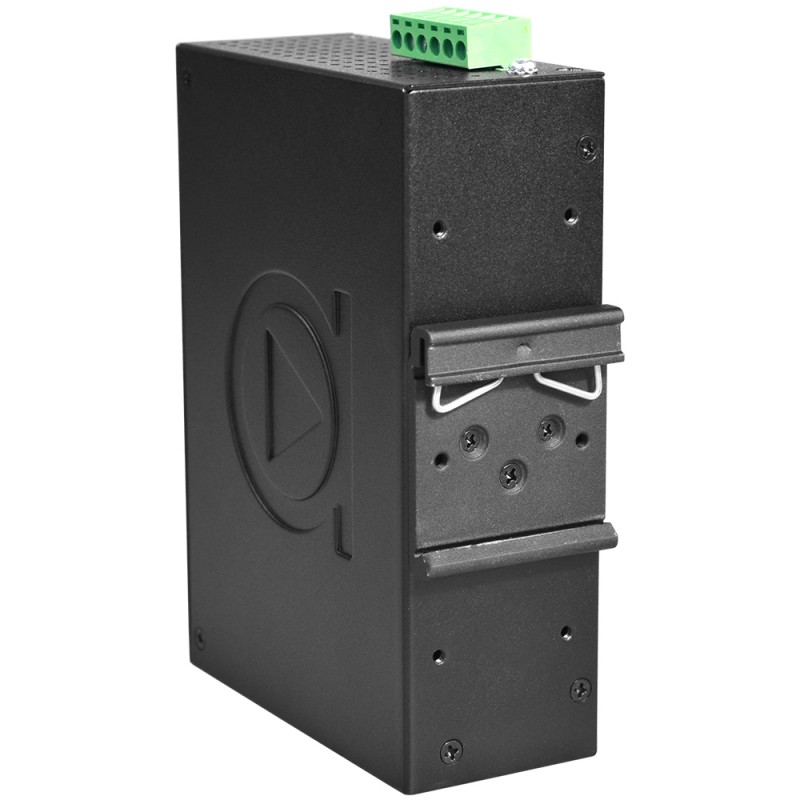

DIN rail and wall mounting
Operating temperature STD: -10 ° to 70 ° C

ANR-LNX-1002C-SFP
3,637.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Approval
EMI, EMS, FCC Class A,
Buffer
4Mbps (buffer)
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, UL Class 1 Division 2, ISA 12.12.01
Dimensioner
46 x 99 x 142 mm (W*D*H)
Driftstemperatur
STD: -10° to 70°C
Forbindelse
1 removable 6-contact terminal block
Luftfugtighed
5 to 95%, (non condensing)
Compositions
Metal, IP30 beskyttelse
Netværk
10Base Tx: 2-pair UTP/STP Cat. 3,4,5 100Base Tx: 2-pair UTP/STP Cat. 5 1000Base Tx: 2-pair UTP/STP Cat. 5/5E
Porte
6*RJ45 Ports w/10/100Tx , 2 *RJ45 Ports w/10/100/1000TX Ethernet and 2*100/1000 SFP Slot
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber
Strømforbrug
10W
Strømforsyning
12~48VDC, Redundant Input
