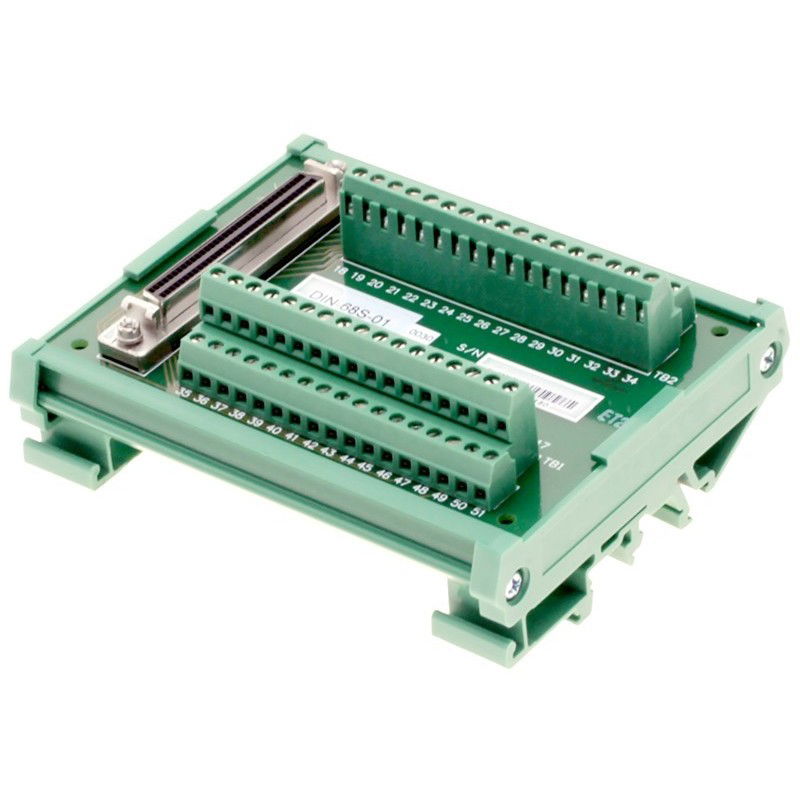

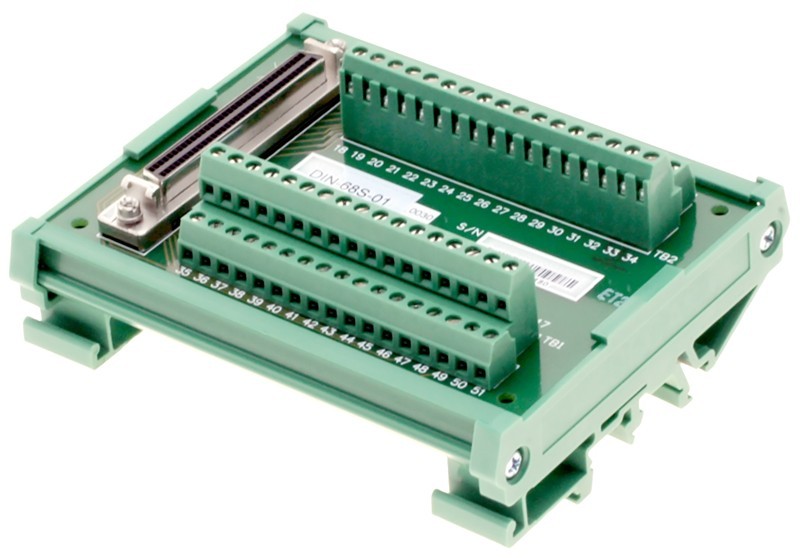

Adlink DIN-68S-01
Terminal card
On-board connector
68-pin SCSI-II female
103 x 85 x 46.2 mm (W x L x H)
Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting
LVD Wide SCSI cable with 2 x mini DB68 male connectors
Double terminal board with 2 x 20 screw terminals
2 x 20 pole IDC male connector
For DIN rail mounting
Incl. x 1m flat cable IDC20 female to IDC20 female
148 x 70 mm (W x L)
Terminal board with 37 screw terminals
DB37 - SUB-D she and he
For DIN rail mounting
114 x 49 x 44mm (L x W x H)
Passer til USB-DIO24
24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)
