SCSI II cable, Mini DB50 male, Mini DB50 male, 0.5 meter
Order item:
Long delivery times may occur
Minimum order size may apply
SCSI-II cable with 2 pcs. mini DB50 male plug with clip

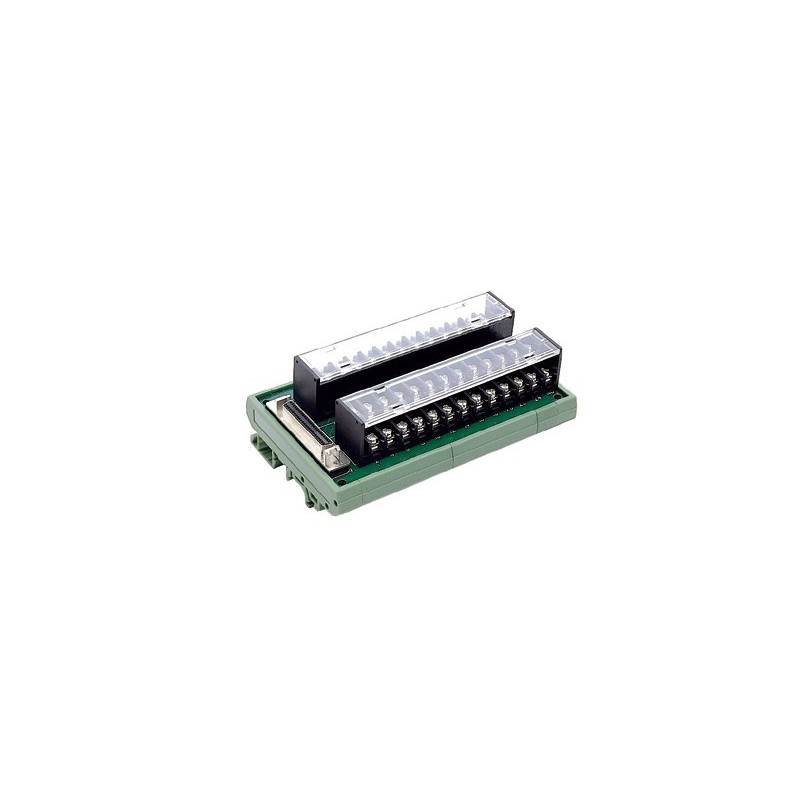

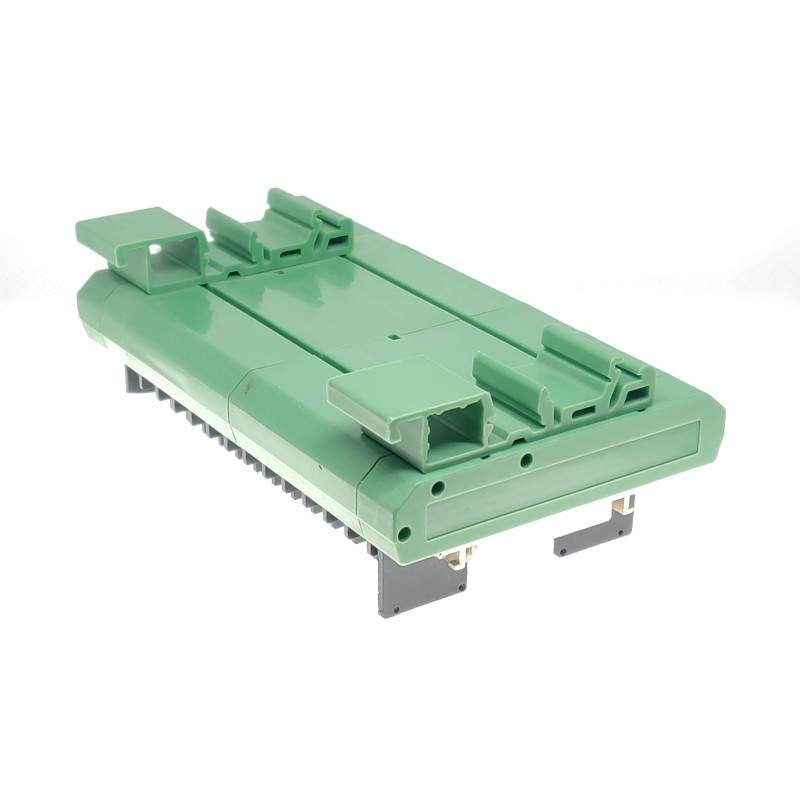

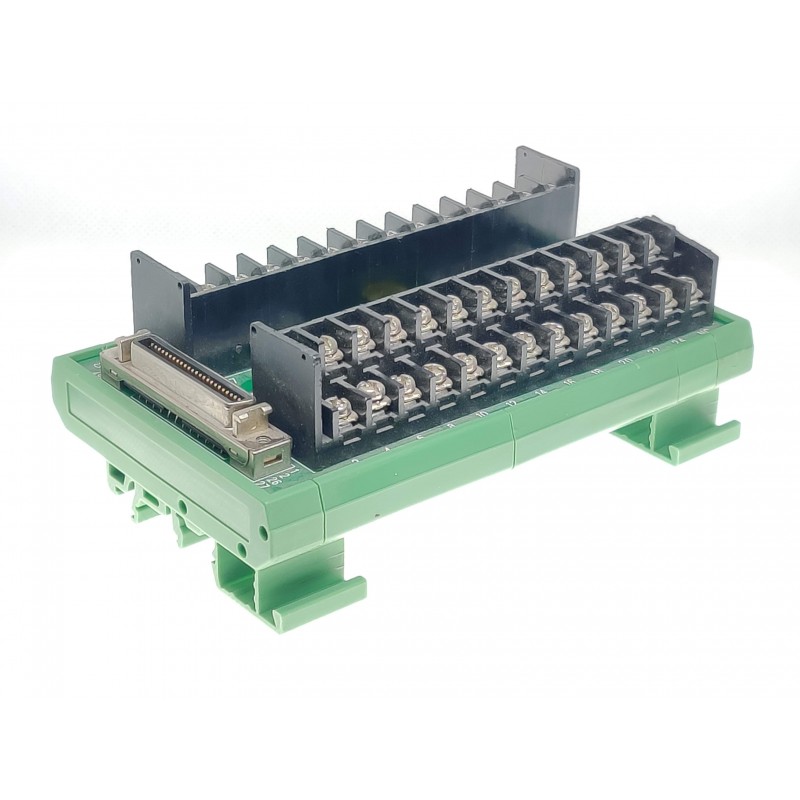

Adlink DIN-50S-01 (G)
Terminal card with screw terminals
50 pin SCSI II female connector
For DIN rail mounting
125 x 85 x 50 mm (W x L x H)
Terminal Block Interface Module 50-pin SCSI-II TB with DIN rail excl. Cable
Order item:
Long delivery times may occur
Minimum order size may apply
SCSI-II cable with 2 pcs. mini DB50 male plug with clip
24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)
Adlink DIN-50P-01
Terminal Boards
On-board Connector
1 x 50-pin SCSI II
103 x 85 x 43 mm (W x L x H)
Terminal board with 37 screw terminals
DB37 - SUB-D she and he
For DIN rail mounting
114 x 49 x 44mm (L x W x H)
Double terminal board with 2 x 20 screw terminals
2 x 20 pole IDC male connector
For DIN rail mounting
Incl. x 1m flat cable IDC20 female to IDC20 female
148 x 70 mm (W x L)
