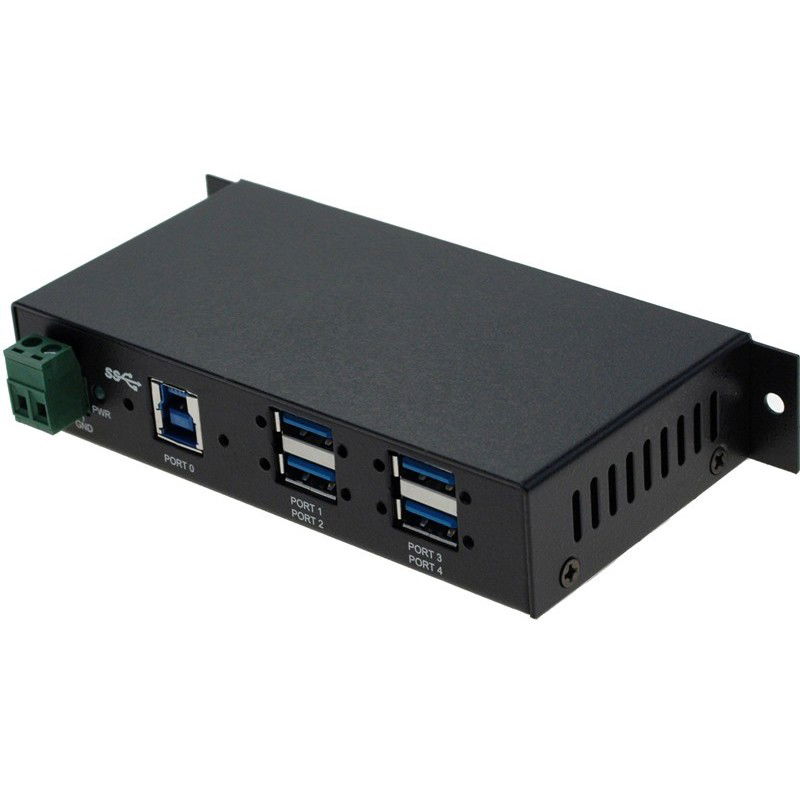

4 port USB 3.0 HUB for DIN rail for 7 - 24VDC external power supply. DC from USB port can be disconnected - see text.

4 port USB 3.0 HUB with DIN rail mounting
Can be powered from 7-24 VDC
Provides good noise immunity
Up to 900mA per port. by external supply.
USB cable for PC included
Voltage ONLY from terminal - int. jumper on DIS
Voltage from USB and clamp - int. jumper on ENA

1,150.00 DKK
Tax excluded
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Can be powered from 7-24 VDC, for attachment to wall, panel or table.
Complies with USB specifications 1.1 (Hi-Speed), 2.0 (Hi-Speed) and 3.0 (Super-speed); max. 5 Gbit/black/USB3.0
Screws and brackets for mounting on a DIN rail are included
Can provide up to 900mA per port. by external supply.

Note: Internal jumper is on DIS - means it is ONLY powered from the DC terminals.
Internal jumper on ENA is supplied with voltage from USB or DC terminals. If the DC on the terminals is below 5 volts, it is supplied with power from the USB port if the jumper is on ENA.

14,25 x 6,52 x 2,63 cm (H x B x D)
0 - 55º C
Spændingforsynes med 7-24 VDC via skrueterminal eller fra USB porten direkte. Strømforsyning medfølger ikke. Evt. brug DC24V625MA-D
Understøttes af Windows 98, ME, 2000, XP, Vista, Windows 7 og 8
4 x type A hanstik og 1 x type B hunstik
