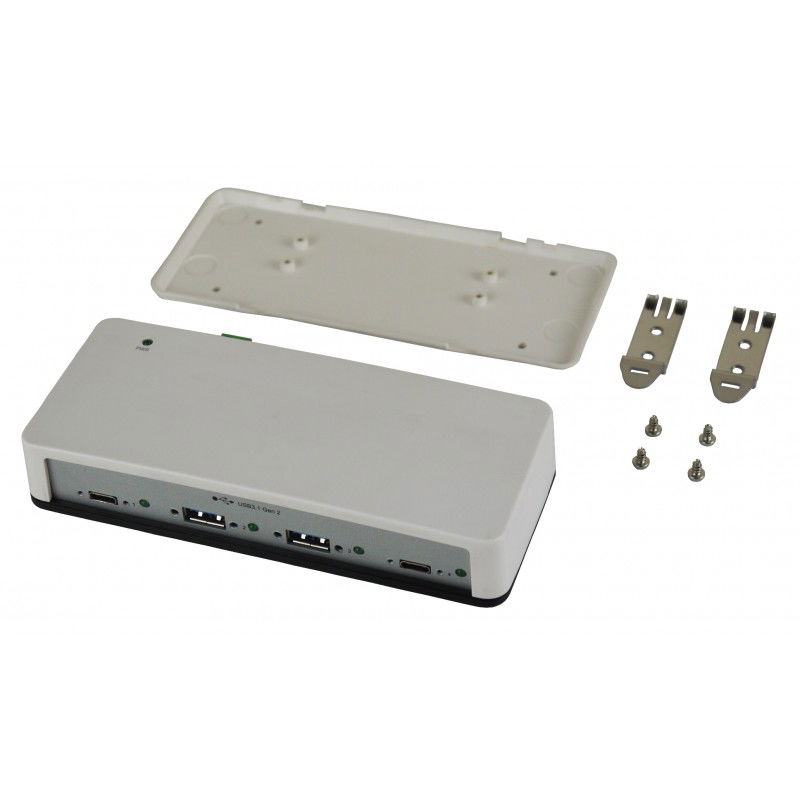

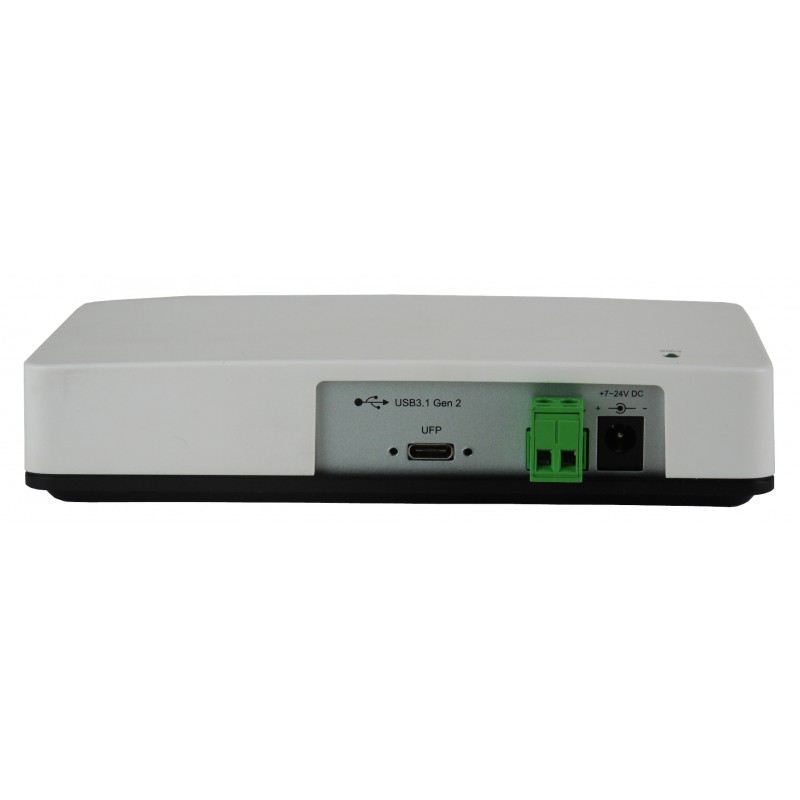

4 port USB 3.1 Gen 2 HUB, 2 x USB-A, 2 x USB-C, 10 Gbit/s DIN mounting

4 port USB 3.1 Gen 2 Hub
2 x Type-A, 2 x Type-C, 1 x Type-C Upstream
For DIN-Rail or Desktop Mount
Supports: 10Gbps (SS +) , 5Gbps (SS), 480Mbps (HS), 12Mbps (FS), 1.5Mbps (LS)
Power supply: + 7 ~ 24VDC (12V, 1A included) via DC plug or terminal block
Power per port: 0.9A at the same time
Backwards compatible with: USB 1.1, 2.0, 3.1 Gen 1
Temperature range: 0 ~ 55 ° C
Humidity: 5 to 95% RH
Dimensions: 151.1 x 62 x 34 mm

60.48 €
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number USB3.1HUB-2A2C
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Andet 0,9 A output pr USB downstream port
Dimensioner 151,1 x 62 x 34 mm
Kompatibilitet USB 1.1, 2.0, 3.1 Gen 1, Gen 2
LED LED indicator for hver USB port
Luftfugtighed 5 to 95% RH
Maks. hastighed 10 Gb/s
Montering DIN skinne eller Desktop montering
Porte 2 x USB-A, 2 x USB-C, 1 x USB-C (Upstrean)
Strømforsyning +7~24VDC (12V, 1A medfølger) via DC stik eller terminal block
Temperatur 0 ~ 55° C
USB USB 3.1 Gen 2

USB3.1HUB-2A2C is a USB 3.1 Gen 2 hub. USB3.1HUB-2A2C has 4 downstream ports, 2 x USB-A and 2 x USB-C.
