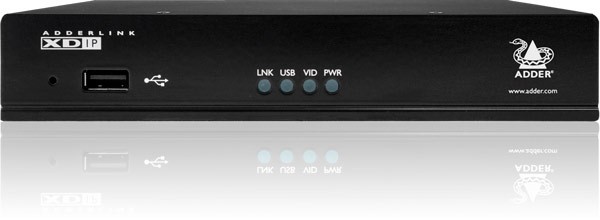

HDMI KVM extender over IP med lyd og USB

Digital KVM over IP
High performance DVI-D
1 x 10/100/1000 mbps Ethernet
Kan forsynes via PoE
EDID management
3 x USB 2.0

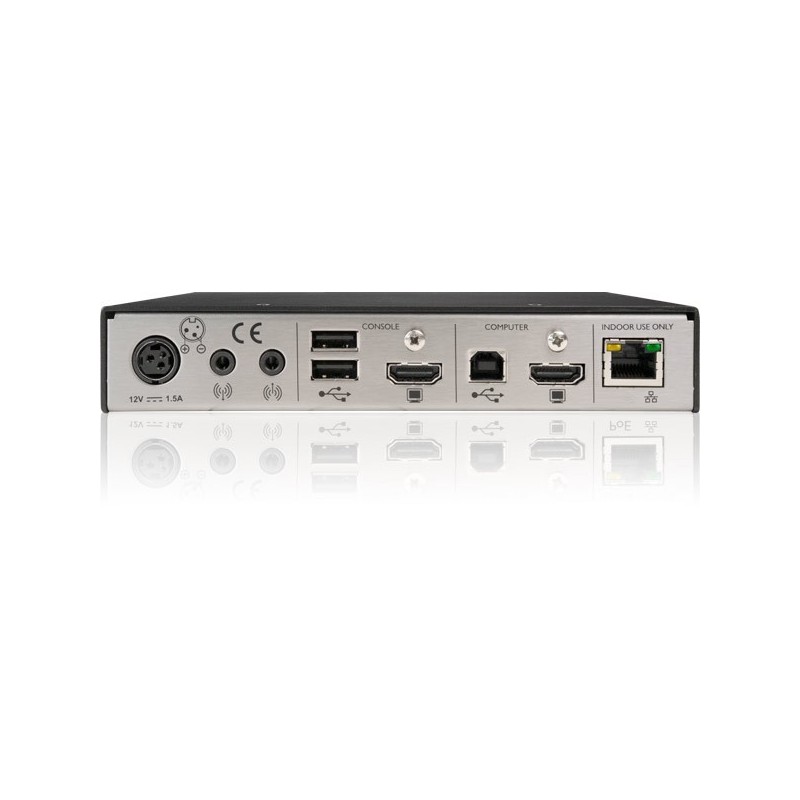

2 x HDMI (1 x til overførsel, 1 x lokal skærm)
2 x audio jackstik (In / out)
Forsynes via PoE eller ekstern PSU

Call +45 56 66 20 20 for price
Quantity
On the way in
LÆG I KURV
Product number REMOTE-IP-HDMI
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Dimensioner 31 x 169 x 120 mm (H x B x D)
Driftstemperatur 0°C ~ +40°C
Forsyning Via PoE eller medfølgende forsyning
Kabel 1 x HDMI (2m), 1 x USB A til B (2m), 1 x audio jack (2m)
Opløsning 1920 x 1200 @ 60Hz
OS SUPPORT Windows 7, 8, 8.1, 10, server 2012, server 2012 R2, server 2016, Mac OS
Strømforbrug 12VDc 18W
Weight 0,6 kg.

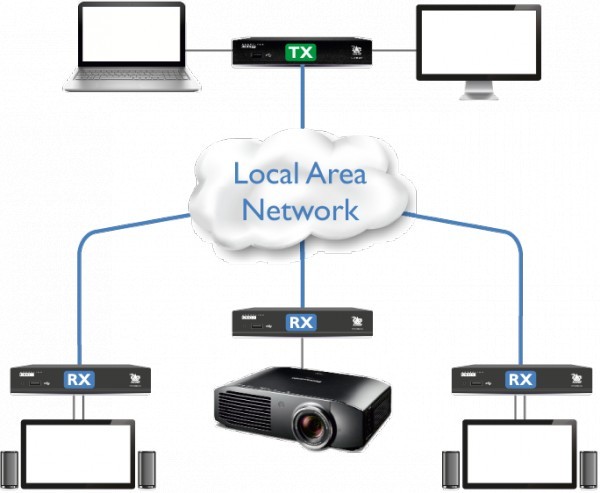

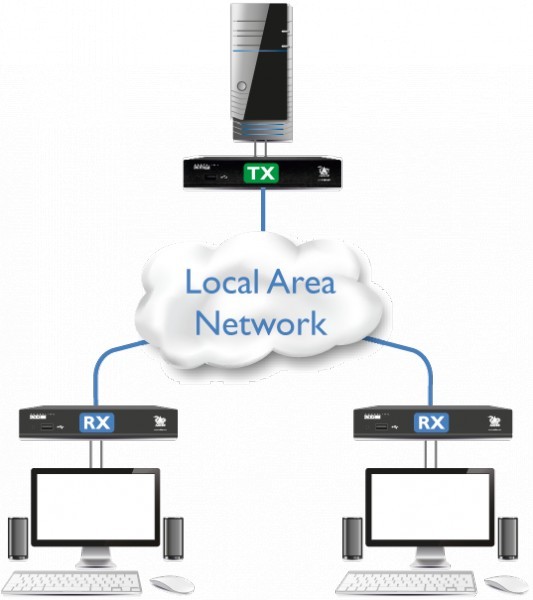

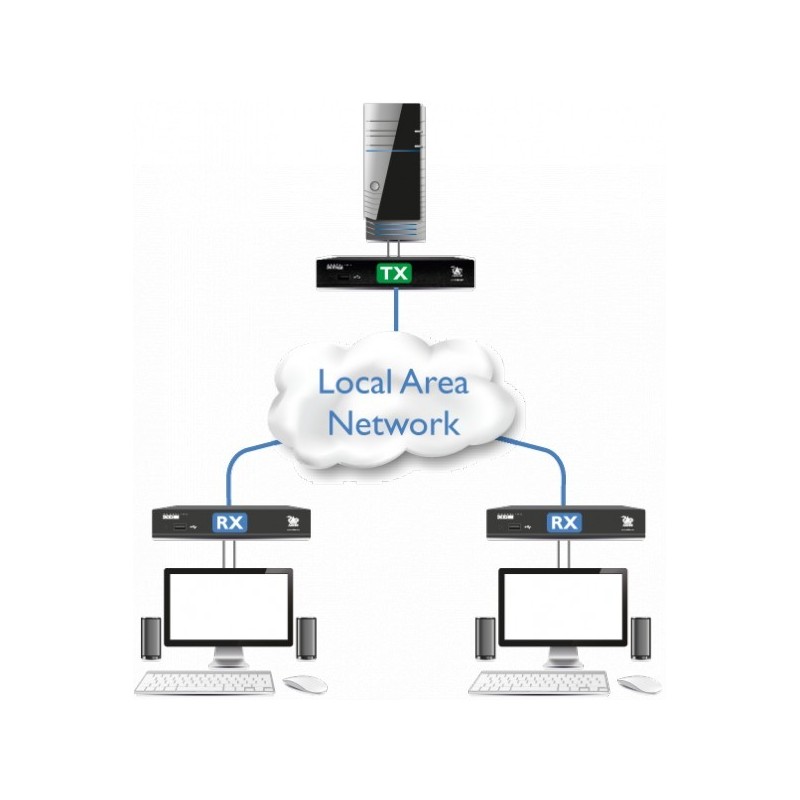

REMOTE-IP-HDMI kan bruges som både transmitter og receiver. Man kan bruge både flere transmitters til en receiver eller en transmitter til flere receivers. Såvel som muligheden for, at bruge en receiver til f.eks. en projektor.
